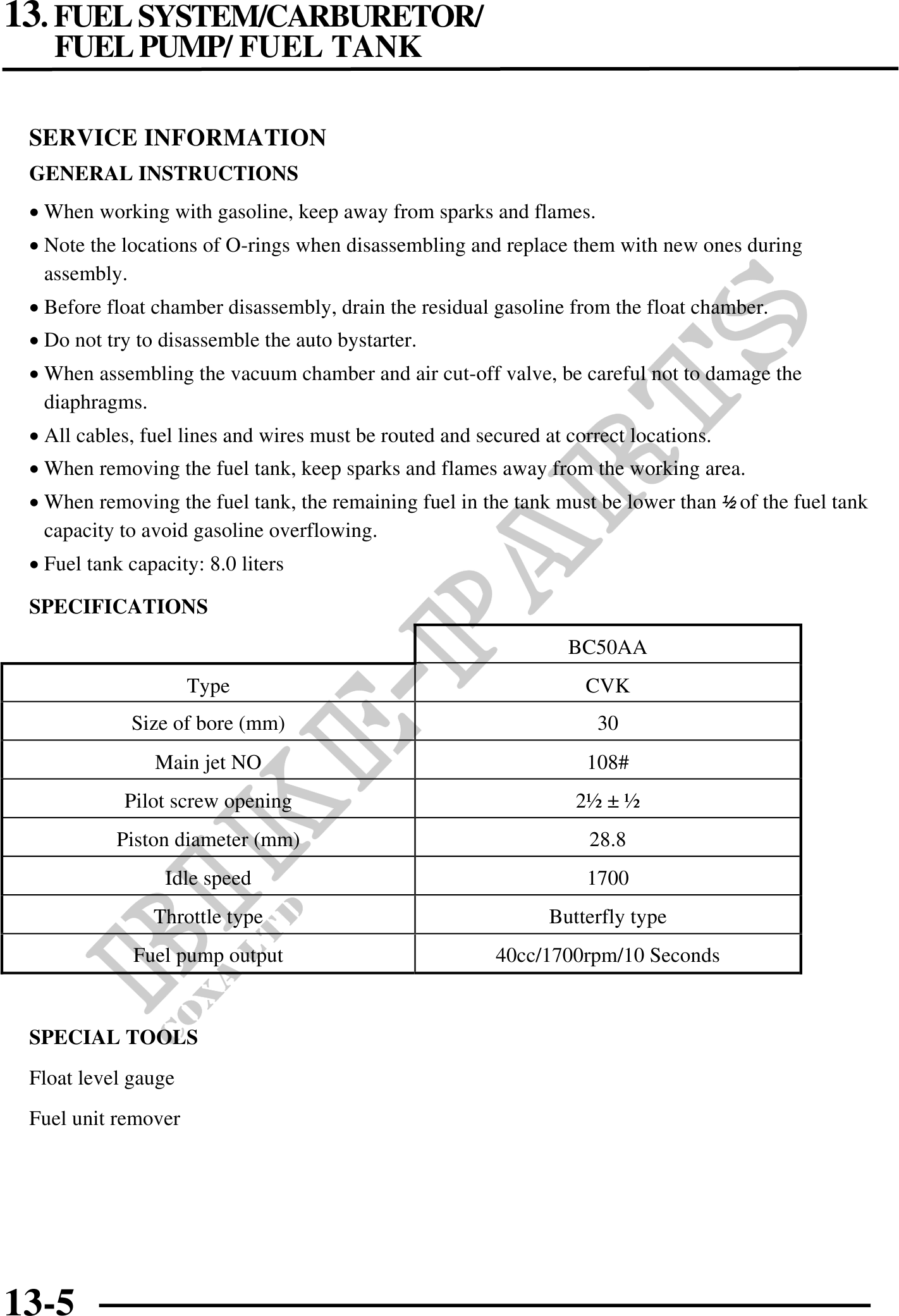

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · When working with gasoline, keep away from sparks and flames.
 · Note the locations of O-rings when disassembling and replace them with new ones during
   assembly.
 · Before float chamber disassembly, drain the residual gasoline from the float chamber.
 · Do not try to disassemble the auto bystarter.
 · When assembling the vacuum chamber and air cut-off valve, be careful not to damage the
   diaphragms.
 · All cables, fuel lines and wires must be routed and secured at correct locations.
 · When removing the fuel tank, keep sparks and flames away from the working area.
 · When removing the fuel tank, the remaining fuel in the tank must be lower than  of the fuel tank
   capacity to avoid gasoline overflowing.
 · Fuel tank capacity: 8.0 liters

 SPECIFICATIONS
                                                                  BC50AA
                     Type                                           CVK
             Size of bore (mm)                                        30
                Main jet NO                                         108#
            Pilot screw opening                                    2
           Piston diameter (mm)                                      28.8
                  Idle speed                                        1700
                Throttle type                                   Butterfly type
              Fuel pump output                           40cc/1700rpm/10 Seconds


 SPECIAL TOOLS
 Float level gauge
 Fuel unit remover




13-5
