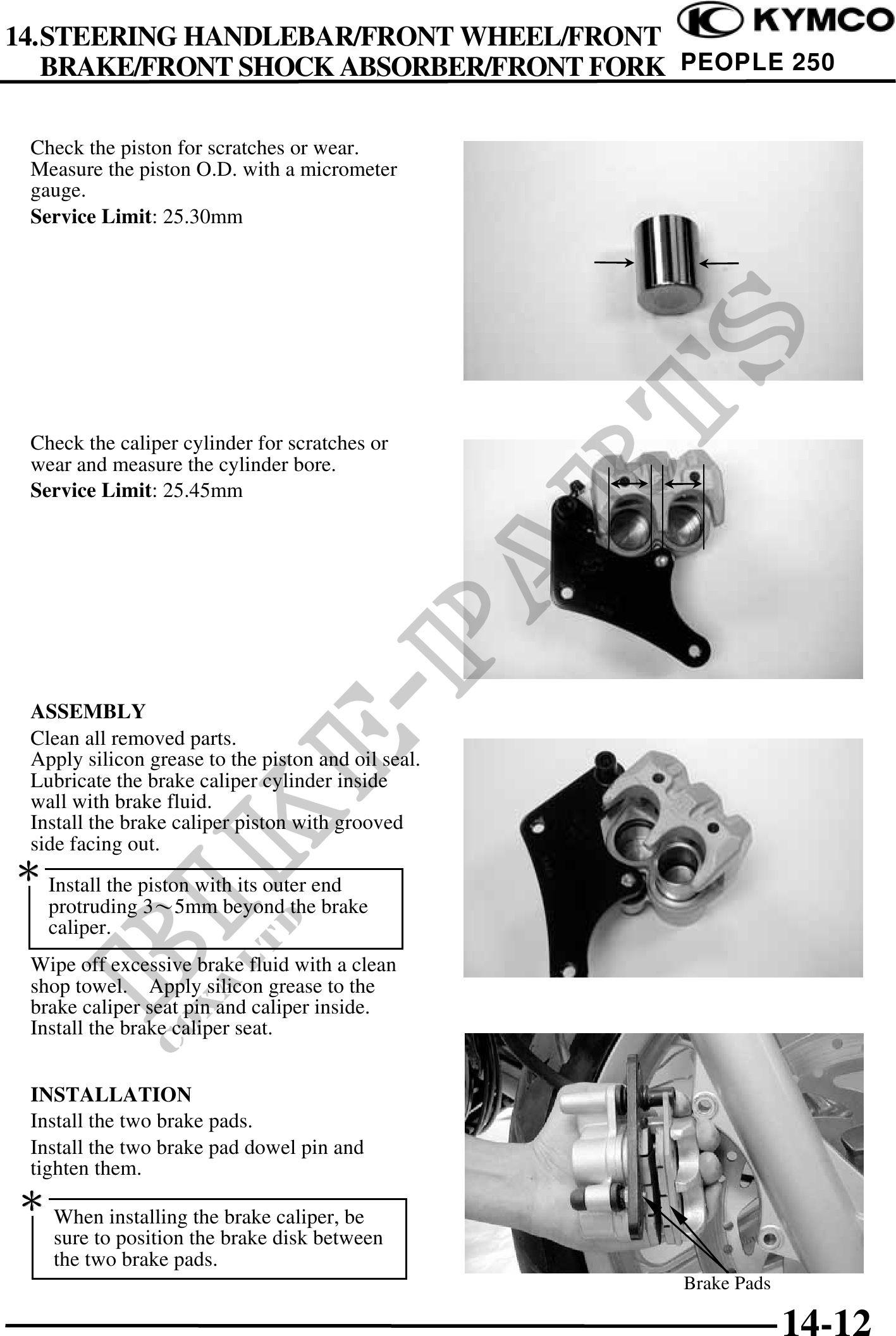

14.STEERING HANDLEBAR/FRONT WHEEL/FRONT
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK PEOPLE 250
Check the piston for scratches or wear.
Measure the piston O.D. with a micrometer
gauge.
Service Limit: 25.30mm
Check the caliper cylinder for scratches or
wear and measure the cylinder bore.
Service Limit: 25.45mm
ASSEMBLY
Clean all removed parts.
Apply silicon grease to the piston and oil seal.
Lubricate the brake caliper cylinder inside
wall with brake fluid.
Install the brake caliper piston with grooved
side facing out.
Install the piston with its outer end
protruding 35mm beyond the brake
caliper.
Wipe off excessive brake fluid with a clean
shop towel. Apply silicon grease to the
brake caliper seat pin and caliper inside.
Install the brake caliper seat.
INSTALLATION
Install the two brake pads.
Install the two brake pad dowel pin and
tighten them.
When installing the brake caliper, be
sure to position the brake disk between
the two brake pads.
Brake Pads
14-12
