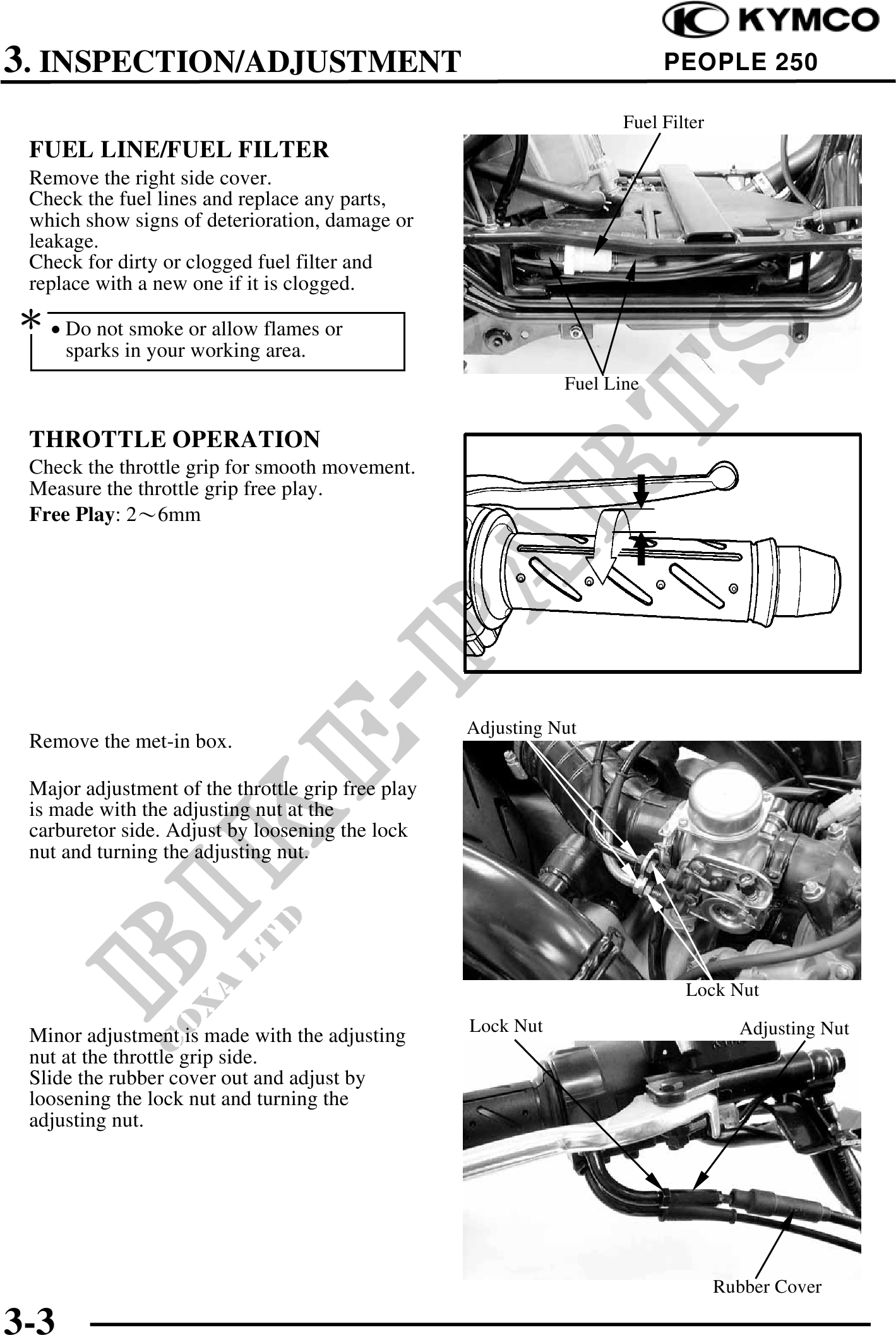

          3. INSPECTION/ADJUSTMENT                                                  PEOPLE 250

                                                                     Fuel Filter
 FUEL LINE/FUEL FILTER
 Remove the right side cover.
 Check the fuel lines and replace any parts,
 which show signs of deterioration, damage or
 leakage.
 Check for dirty or clogged fuel filter and
 replace with a new one if it is clogged.
 · Do not smoke or allow flames or
      sparks in your working area.
                                                              Fuel Line

 THROTTLE OPERATION
 Check the throttle grip for smooth movement.
 Measure the throttle grip free play.
 Free Play: 26mm




                                                   Adjusting Nut
 Remove the met-in box.

 Major adjustment of the throttle grip free play
 is made with the adjusting nut at the
 carburetor side. Adjust by loosening the lock
 nut and turning the adjusting nut.




                                                                             Lock Nut
                                                   Lock Nut                          Adjusting Nut
 Minor adjustment is made with the adjusting
 nut at the throttle grip side.
 Slide the rubber cover out and adjust by
 loosening the lock nut and turning the
 adjusting nut.




                                                                                   Rubber Cover

3-3
