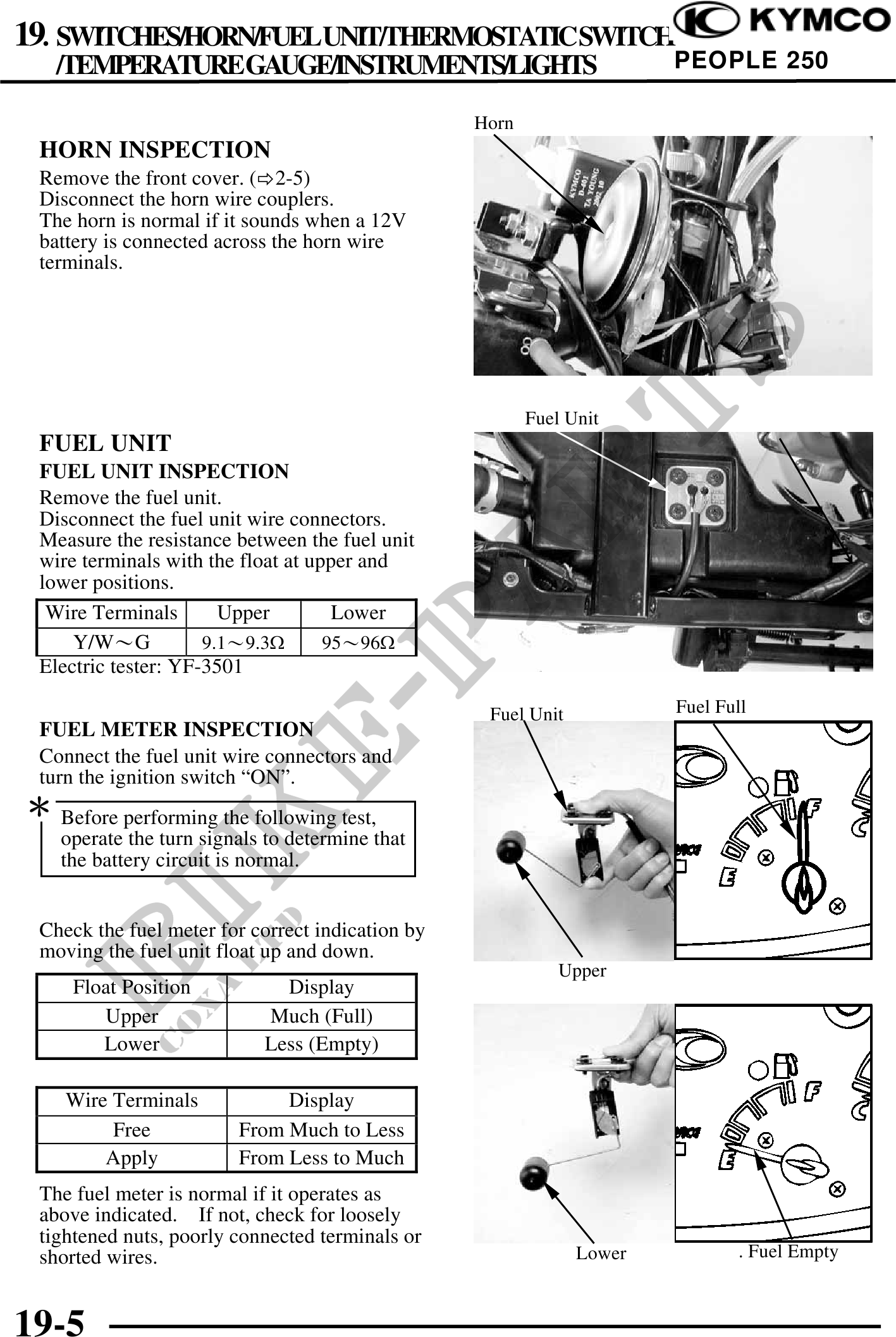

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS                                PEOPLE 250

                                                  Horn
 HORN INSPECTION
 Remove the front cover. ( 2-5)
 Disconnect the horn wire couplers.
 The horn is normal if it sounds when a 12V
 battery is connected across the horn wire
 terminals.




                                                         Fuel Unit
 FUEL UNIT
 FUEL UNIT INSPECTION
 Remove the fuel unit.
 Disconnect the fuel unit wire connectors.
 Measure the resistance between the fuel unit
 wire terminals with the float at upper and
 lower positions.
  Wire Terminals       Upper         Lower
     Y/WG            9.19.3         9596
 Electric tester: YF-3501

                                                   Fuel Unit           Fuel Full
 FUEL METER INSPECTION
 Connect the fuel unit wire connectors and
 turn the ignition switch "ON".
 Before performing the following test,
    operate the turn signals to determine that
    the battery circuit is normal.


 Check the fuel meter for correct indication by
 moving the fuel unit float up and down.
                                                             Upper
     Float Position           Display
        Upper               Much (Full)
        Lower               Less (Empty)

    Wire Terminals            Display
         Free            From Much to Less
        Apply            From Less to Much
 The fuel meter is normal if it operates as
 above indicated. If not, check for loosely
 tightened nuts, poorly connected terminals or
 shorted wires.                                                Lower           . Fuel Empty



19-5
