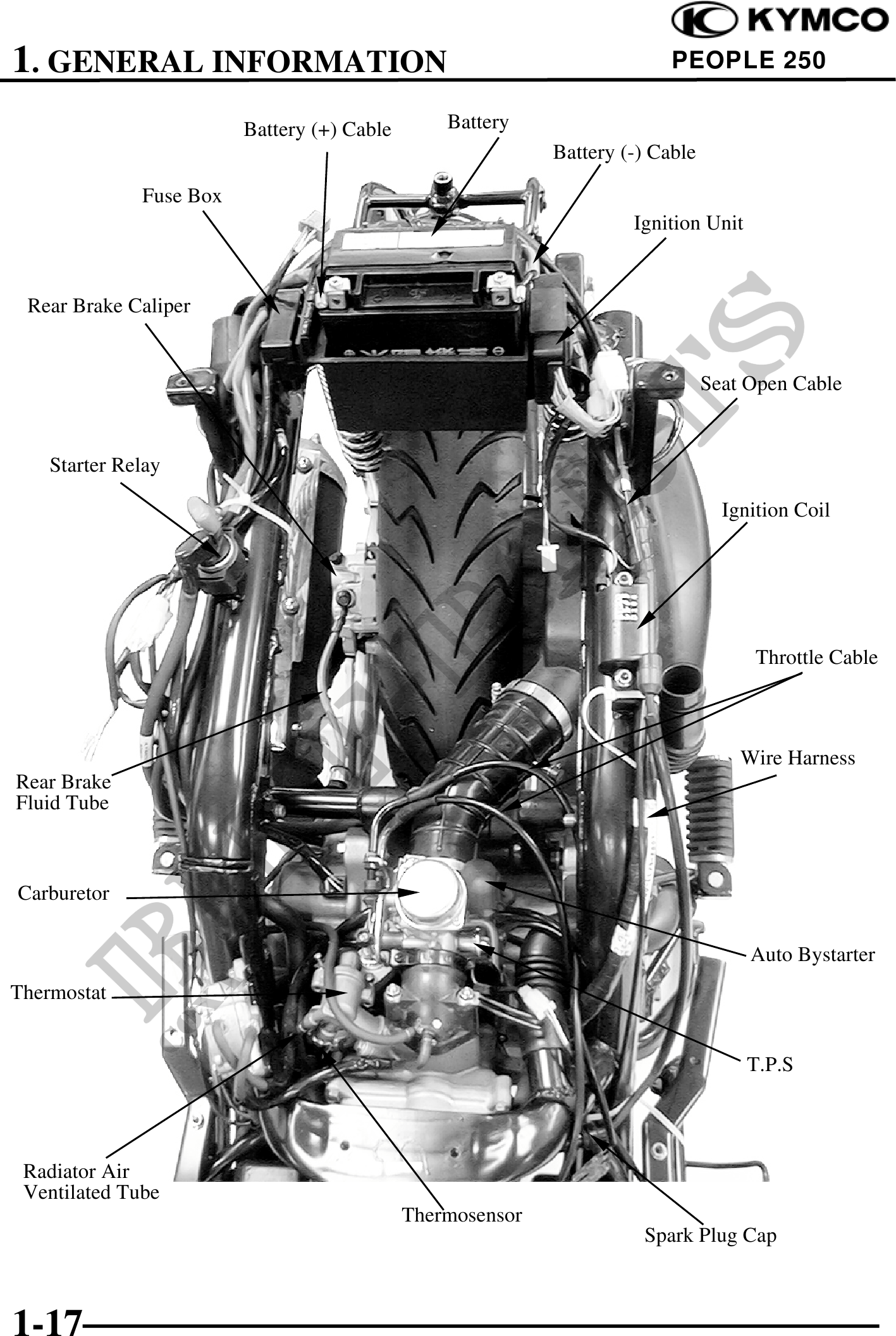

          1. GENERAL INFORMATION                                                    PEOPLE 250

                         Battery (+) Cable       Battery
                                                            Battery (-) Cable

              Fuse Box
                                                                     Ignition Unit


 Rear Brake Caliper


                                                                                Seat Open Cable


    Starter Relay

                                                                                  Ignition Coil




                                                                                      Throttle Cable



                                                                                    Wire Harness
Rear Brake
Fluid Tube



Carburetor

                                                                                     Auto Bystarter
Thermostat


                                                                                     T.P.S




 Radiator Air
 Ventilated Tube
                                             Thermosensor
                                                                      Spark Plug Cap



1-17
