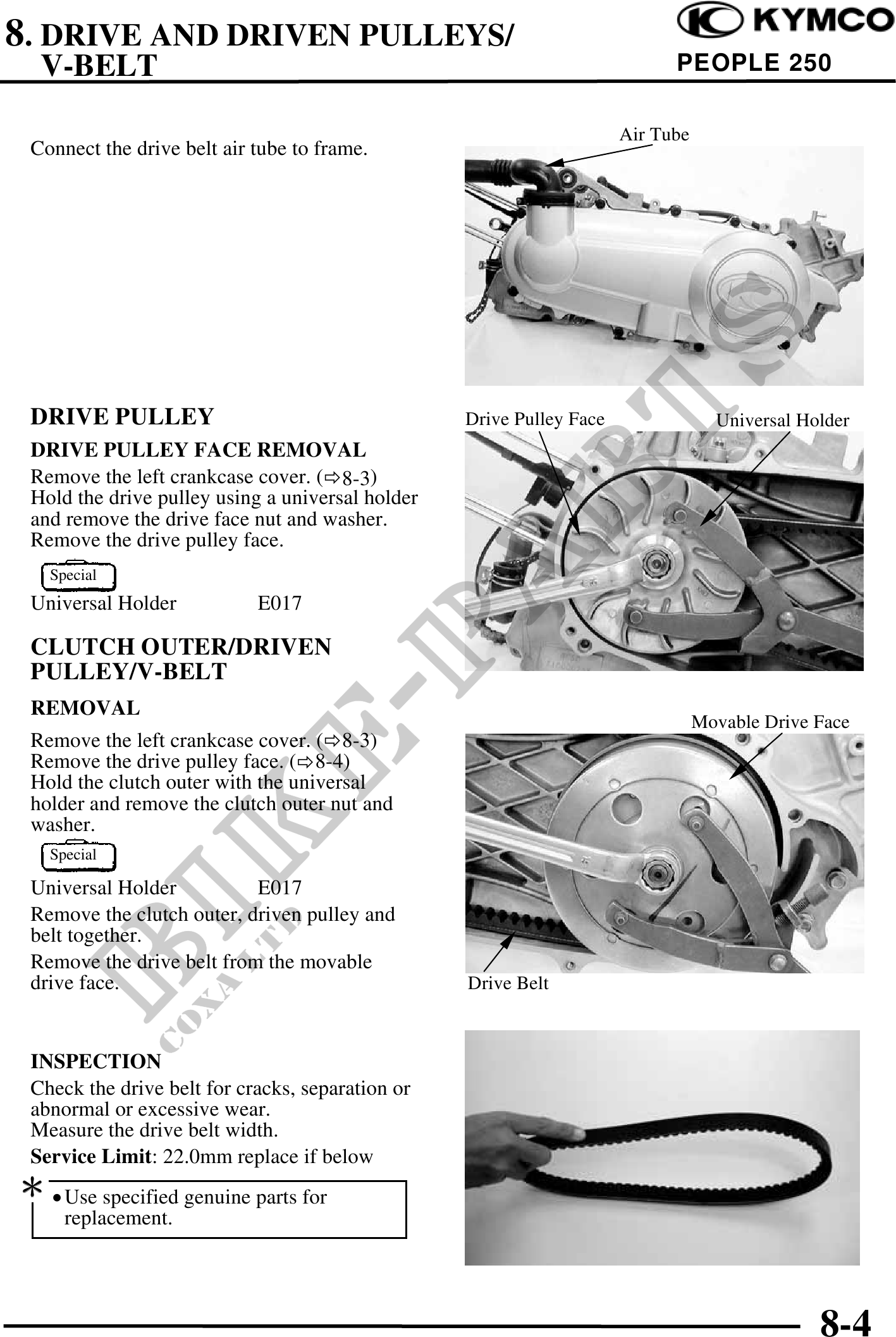

          8. DRIVE AND DRIVEN PULLEYS/
  V-BELT                                                                    PEOPLE 250

                                                                      Air Tube
 Connect the drive belt air tube to frame.




 DRIVE PULLEY                                     Drive Pulley Face                Universal Holder
 DRIVE PULLEY FACE REMOVAL
 Remove the left crankcase cover. ( 8-3)
 Hold the drive pulley using a universal holder
 and remove the drive face nut and washer.
 Remove the drive pulley face.
   Special
 Universal Holder           E017

 CLUTCH OUTER/DRIVEN
 PULLEY/V-BELT
 REMOVAL
                                                                                 Movable Drive Face
 Remove the left crankcase cover. ( 8-3)
 Remove the drive pulley face. ( 8-4)
 Hold the clutch outer with the universal
 holder and remove the clutch outer nut and
 washer.
   Special

 Universal Holder          E017
 Remove the clutch outer, driven pulley and
 belt together.
 Remove the drive belt from the movable
 drive face.                                      Drive Belt



 INSPECTION
 Check the drive belt for cracks, separation or
 abnormal or excessive wear.
 Measure the drive belt width.
 Service Limit: 22.0mm replace if below
 · Use specified genuine parts for
     replacement.




                                                                                               8-4
