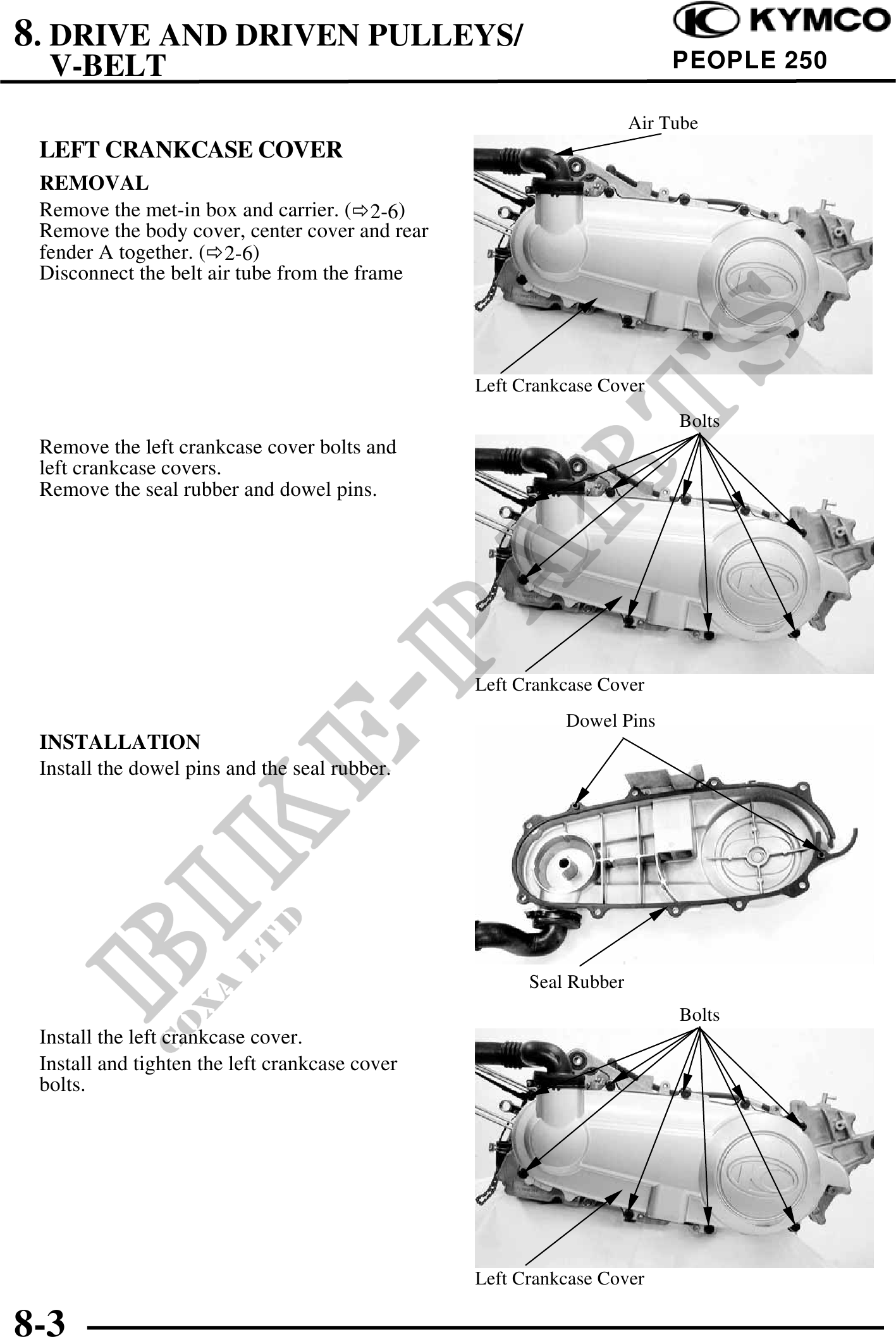

          8. DRIVE AND DRIVEN PULLEYS/
  V-BELT                                                                 PEOPLE 250

                                                                    Air Tube
 LEFT CRANKCASE COVER
 REMOVAL
 Remove the met-in box and carrier. ( 2-6)
 Remove the body cover, center cover and rear
 fender A together. ( 2-6)
 Disconnect the belt air tube from the frame




                                                Left Crankcase Cover
                                                                         Bolts
 Remove the left crankcase cover bolts and
 left crankcase covers.
 Remove the seal rubber and dowel pins.




                                                Left Crankcase Cover
                                                          Dowel Pins
 INSTALLATION
 Install the dowel pins and the seal rubber.




                                                      Seal Rubber
                                                                         Bolts
 Install the left crankcase cover.
 Install and tighten the left crankcase cover
 bolts.




                                                Left Crankcase Cover

8-3
