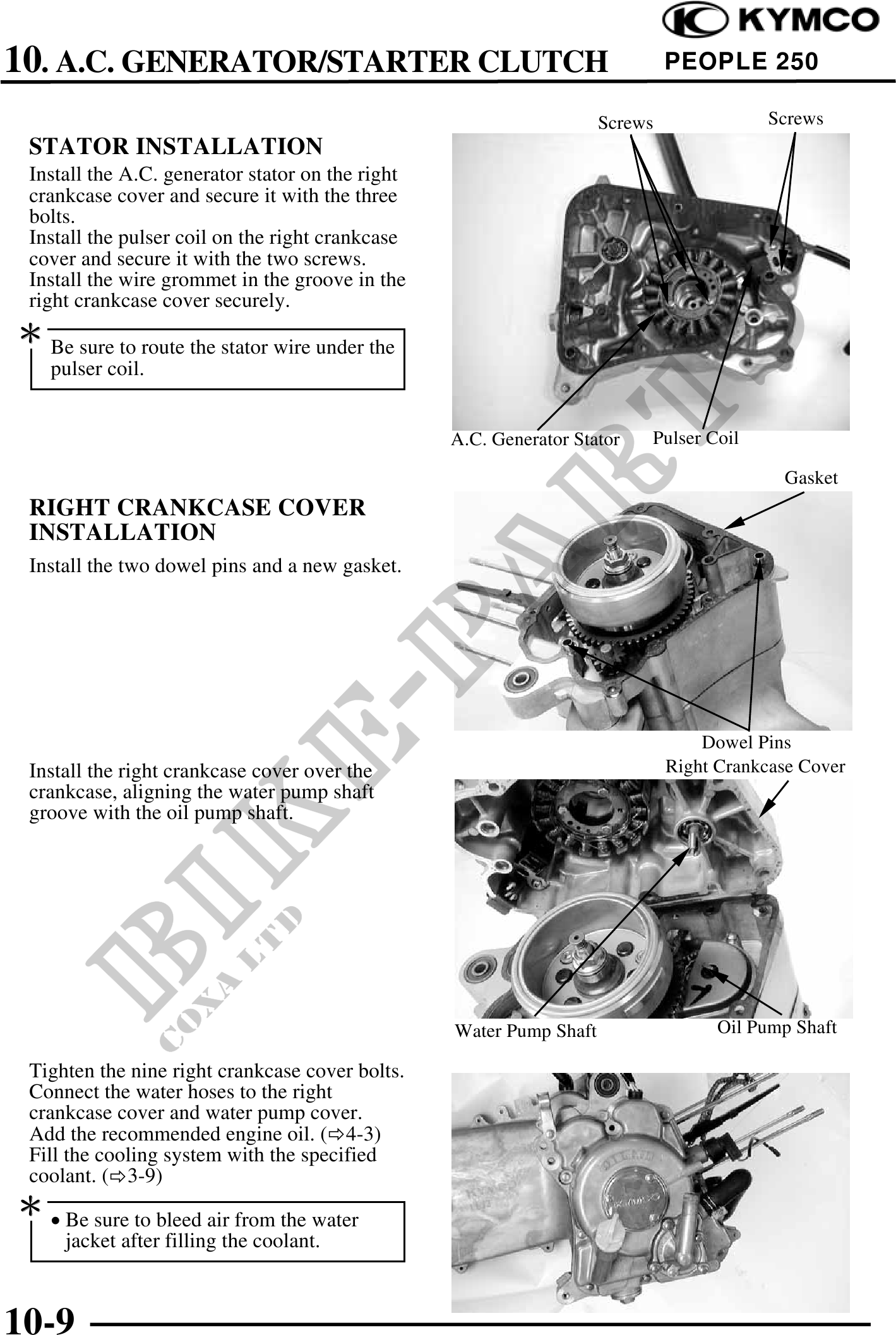

10. A.C. GENERATOR/STARTER CLUTCH PEOPLE 250
Screws Screws
STATOR INSTALLATION
Install the A.C. generator stator on the right
crankcase cover and secure it with the three
bolts.
Install the pulser coil on the right crankcase
cover and secure it with the two screws.
Install the wire grommet in the groove in the
right crankcase cover securely.
Be sure to route the stator wire under the
pulser coil.
A.C. Generator Stator Pulser Coil
Gasket
RIGHT CRANKCASE COVER
INSTALLATION
Install the two dowel pins and a new gasket.
Dowel Pins
Install the right crankcase cover over the Right Crankcase Cover
crankcase, aligning the water pump shaft
groove with the oil pump shaft.
Water Pump Shaft Oil Pump Shaft
Tighten the nine right crankcase cover bolts.
Connect the water hoses to the right
crankcase cover and water pump cover.
Add the recommended engine oil. ( 4-3)
Fill the cooling system with the specified
coolant. ( 3-9)
· Be sure to bleed air from the water
jacket after filling the coolant.
10-9
