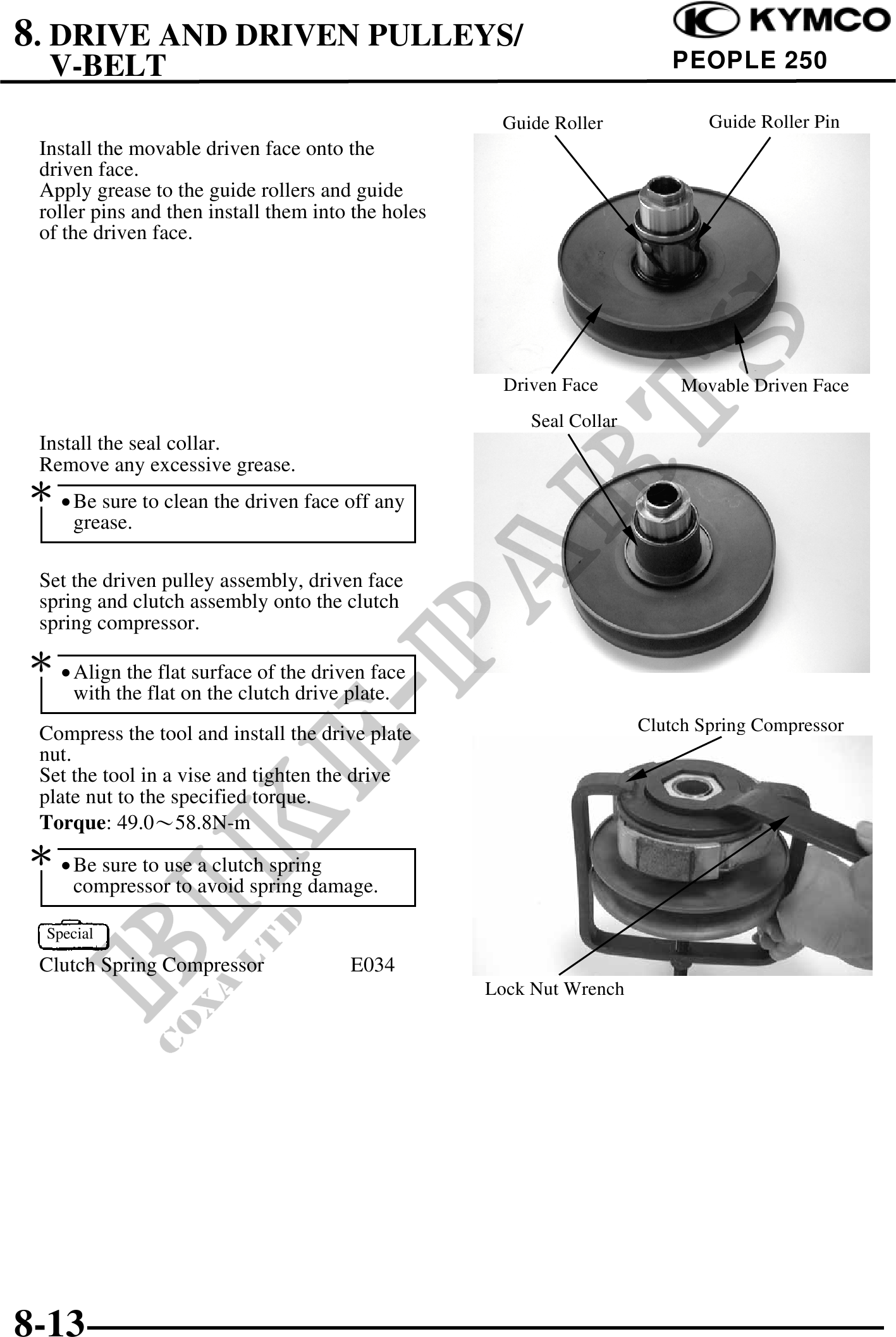

          8. DRIVE AND DRIVEN PULLEYS/
  V-BELT                                                                  PEOPLE 250

                                                     Guide Roller             Guide Roller Pin
 Install the movable driven face onto the
 driven face.
 Apply grease to the guide rollers and guide
 roller pins and then install them into the holes
 of the driven face.




                                                     Driven Face           Movable Driven Face
                                                        Seal Collar
 Install the seal collar.
 Remove any excessive grease.
 · Be sure to clean the driven face off any
     grease.

 Set the driven pulley assembly, driven face
 spring and clutch assembly onto the clutch
 spring compressor.
 · Align the flat surface of the driven face
     with the flat on the clutch drive plate.
 Compress the tool and install the drive plate                        Clutch Spring Compressor
 nut.
 Set the tool in a vise and tighten the drive
 plate nut to the specified torque.
 Torque: 49.058.8N-m
 · Be sure to use a clutch spring
     compressor to avoid spring damage.

  Special

 Clutch Spring Compressor               E034
                                                    Lock Nut Wrench




8-13
