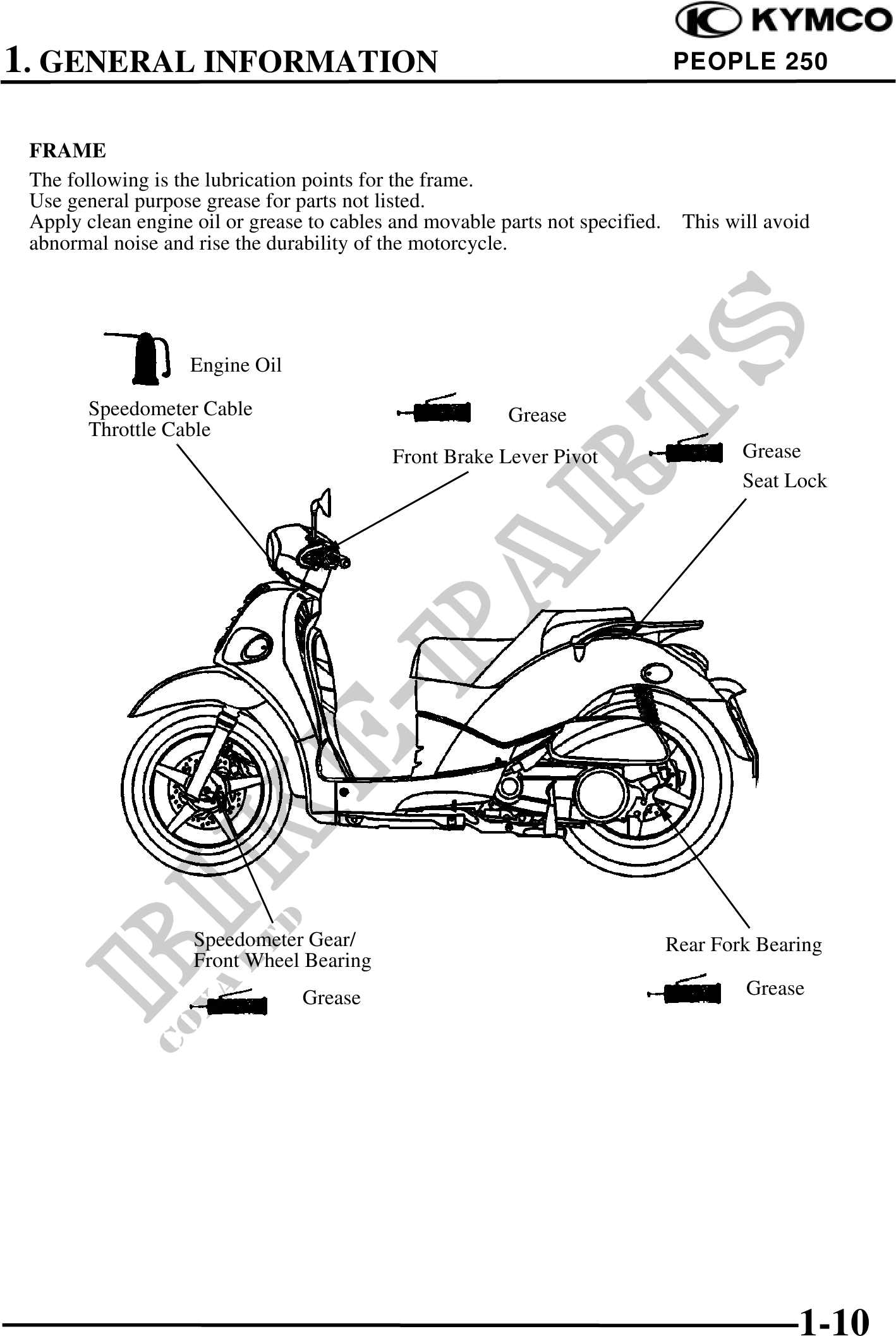

          1. GENERAL INFORMATION                                                         PEOPLE 250


 FRAME
 The following is the lubrication points for the frame.
 Use general purpose grease for parts not listed.
 Apply clean engine oil or grease to cables and movable parts not specified.    This will avoid
 abnormal noise and rise the durability of the motorcycle.




                    Engine Oil

        Speedometer Cable                                Grease
        Throttle Cable
                                            Front Brake Lever Pivot                    Grease
                                                                                       Seat Lock




                    Speedometer Gear/                                          Rear Fork Bearing
                    Front Wheel Bearing
                                 Grease                                                Grease




                                                                                             1-10
