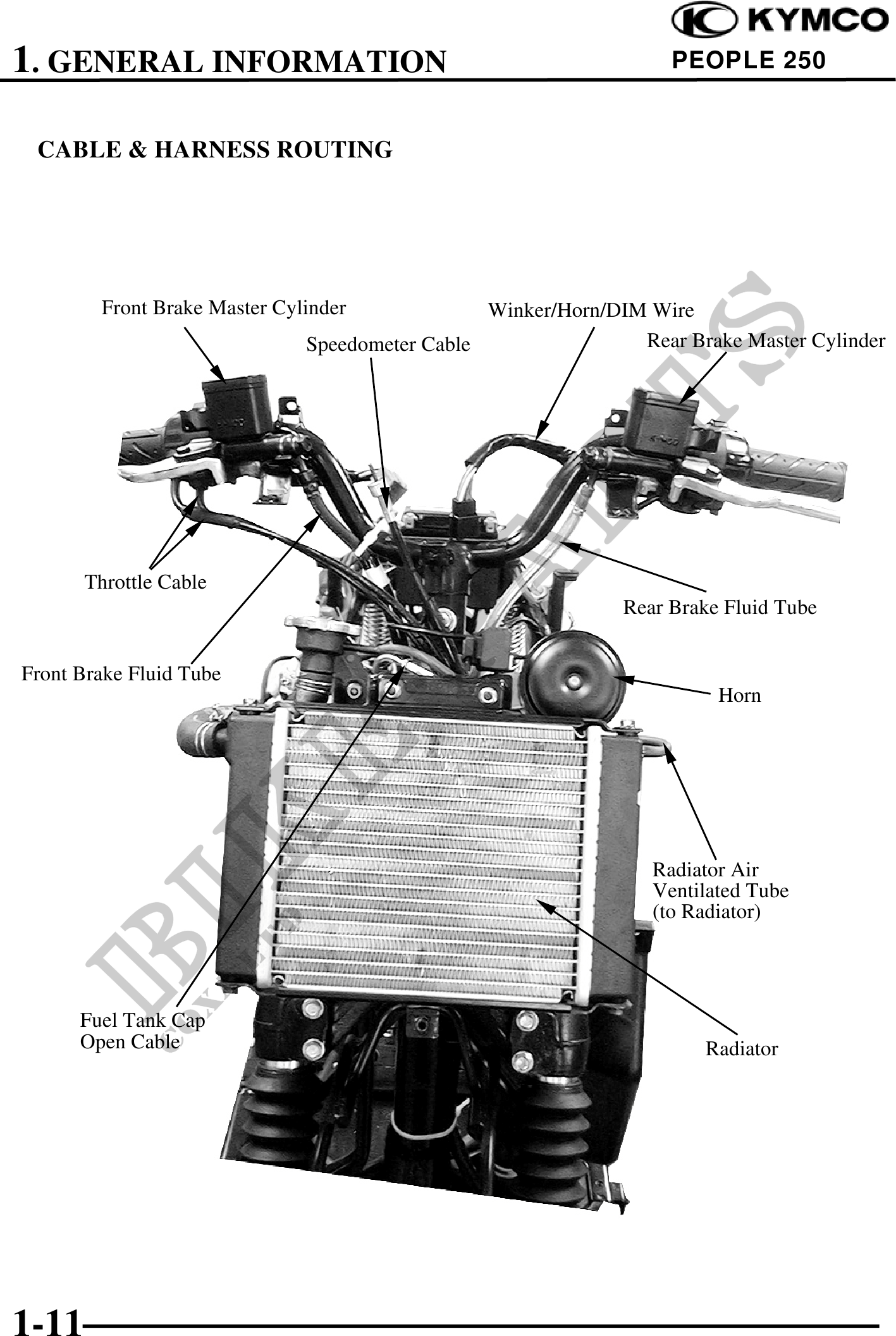

          1. GENERAL INFORMATION                                             PEOPLE 250


 CABLE & HARNESS ROUTING




        Front Brake Master Cylinder             Winker/Horn/DIM Wire
                              Speedometer Cable                Rear Brake Master Cylinder




       Throttle Cable
                                                              Rear Brake Fluid Tube


Front Brake Fluid Tube
                                                                        Horn




                                                                 Radiator Air
                                                                 Ventilated Tube
                                                                 (to Radiator)




      Fuel Tank Cap
      Open Cable                                                      Radiator




1-11
