          1. GENERAL INFORMATION                                          PEOPLE 250

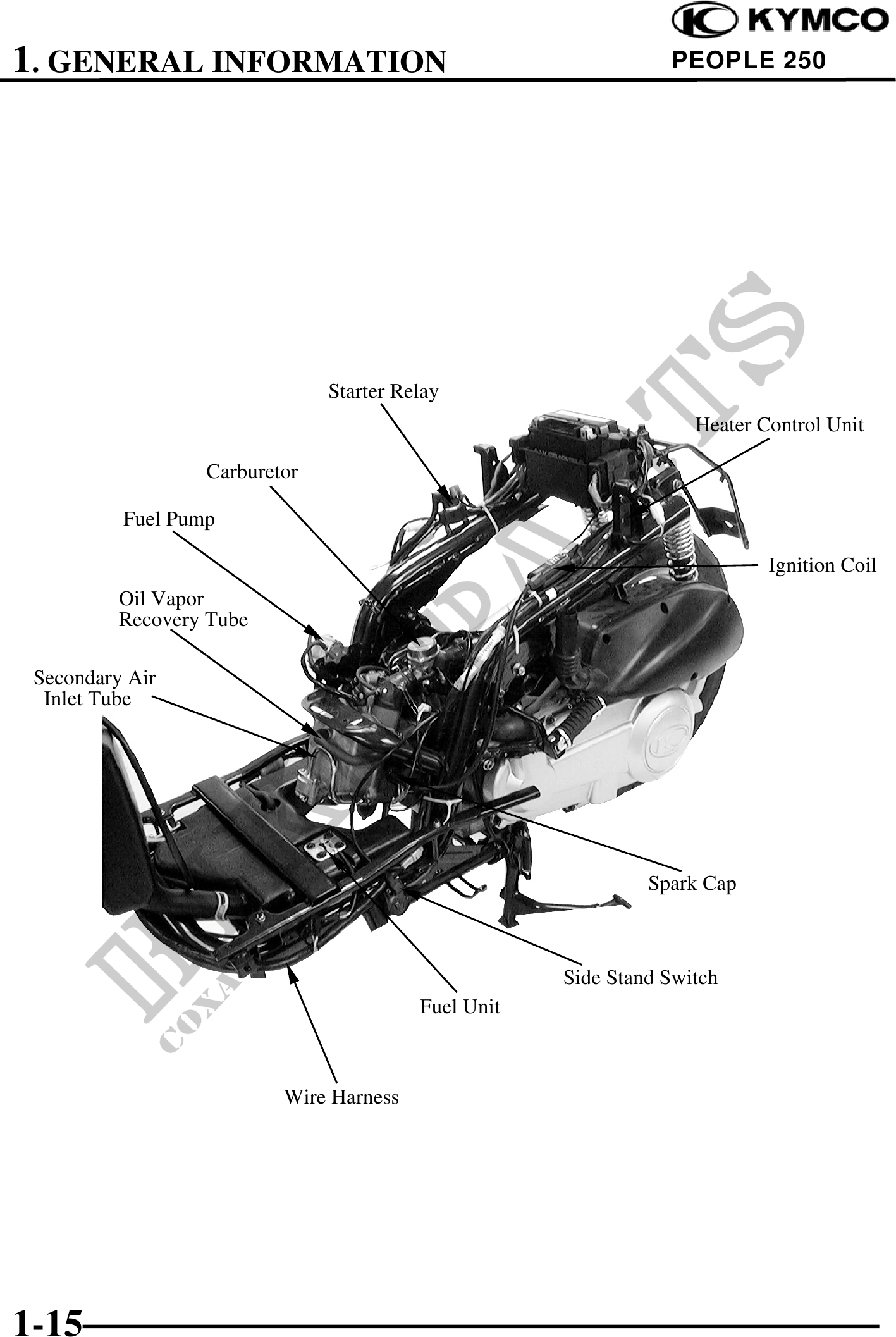

                               Starter Relay
                                                                   Heater Control Unit

                  Carburetor

          Fuel Pump

                                                                           Ignition Coil
          Oil Vapor
          Recovery Tube

 Secondary Air
  Inlet Tube




                                                              Spark Cap



                                                     Side Stand Switch
                                         Fuel Unit



                          Wire Harness




1-15
