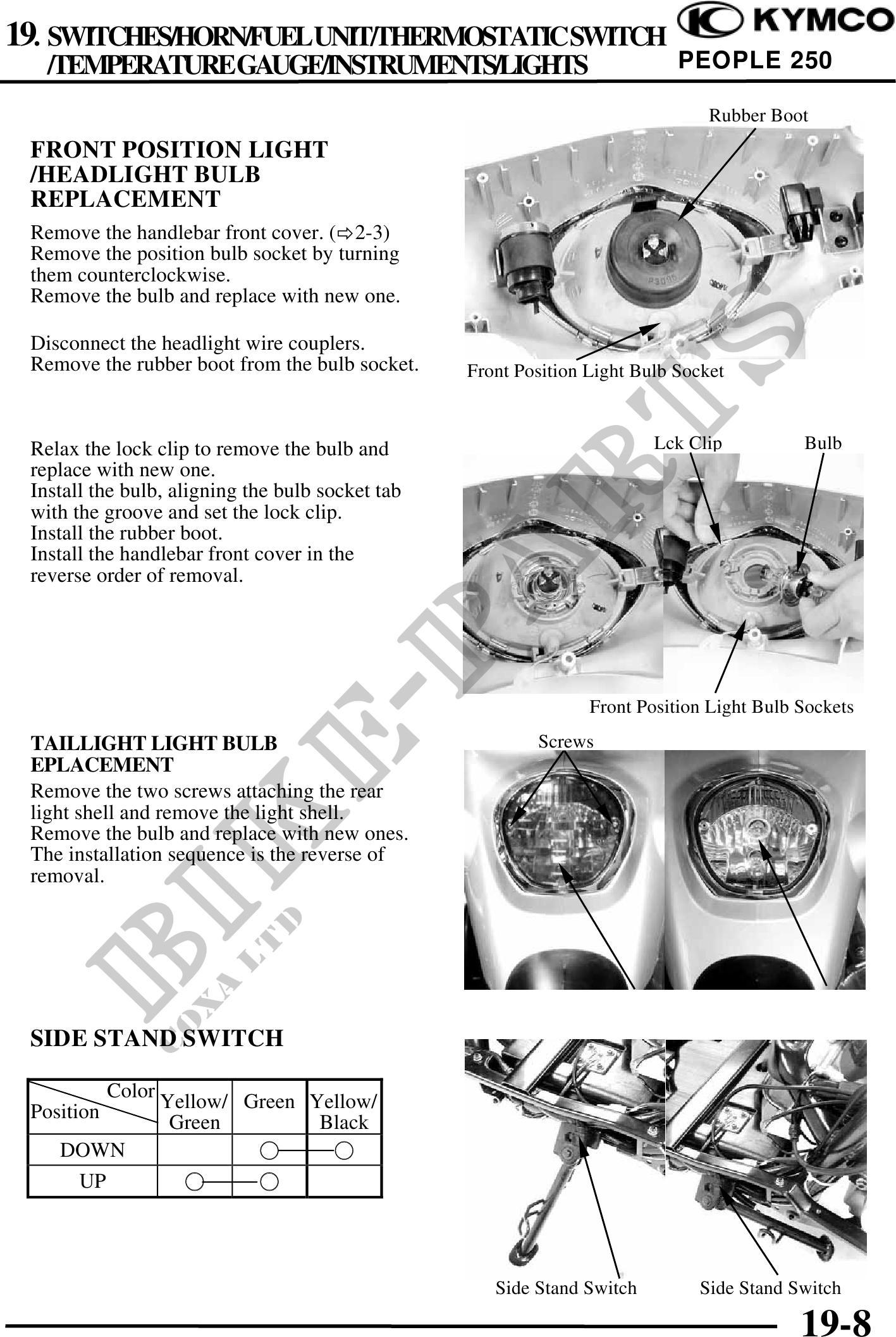

people 250 Manuel atelier : Page 228

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS                                     PEOPLE 250

                                                                                Rubber Boot
 FRONT POSITION LIGHT
 /HEADLIGHT BULB
 REPLACEMENT
 Remove the handlebar front cover. ( 2-3)
 Remove the position bulb socket by turning
 them counterclockwise.
 Remove the bulb and replace with new one.

 Disconnect the headlight wire couplers.
 Remove the rubber boot from the bulb socket.     Front Position Light Bulb Socket



 Relax the lock clip to remove the bulb and                              Lck Clip          Bulb
 replace with new one.
 Install the bulb, aligning the bulb socket tab
 with the groove and set the lock clip.
 Install the rubber boot.
 Install the handlebar front cover in the
 reverse order of removal.




                                                                 Front Position Light Bulb Sockets
 TAILLIGHT LIGHT BULB                                     Screws
 EPLACEMENT
 Remove the two screws attaching the rear
 light shell and remove the light shell.
 Remove the bulb and replace with new ones.
 The installation sequence is the reverse of
 removal.




 SIDE STAND SWITCH

        Color Yellow/ Green Yellow/
 Position      Green         Black
    DOWN
     UP




                                                     Side Stand Switch        Side Stand Switch

                                                                                           19-8
