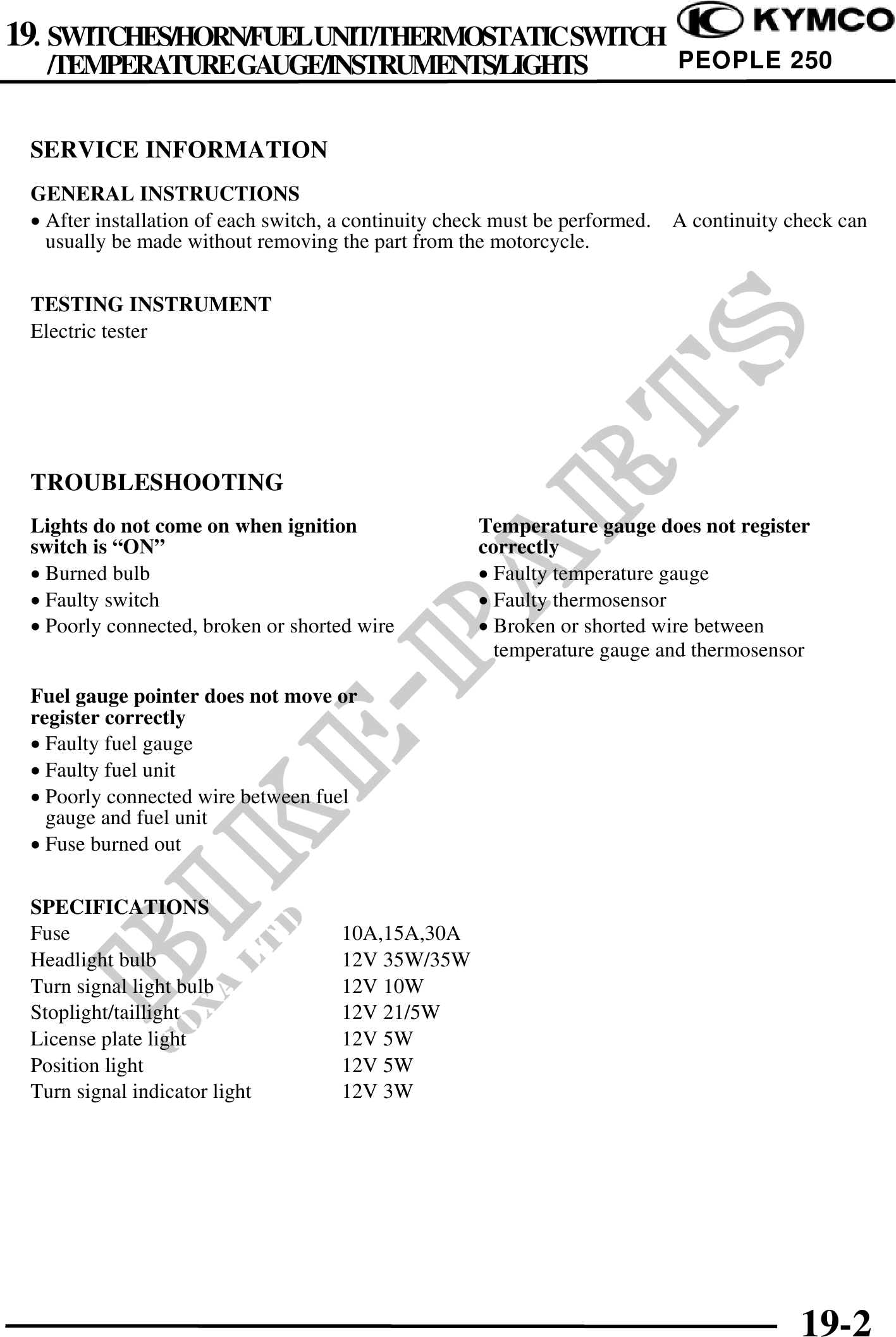

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS                                       PEOPLE 250


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · After installation of each switch, a continuity check must be performed.   A continuity check can
   usually be made without removing the part from the motorcycle.


 TESTING INSTRUMENT
 Electric tester




 TROUBLESHOOTING
 Lights do not come on when ignition                  Temperature gauge does not register
 switch is "ON"                                       correctly
 · Burned bulb                                        · Faulty temperature gauge
 · Faulty switch                                      · Faulty thermosensor
 · Poorly connected, broken or shorted wire           · Broken or shorted wire between
                                                        temperature gauge and thermosensor

 Fuel gauge pointer does not move or
 register correctly
 · Faulty fuel gauge
 · Faulty fuel unit
 · Poorly connected wire between fuel
   gauge and fuel unit
 · Fuse burned out

 SPECIFICATIONS
 Fuse                                 10A,15A,30A
 Headlight bulb                       12V 35W/35W
 Turn signal light bulb               12V 10W
 Stoplight/taillight                  12V 21/5W
 License plate light                  12V 5W
 Position light                       12V 5W
 Turn signal indicator light          12V 3W




                                                                                            19-2
