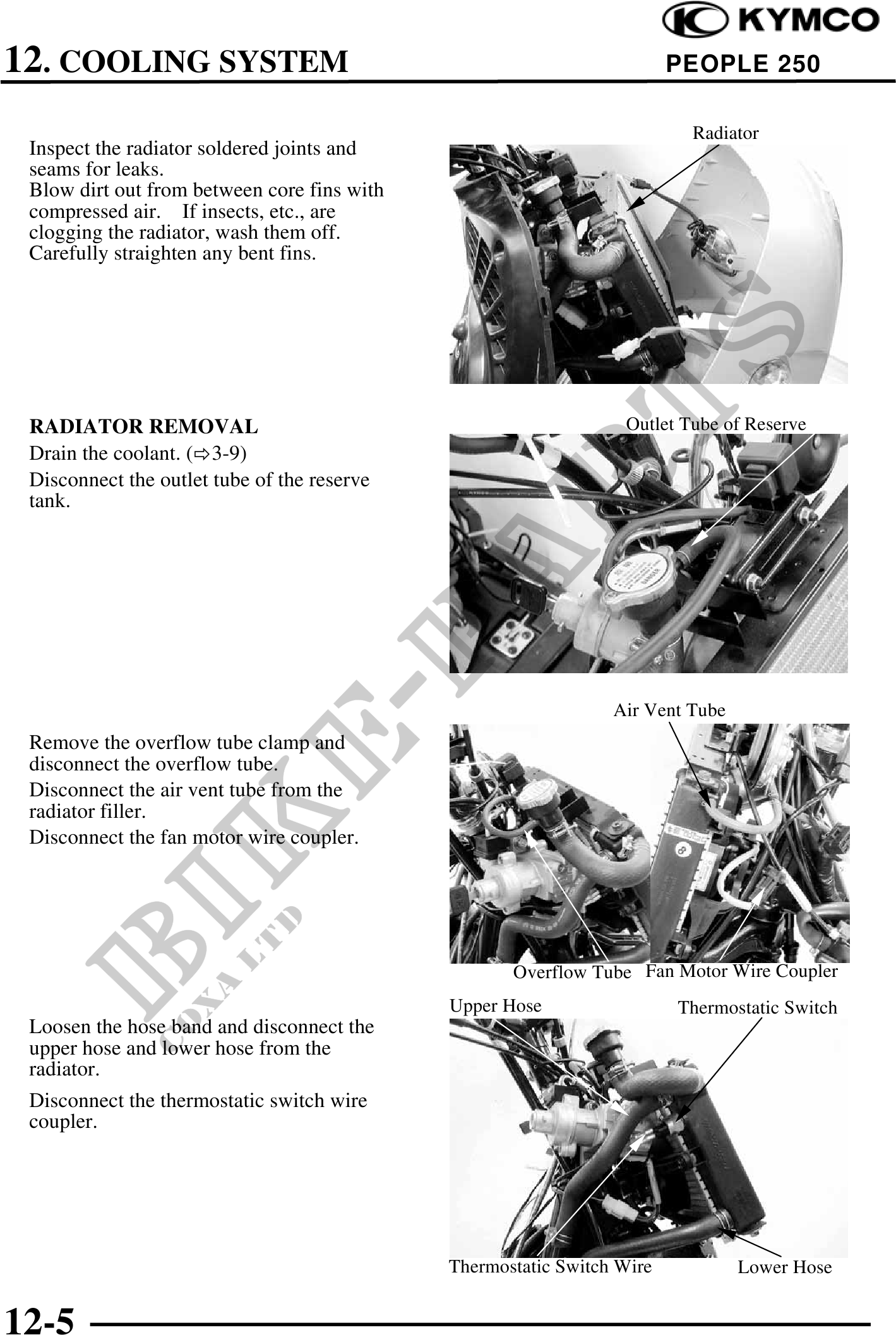

12. COOLING SYSTEM PEOPLE 250
Radiator
Inspect the radiator soldered joints and
seams for leaks.
Blow dirt out from between core fins with
compressed air. If insects, etc., are
clogging the radiator, wash them off.
Carefully straighten any bent fins.
RADIATOR REMOVAL Outlet Tube of Reserve
Drain the coolant. ( 3-9)
Disconnect the outlet tube of the reserve
tank.
Air Vent Tube
Remove the overflow tube clamp and
disconnect the overflow tube.
Disconnect the air vent tube from the
radiator filler.
Disconnect the fan motor wire coupler.
Overflow Tube Fan Motor Wire Coupler
Upper Hose Thermostatic Switch
Loosen the hose band and disconnect the
upper hose and lower hose from the
radiator.
Disconnect the thermostatic switch wire
coupler.
Thermostatic Switch Wire Lower Hose
12-5
