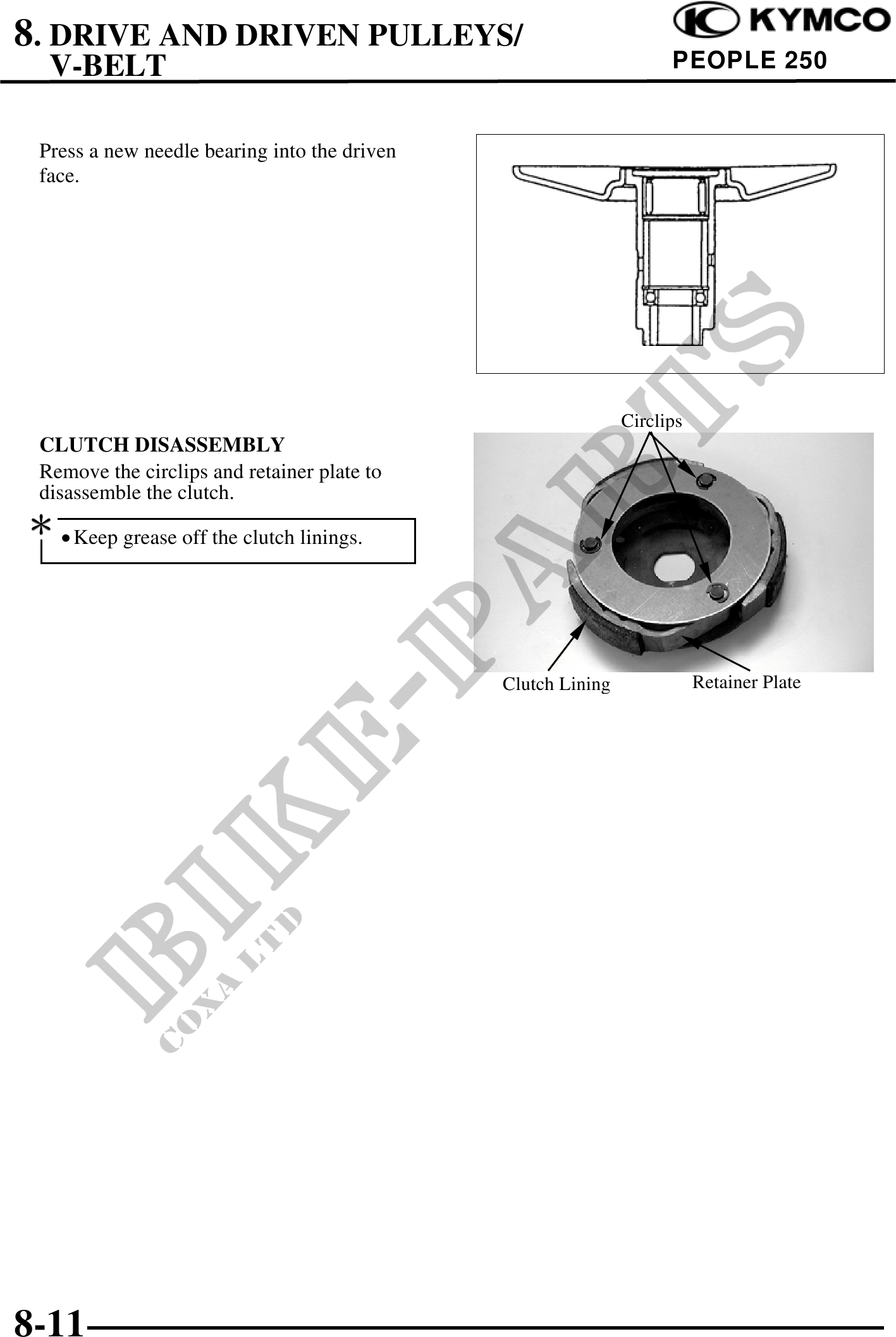

          8. DRIVE AND DRIVEN PULLEYS/
  V-BELT                                                            PEOPLE 250


 Press a new needle bearing into the driven
 face.




                                                              Circlips
 CLUTCH DISASSEMBLY
 Remove the circlips and retainer plate to
 disassemble the clutch.
 · Keep grease off the clutch linings.



                                              Clutch Lining              Retainer Plate




8-11
