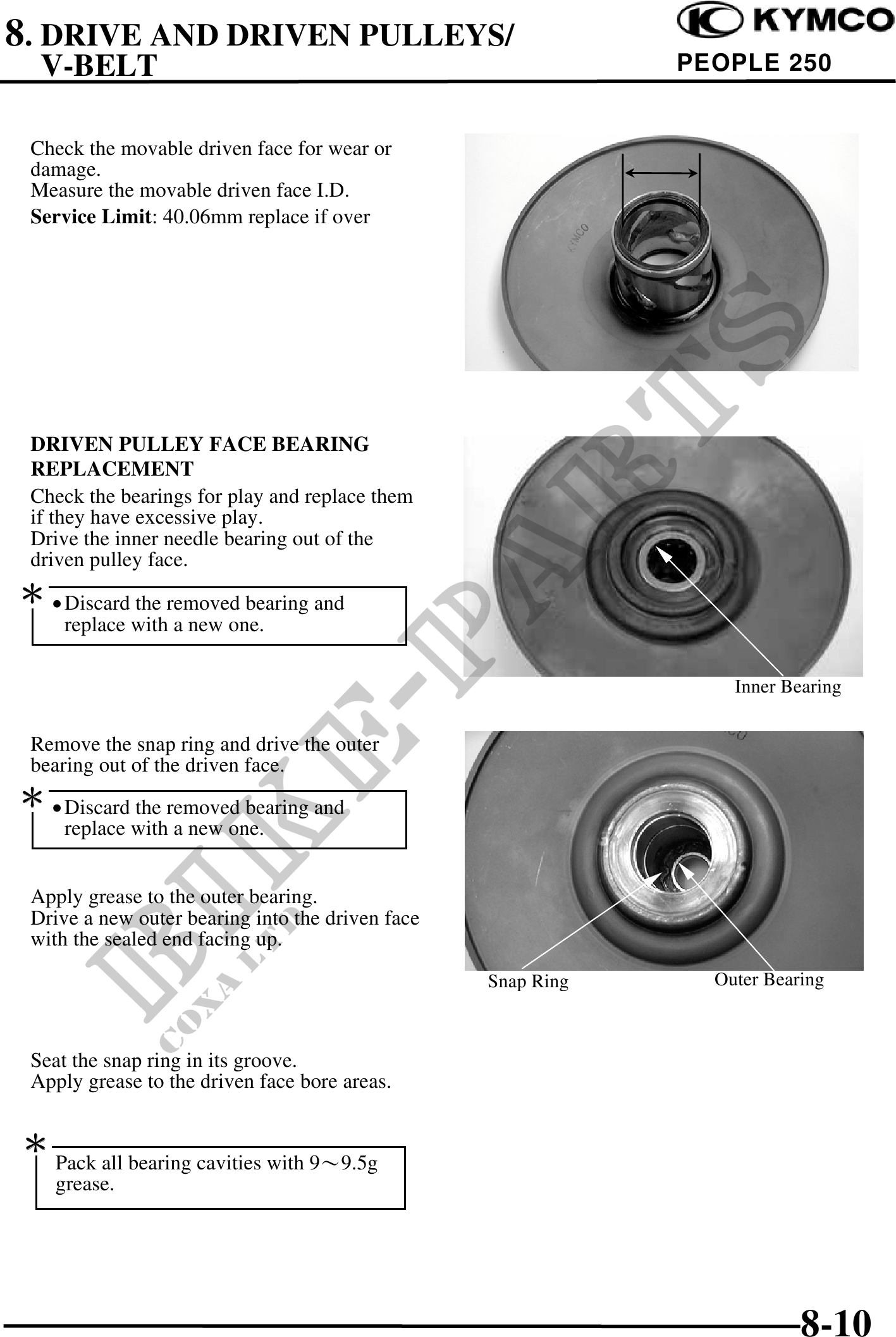

8. DRIVE AND DRIVEN PULLEYS/
V-BELT PEOPLE 250
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit: 40.06mm replace if over
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Check the bearings for play and replace them
if they have excessive play.
Drive the inner needle bearing out of the
driven pulley face.
· Discard the removed bearing and
replace with a new one.
Inner Bearing
Remove the snap ring and drive the outer
bearing out of the driven face.
· Discard the removed bearing and
replace with a new one.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Snap Ring Outer Bearing
Seat the snap ring in its groove.
Apply grease to the driven face bore areas.
Pack all bearing cavities with 99.5g
grease.
