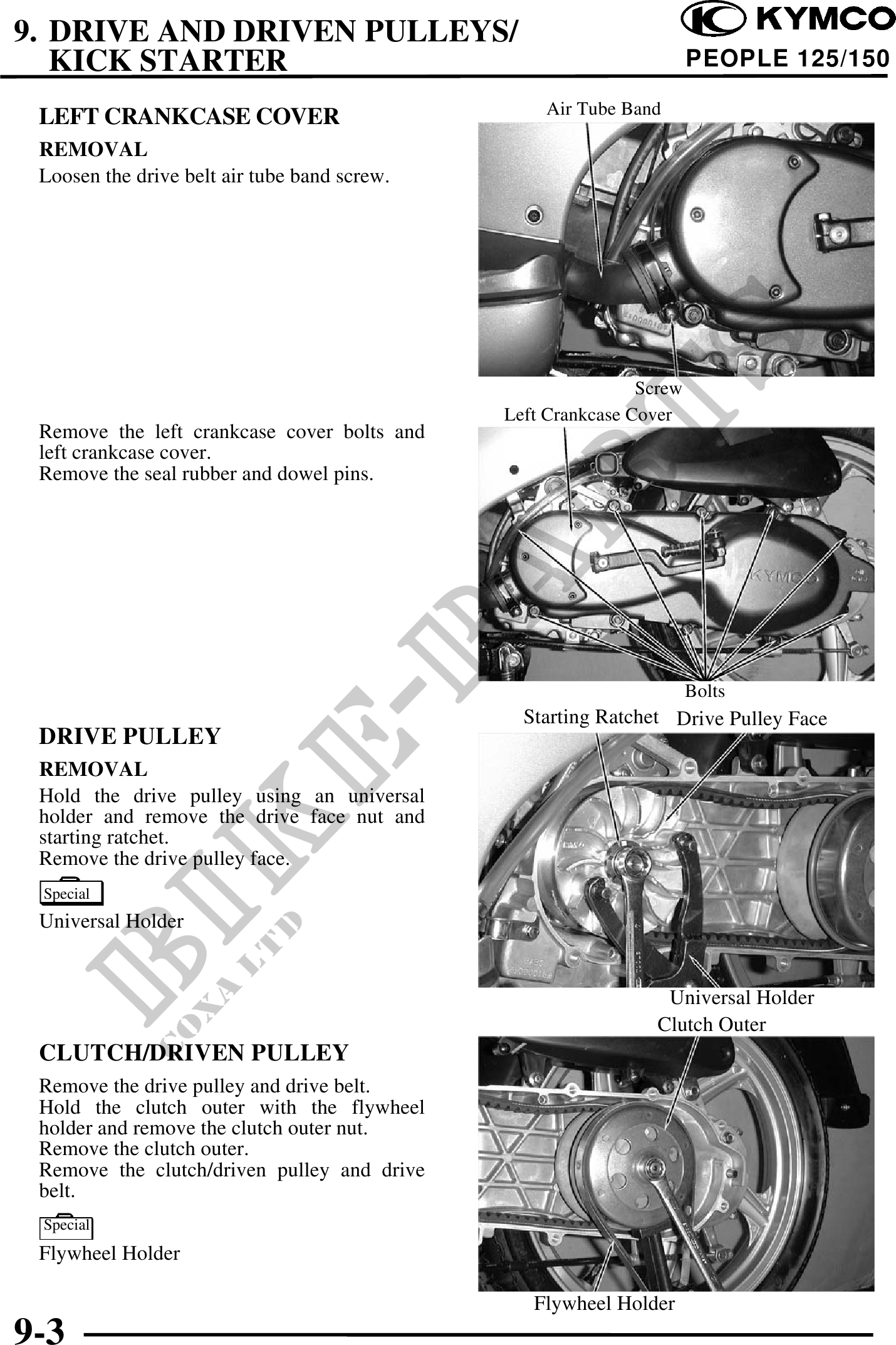

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                       PEOPLE 125/150
                                                  Air Tube Band
 LEFT CRANKCASE COVER
 REMOVAL
 Loosen the drive belt air tube band screw.




                                                              Screw
                                              Left Crankcase Cover
 Remove the left crankcase cover bolts and
 left crankcase cover.
 Remove the seal rubber and dowel pins.




                                                                      Bolts
                                                Starting Ratchet Drive Pulley Face
 DRIVE PULLEY
 REMOVAL
 Hold the drive pulley using an universal
 holder and remove the drive face nut and
 starting ratchet.
 Remove the drive pulley face.
 Special
 Universal Holder


                                                                 Universal Holder
                                                                Clutch Outer
 CLUTCH/DRIVEN PULLEY
 Remove the drive pulley and drive belt.
 Hold the clutch outer with the flywheel
 holder and remove the clutch outer nut.
 Remove the clutch outer.
 Remove the clutch/driven pulley and drive
 belt.
 Special
 Flywheel Holder

                                                 Flywheel Holder
9-3
