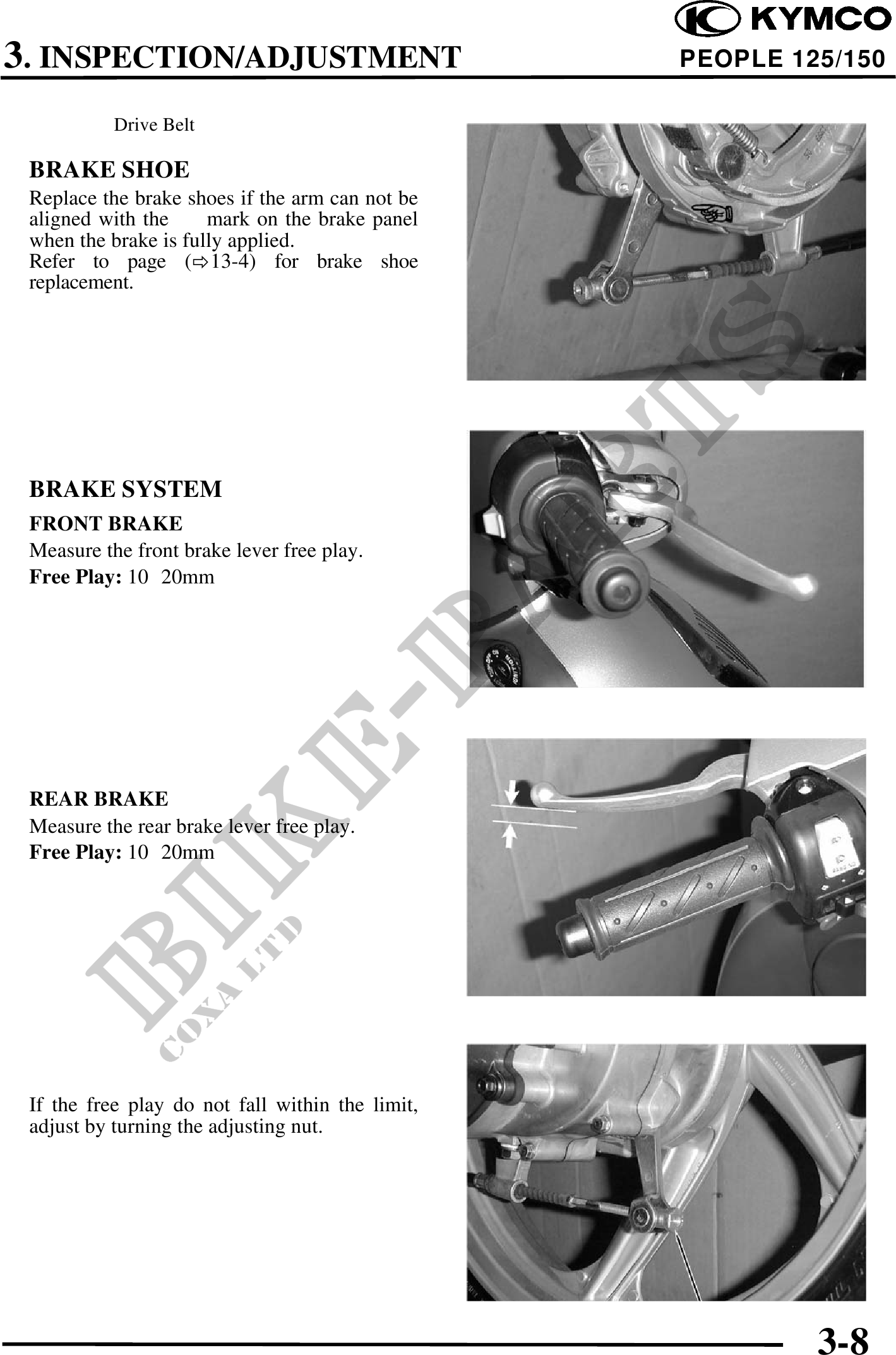

          3. INSPECTION/ADJUSTMENT                          PEOPLE 125/150

           Drive Belt

 BRAKE SHOE
 Replace the brake shoes if the arm can not be
 aligned with the     mark on the brake panel
 when the brake is fully applied.
 Refer to page ( 13-4) for brake shoe
 replacement.




 BRAKE SYSTEM
 FRONT BRAKE
 Measure the front brake lever free play.
 Free Play: 10 20mm




 REAR BRAKE
 Measure the rear brake lever free play.
 Free Play: 10 20mm




 If the free play do not fall within the limit,
 adjust by turning the adjusting nut.




                                                           3-8
