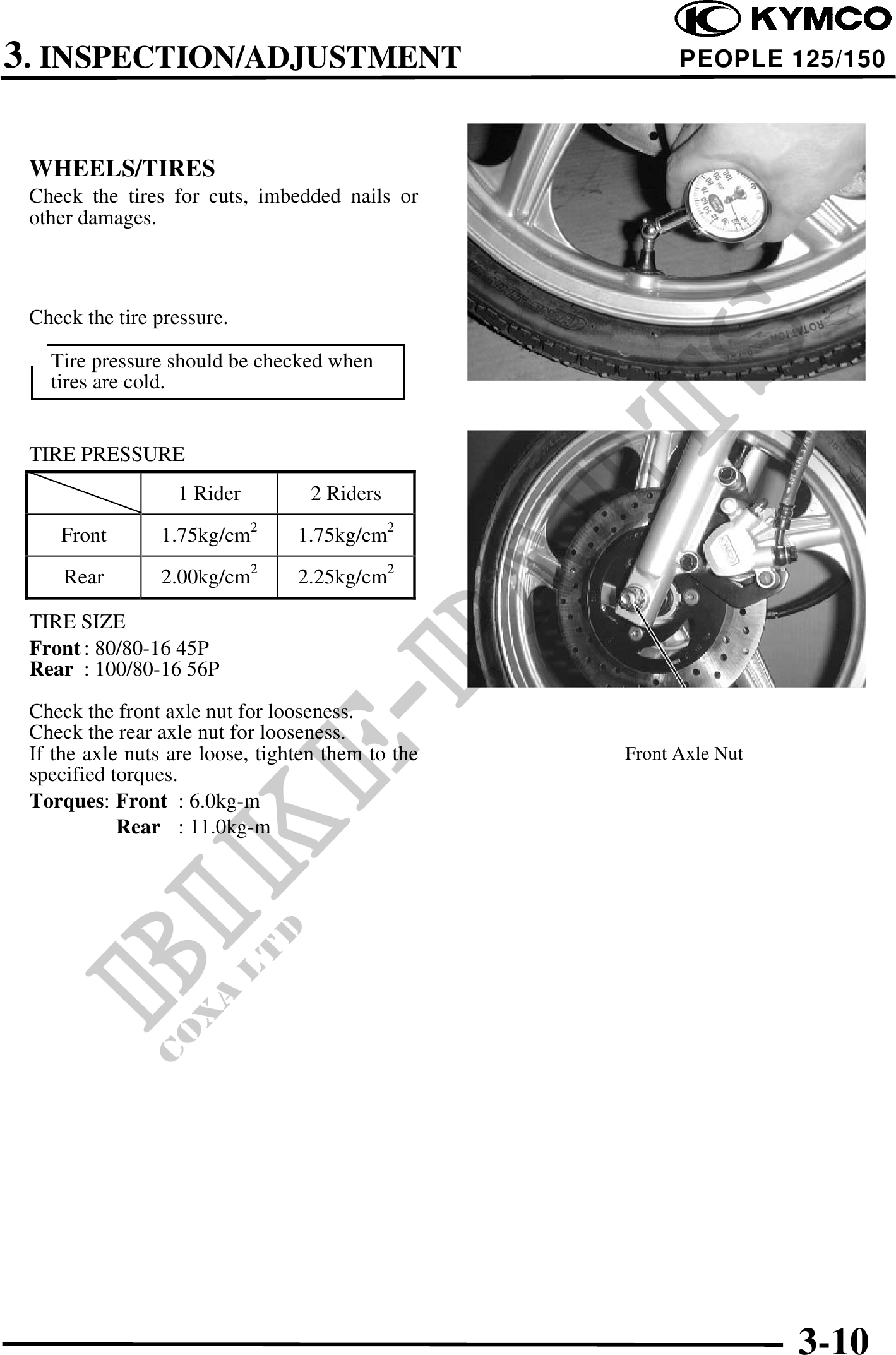

          3. INSPECTION/ADJUSTMENT                                 PEOPLE 125/150



 WHEELS/TIRES
 Check the tires for cuts, imbedded nails or
 other damages.



 Check the tire pressure.

   Tire pressure should be checked when
   tires are cold.


 TIRE PRESSURE
                  1 Rider          2 Riders
                            2                 2
    Front       1.75kg/cm        1.75kg/cm
     Rear       2.00kg/cm2       2.25kg/cm2

 TIRE SIZE
 Front : 80/80-16 45P
 Rear : 100/80-16 56P

 Check the front axle nut for looseness.
 Check the rear axle nut for looseness.
 If the axle nuts are loose, tighten them to the   Front Axle Nut
 specified torques.
 Torques: Front : 6.0kg-m
            Rear : 11.0kg-m




                                                                    3-10
