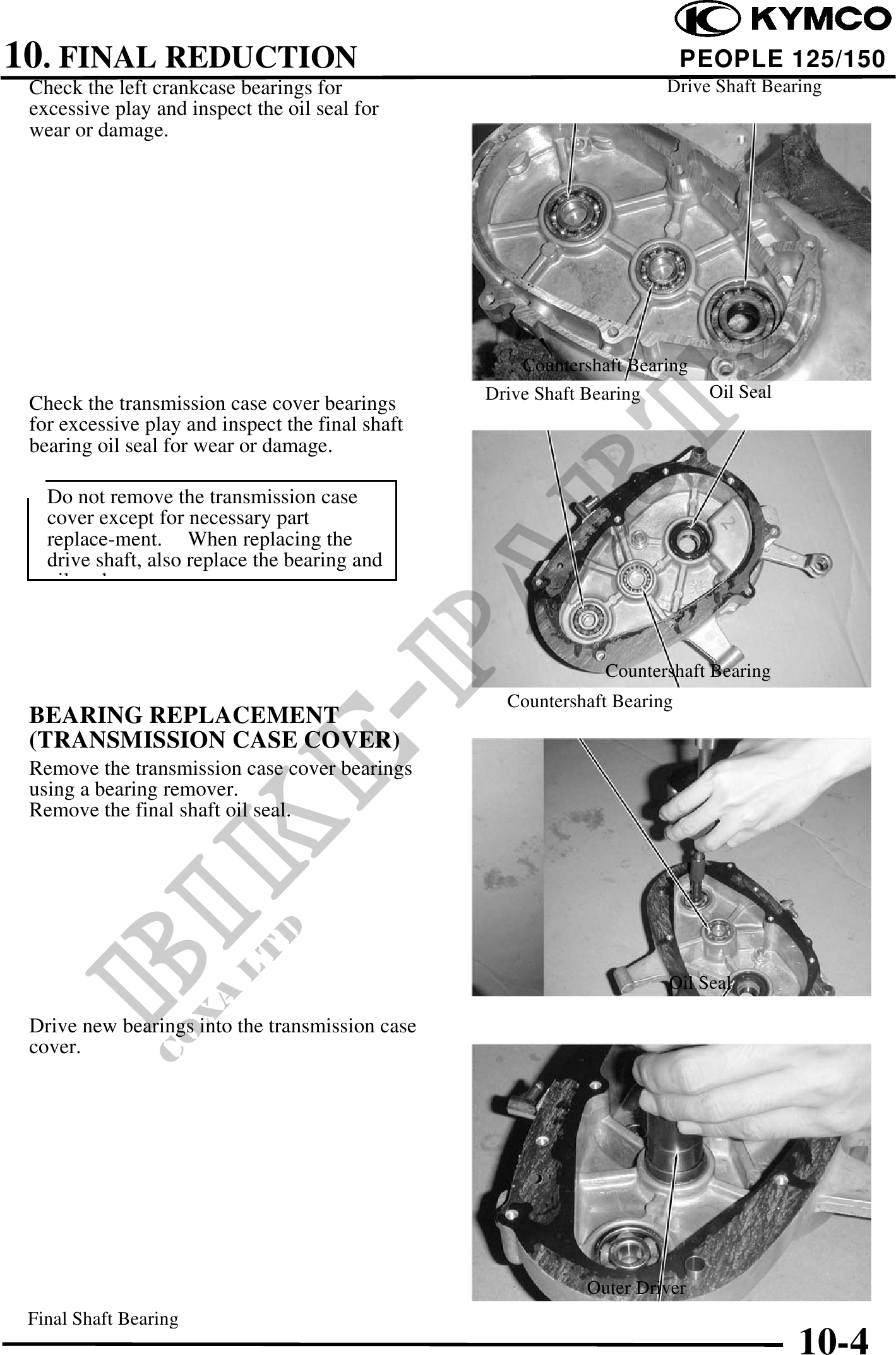

          10. FINAL REDUCTION                                                        PEOPLE 125/150
 Check the left crankcase bearings for                                 Drive Shaft Bearing
 excessive play and inspect the oil seal for
 wear or damage.




                                                      Countershaft Bearing
                                                  Drive Shaft Bearing        Oil Seal
 Check the transmission case cover bearings
 for excessive play and inspect the final shaft
 bearing oil seal for wear or damage.

   Do not remove the transmission case
   cover except for necessary part
   replace-ment. When replacing the
   drive shaft, also replace the bearing and
    il    l



                                                                Countershaft Bearing
                                                    Countershaft Bearing
 BEARING REPLACEMENT
 (TRANSMISSION CASE COVER)
 Remove the transmission case cover bearings
 using a bearing remover.
 Remove the final shaft oil seal.




                                                                       Oil Seal

 Drive new bearings into the transmission case
 cover.




                                                              Outer Driver
 Final Shaft Bearing
                                                                                        10-4
