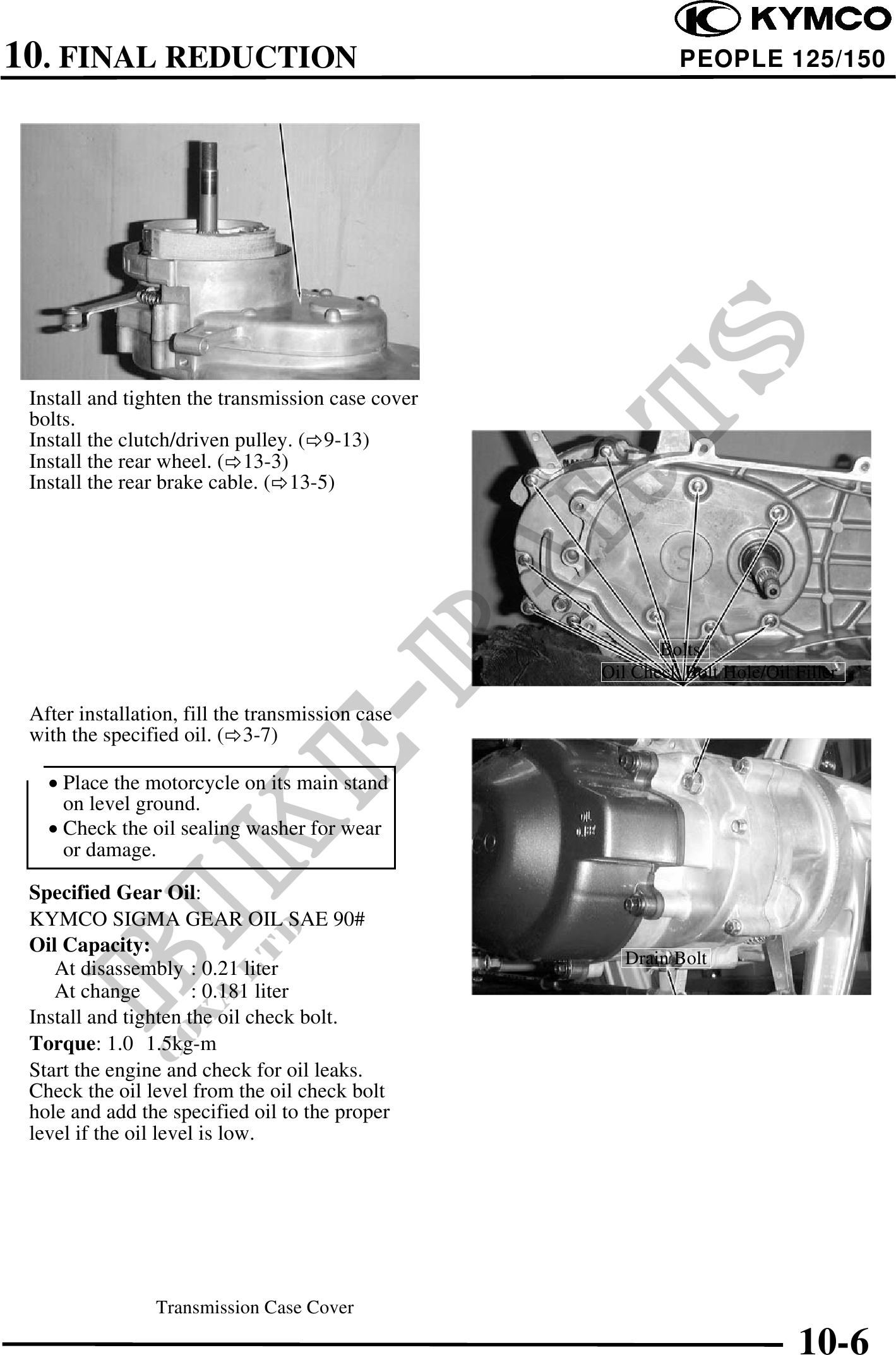

          10. FINAL REDUCTION                                         PEOPLE 125/150




 Install and tighten the transmission case cover
 bolts.
 Install the clutch/driven pulley. ( 9-13)
 Install the rear wheel. ( 13-3)
 Install the rear brake cable. ( 13-5)




                                                          Bolts
                                                   Oil Check Bolt Hole/Oil Filler

 After installation, fill the transmission case
 with the specified oil. ( 3-7)

   · Place the motorcycle on its main stand
     on level ground.
   · Check the oil sealing washer for wear
     or damage.

 Specified Gear Oil:
 KYMCO SIGMA GEAR OIL SAE 90#
 Oil Capacity:
                                                      Drain Bolt
    At disassembly : 0.21 liter
    At change          : 0.181 liter
 Install and tighten the oil check bolt.
 Torque: 1.0 1.5kg-m
 Start the engine and check for oil leaks.
 Check the oil level from the oil check bolt
 hole and add the specified oil to the proper
 level if the oil level is low.




                 Transmission Case Cover

                                                                            10-6
