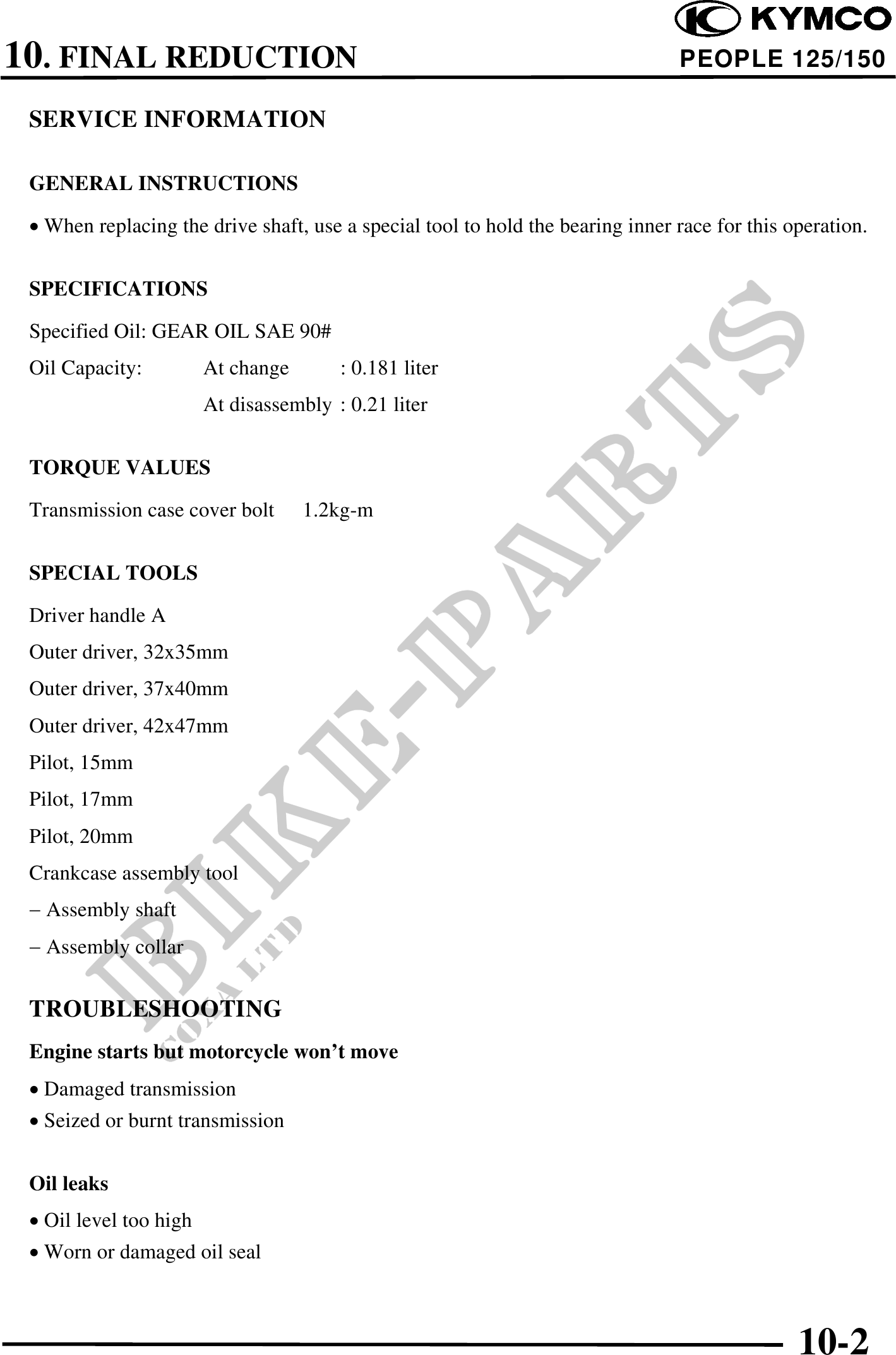

10. FINAL REDUCTION PEOPLE 125/150
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When replacing the drive shaft, use a special tool to hold the bearing inner race for this operation.
SPECIFICATIONS
Specified Oil: GEAR OIL SAE 90#
Oil Capacity: At change : 0.181 liter
At disassembly : 0.21 liter
TORQUE VALUES
Transmission case cover bolt 1.2kg-m
SPECIAL TOOLS
Driver handle A
Outer driver, 32x35mm
Outer driver, 37x40mm
Outer driver, 42x47mm
Pilot, 15mm
Pilot, 17mm
Pilot, 20mm
Crankcase assembly tool
- Assembly shaft
- Assembly collar
TROUBLESHOOTING
Engine starts but motorcycle won't move
· Damaged transmission
· Seized or burnt transmission
Oil leaks
· Oil level too high
· Worn or damaged oil seal
10-2
