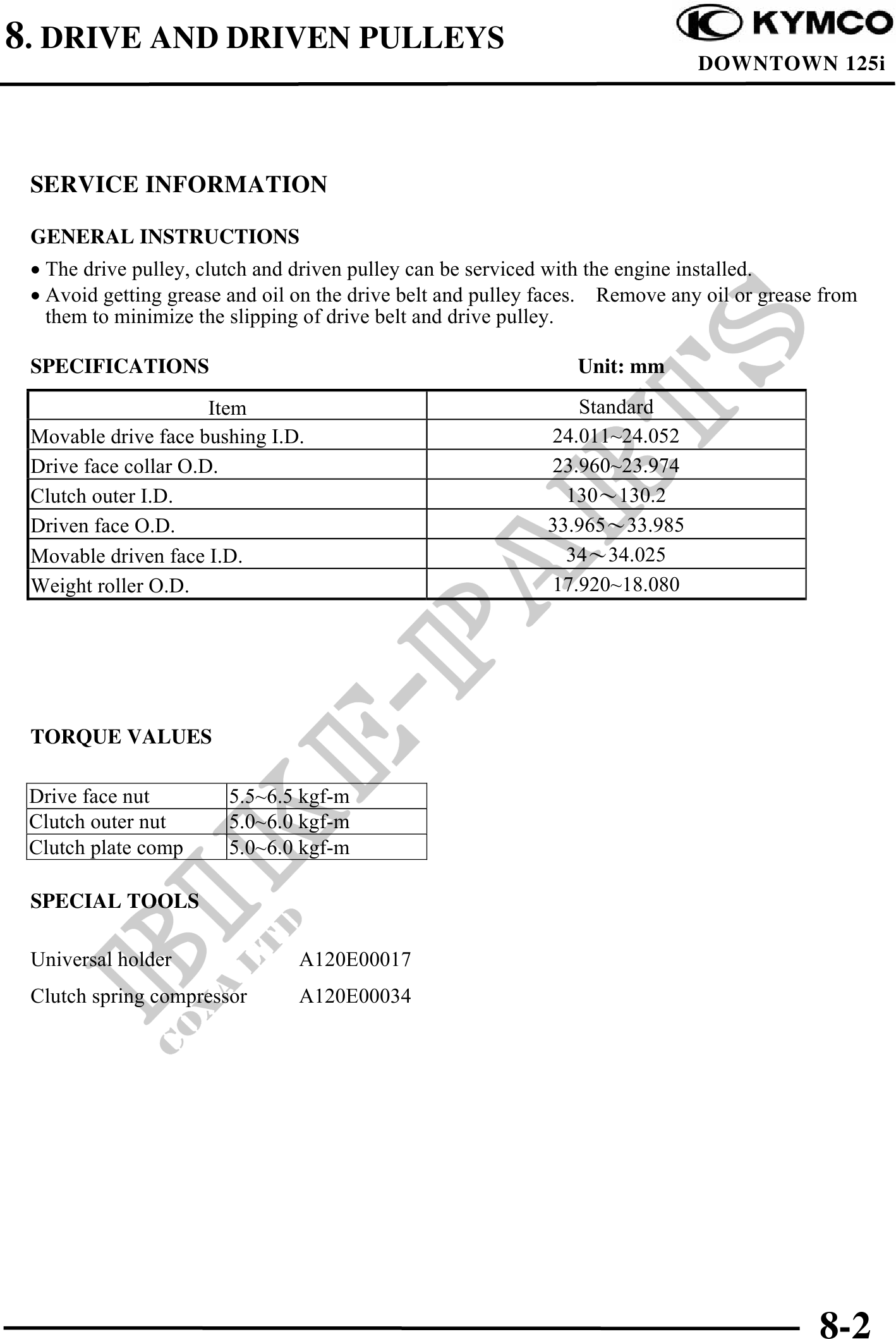

          8. DRIVE AND DRIVEN PULLEYS
                                                                              DOWNTOWN 125i




 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 · The drive pulley, clutch and driven pulley can be serviced with the engine installed.
 · Avoid getting grease and oil on the drive belt and pulley faces. Remove any oil or grease from
   them to minimize the slipping of drive belt and drive pulley.

 SPECIFICATIONS                                                 Unit: mm
                      Item                                      Standard
 Movable drive face bushing I.D.                             24.011~24.052
 Drive face collar O.D.                                      23.960~23.974
 Clutch outer I.D.                                             130130.2
 Driven face O.D.                                            33.96533.985
 Movable driven face I.D.                                      3434.025
 Weight roller O.D.                                          17.920~18.080




 TORQUE VALUES

 Drive face nut (       5.5~6.5 kgf-m
 Clutch outer nut       5.0~6.0 kgf-m
 Clutch plate comp      5.0~6.0 kgf-m

 SPECIAL TOOLS
 Bearing installer              A120E00014
 Universal holder               A120E00017
 Clutch spring compressor       A120E00034




                                                                                            8-2
