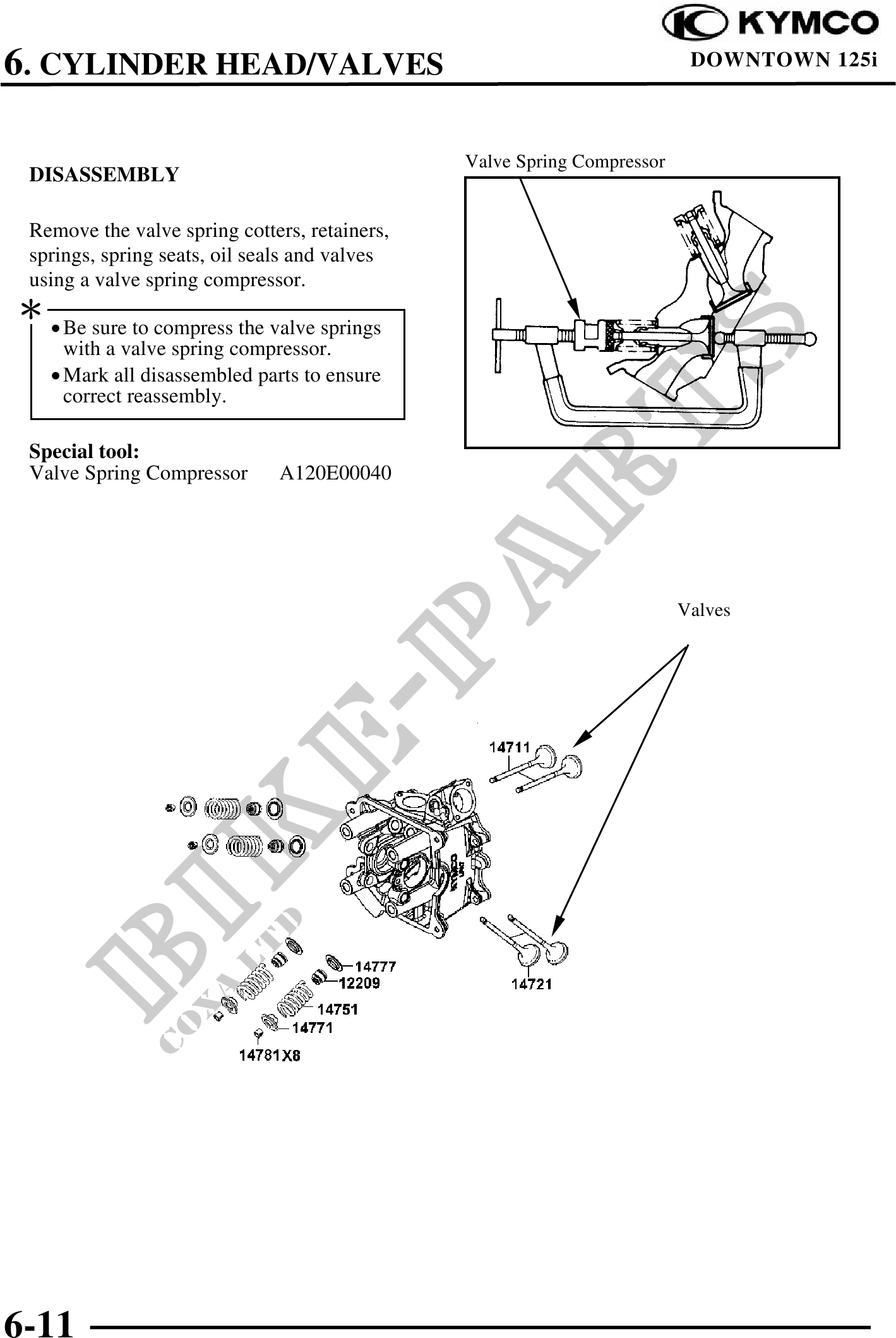

          6. CYLINDER HEAD/VALVES                                                   DOWNTOWN 125i



                                               Valve Spring Compressor
 DISASSEMBLY

 Remove the valve spring cotters, retainers,
 springs, spring seats, oil seals and valves
 using a valve spring compressor.
 · Be sure to compress the valve springs
     with a valve spring compressor.
   · Mark all disassembled parts to ensure
     correct reassembly.

 Special tool:
 Valve Spring Compressor      A120E00040




                                                                         Valves




6-11
