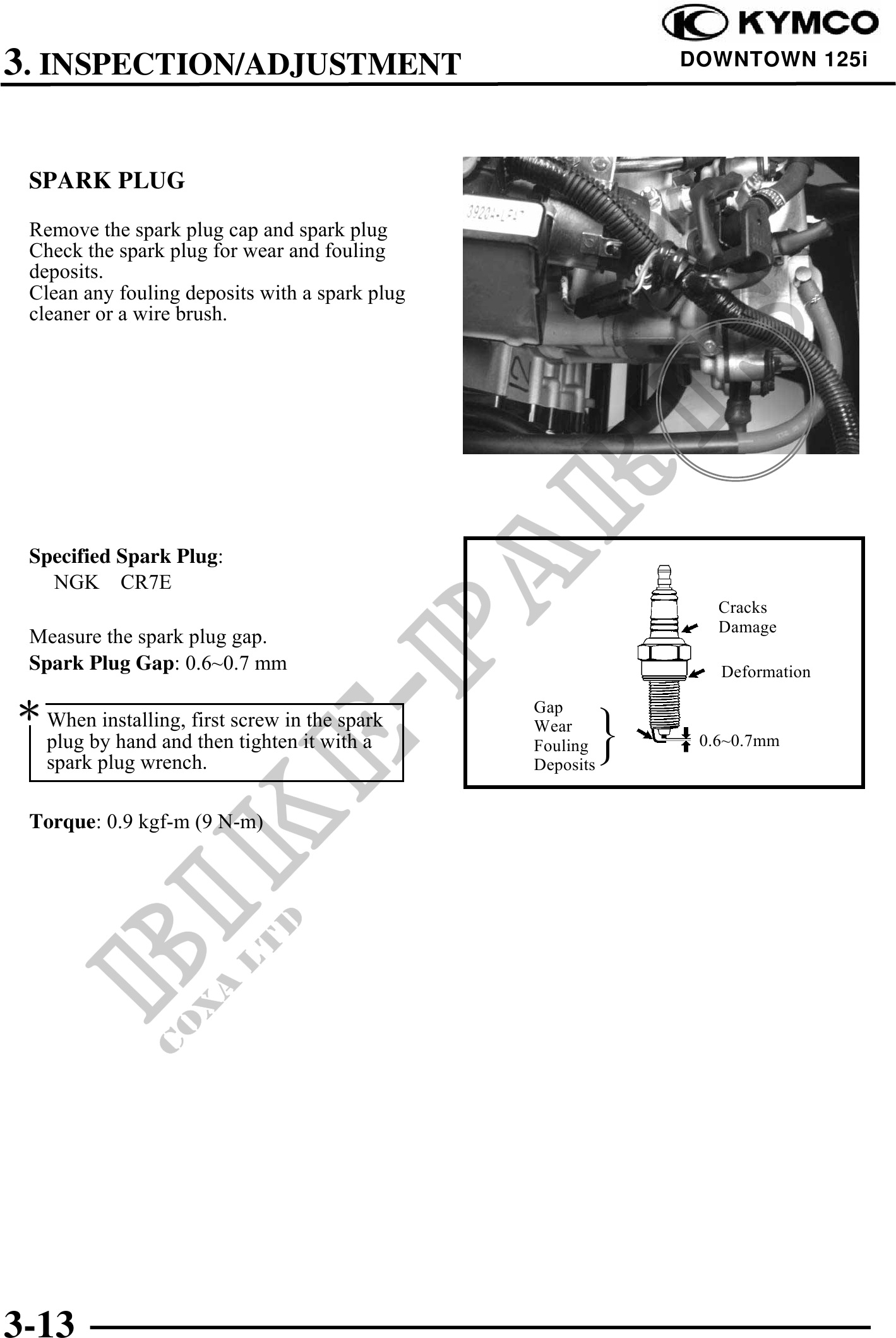

          3. INSPECTION/ADJUSTMENT                                   DOWNTOWN 125i




 SPARK PLUG
 Remove the spark plug cap and spark plug
 Check the spark plug for wear and fouling
 deposits.
 Clean any fouling deposits with a spark plug
 cleaner or a wire brush.




 Specified Spark Plug:
   NGK CR7E
                                                              Cracks
                                                              Damage
 Measure the spark plug gap.
 Spark Plug Gap: 0.6~0.7 mm                                   Deformation

 When installing, first screw in the spark      Gap

   plug by hand and then tighten it with a
   spark plug wrench.
                                                Wear

                                                Fouling
                                                Deposits
                                                            0.6~0.7mm



 Torque: 0.9 kgf-m (9 N-m)




3-13
