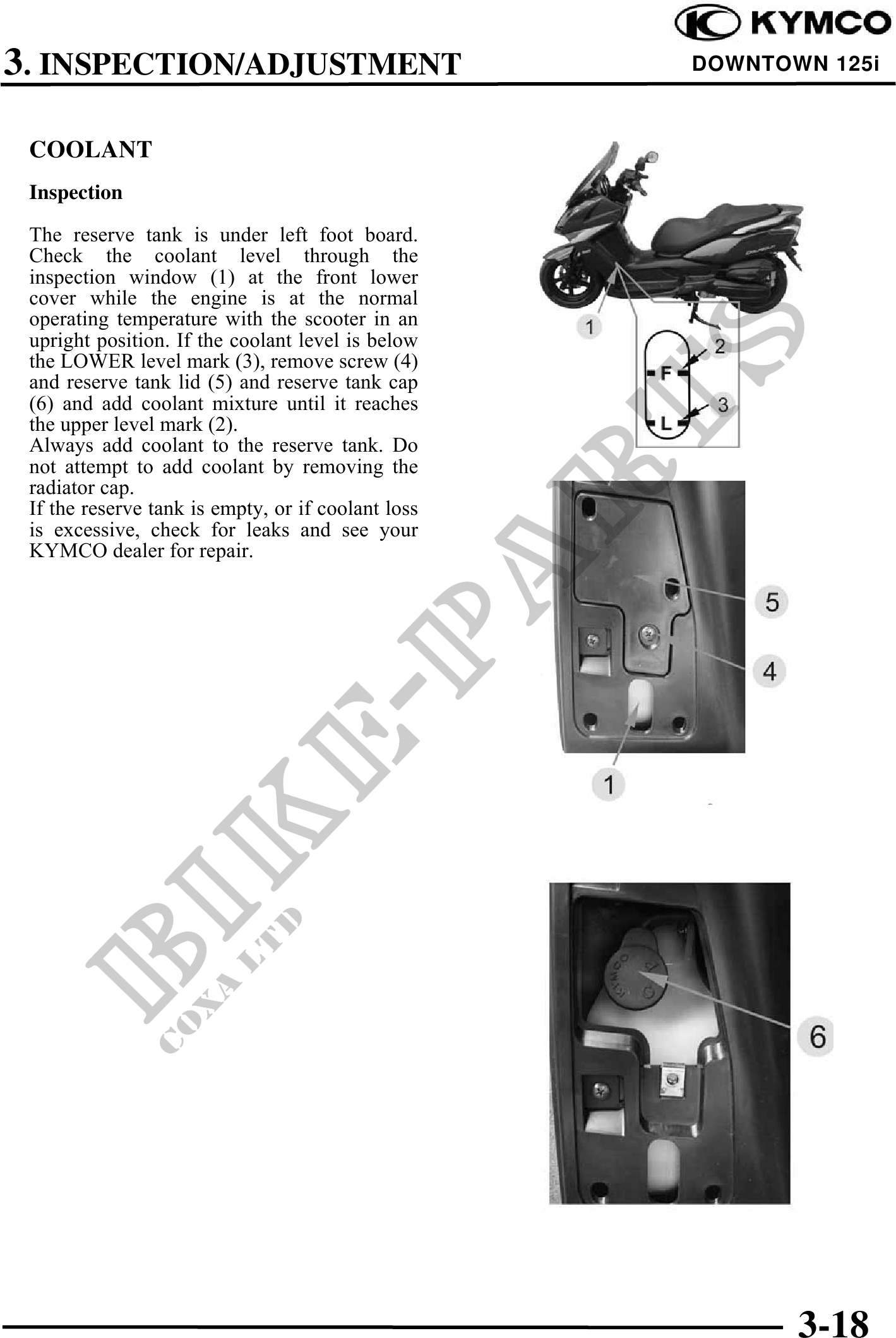

3. INSPECTION/ADJUSTMENT DOWNTOWN 125i
COOLANT
Inspection
The reserve tank is under left foot board.
Check the coolant level through the
inspection window (1) at the front lower
cover while the engine is at the normal
operating temperature with the scooter in an
upright position. If the coolant level is below
the LOWER level mark (3), remove screw (4)
and reserve tank lid (5) and reserve tank cap
(6) and add coolant mixture until it reaches
the upper level mark (2).
Always add coolant to the reserve tank. Do
not attempt to add coolant by removing the
radiator cap.
If the reserve tank is empty, or if coolant loss
is excessive, check for leaks and see your
KYMCO dealer for repair.
3-18
