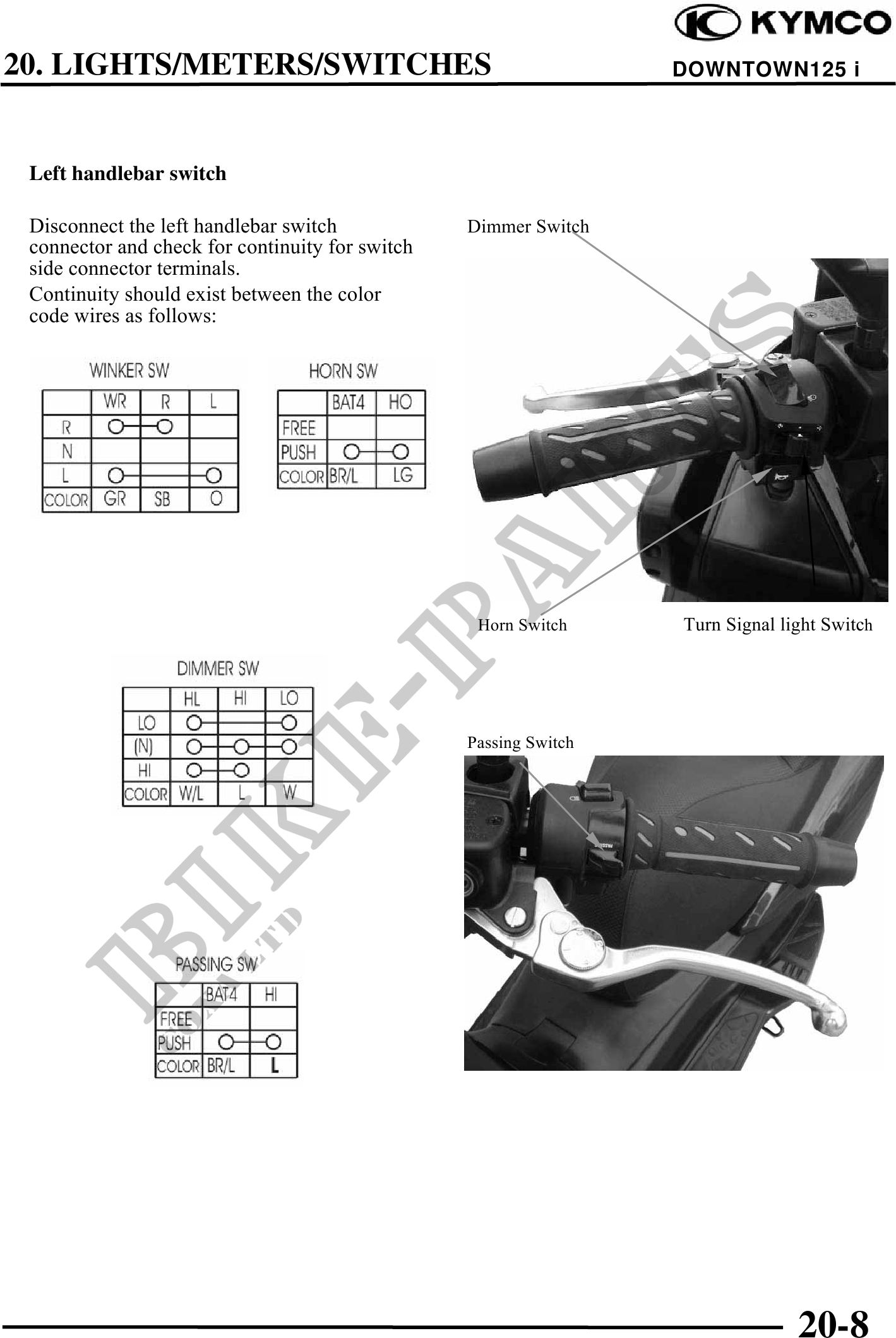

          20. LIGHTS/METERS/SWITCHES                                        DOWNTOWN125 i



 Left handlebar switch

 Disconnect the left handlebar switch            Dimmer Switch
 connector and check for continuity for switch
 side connector terminals.
 Continuity should exist between the color
 code wires as follows:




                                                  Horn Switch     Turn Signal light Switch




                                                 Passing Switch




                                                                                20-8
