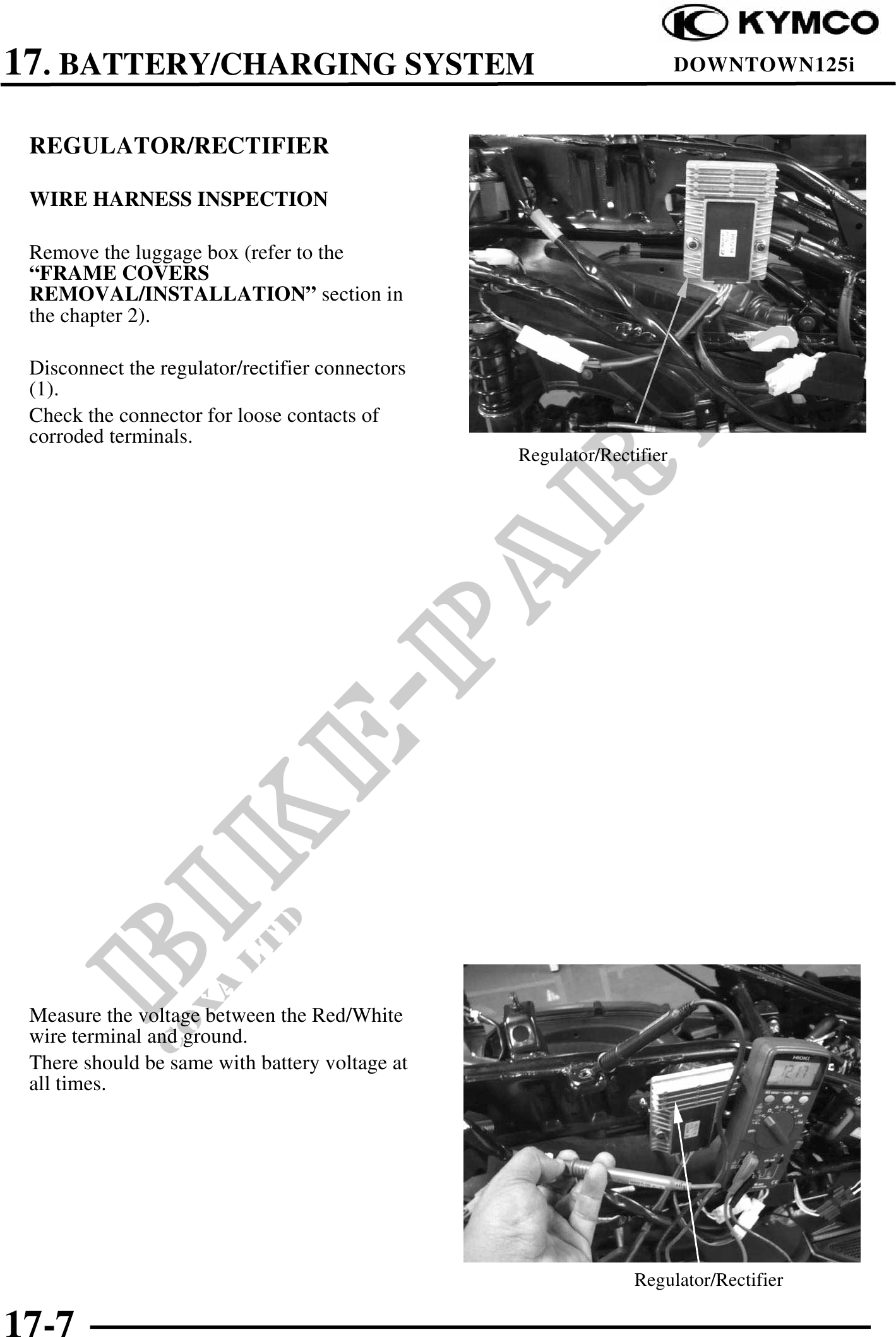

          17. BATTERY/CHARGING SYSTEM                                            DOWNTOWN125i


 REGULATOR/RECTIFIER

 WIRE HARNESS INSPECTION

 Remove the luggage box (refer to the
 "FRAME COVERS
 REMOVAL/INSTALLATION" section in
 the chapter 2).

 Disconnect the regulator/rectifier connectors
 (1).
 Check the connector for loose contacts of
 corroded terminals.
                                                 Regulator/Rectifier




 Measure the voltage between the Red/White
 wire terminal and ground.
 There should be same with battery voltage at
 all times.




                                                               Regulator/Rectifier

17-7
