          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                   Downtown 125i
   FRONT SHOCK ABSORBER/STEERING STEM



 DISASSEMBLY

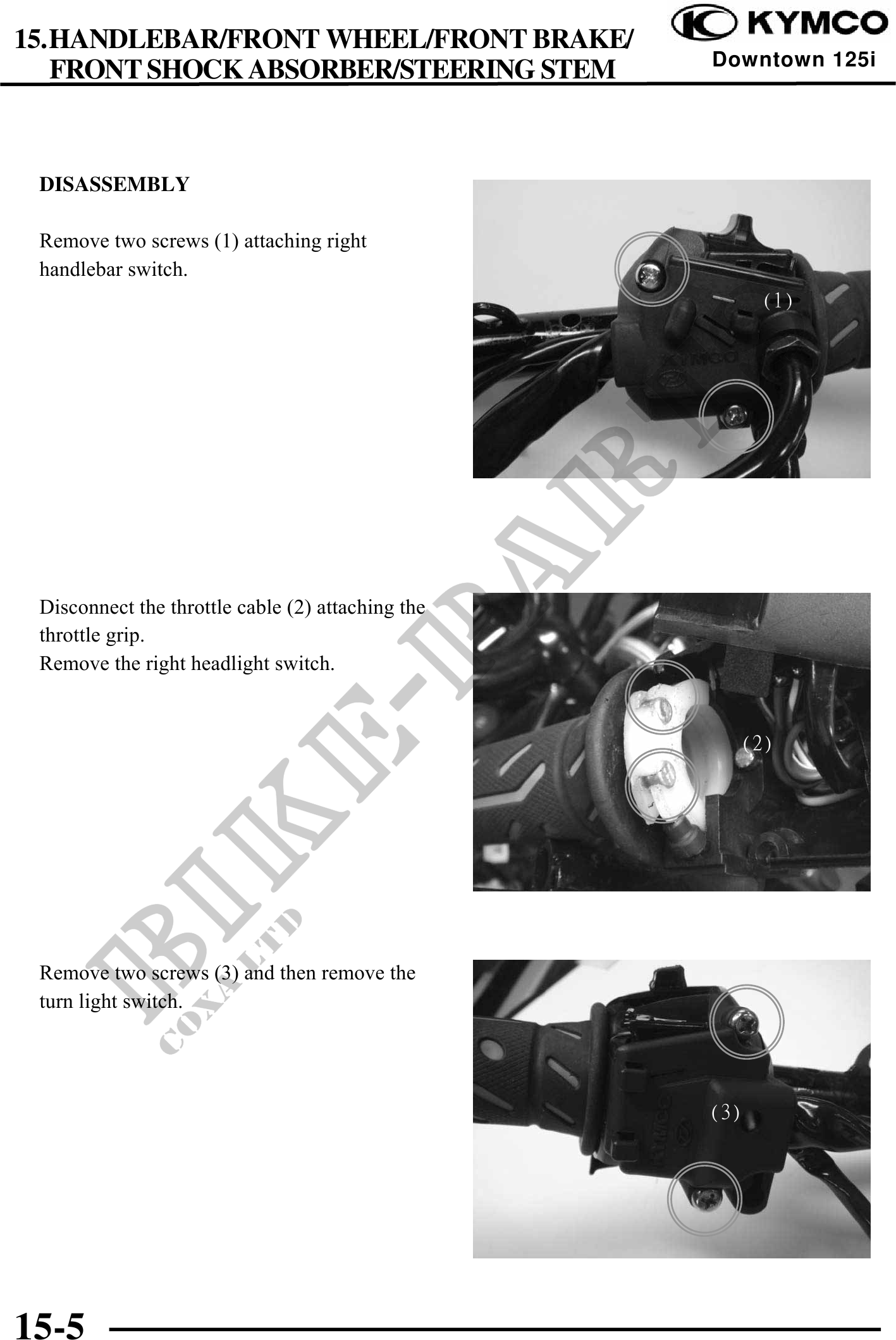

 Remove two screws (1) attaching right
 handlebar switch.
                                                           (1)




 Disconnect the throttle cable (2) attaching the
 throttle grip.
 Remove the right headlight switch.


                                                         (2)




 Remove two screws (3) and then remove the
 turn light switch.




                                                   (3)
