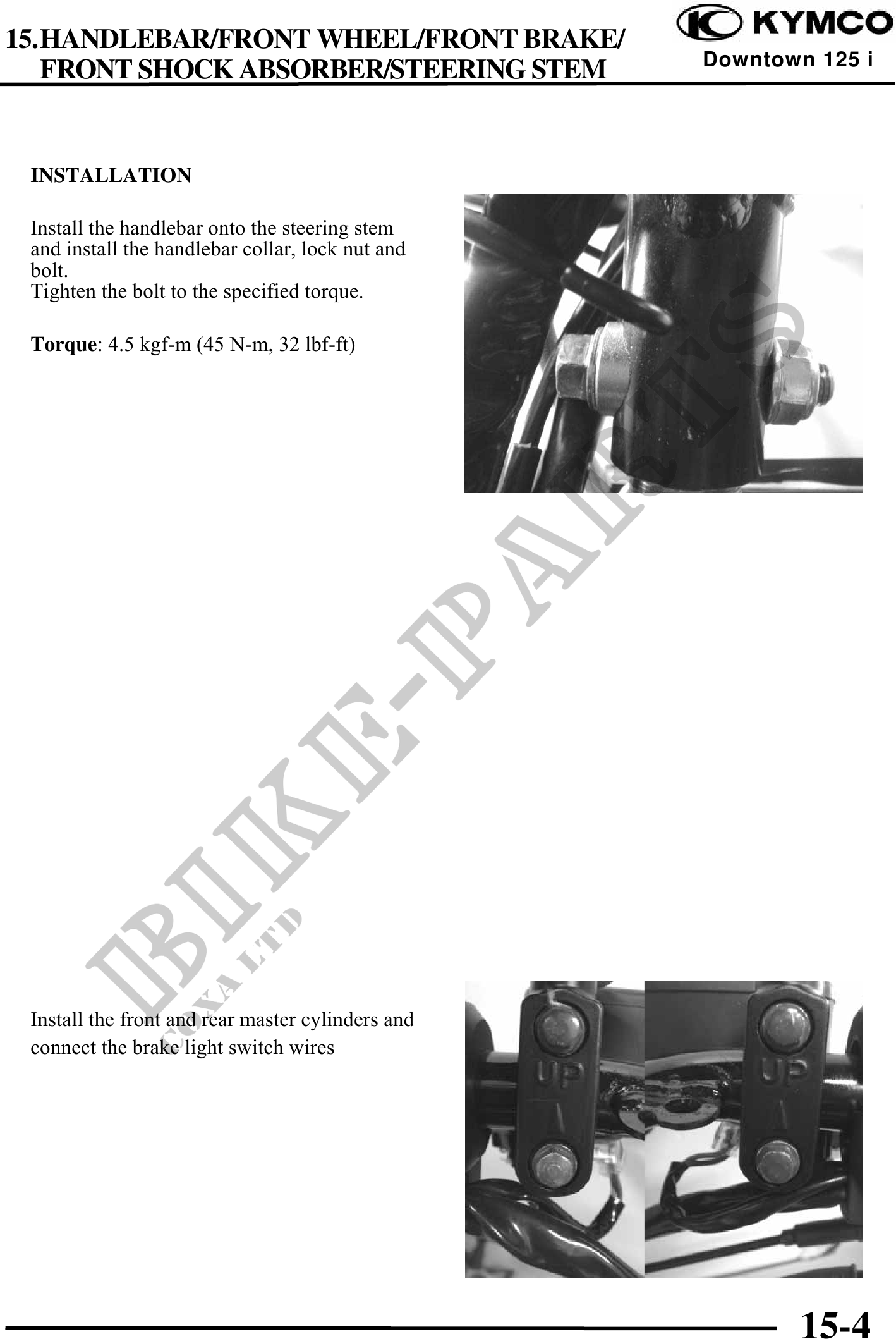

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                   Downtown 125 i
   FRONT SHOCK ABSORBER/STEERING STEM


 INSTALLATION

 Install the handlebar onto the steering stem
 and install the handlebar collar, lock nut and
 bolt.
 Tighten the bolt to the specified torque.

 Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)




 Install the front and rear master cylinders and
 connect the brake light switch wires




                                                           15-4
