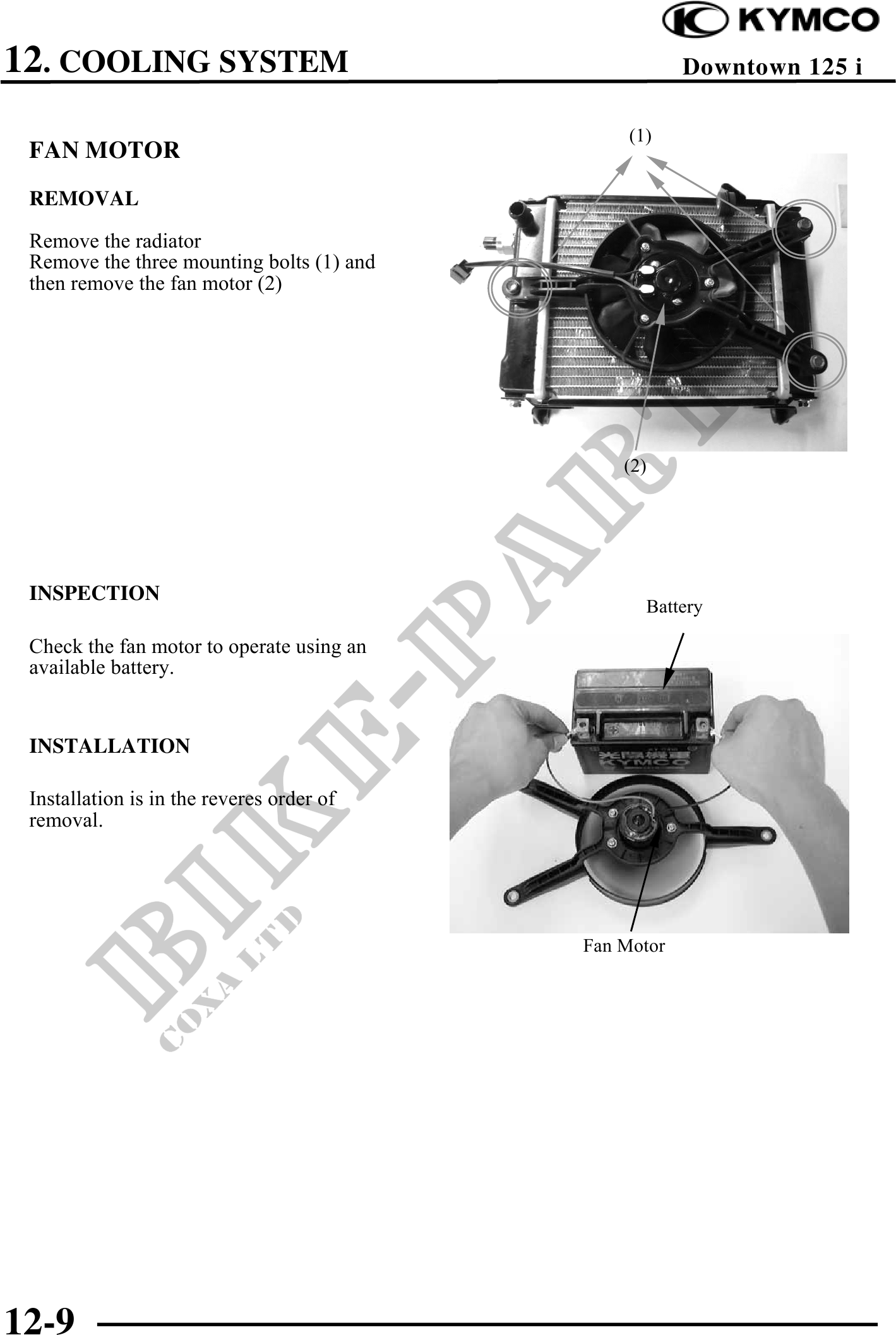

          12. COOLING SYSTEM                                     Downtown 125 i

                                                (1)
 FAN MOTOR
 REMOVAL

 Remove the radiator
 Remove the three mounting bolts (1) and
 then remove the fan motor (2)




                                               (2)




 INSPECTION
                                                  Battery

 Check the fan motor to operate using an
 available battery.


 INSTALLATION

 Installation is in the reveres order of
 removal.




                                           Fan Motor




12-9
