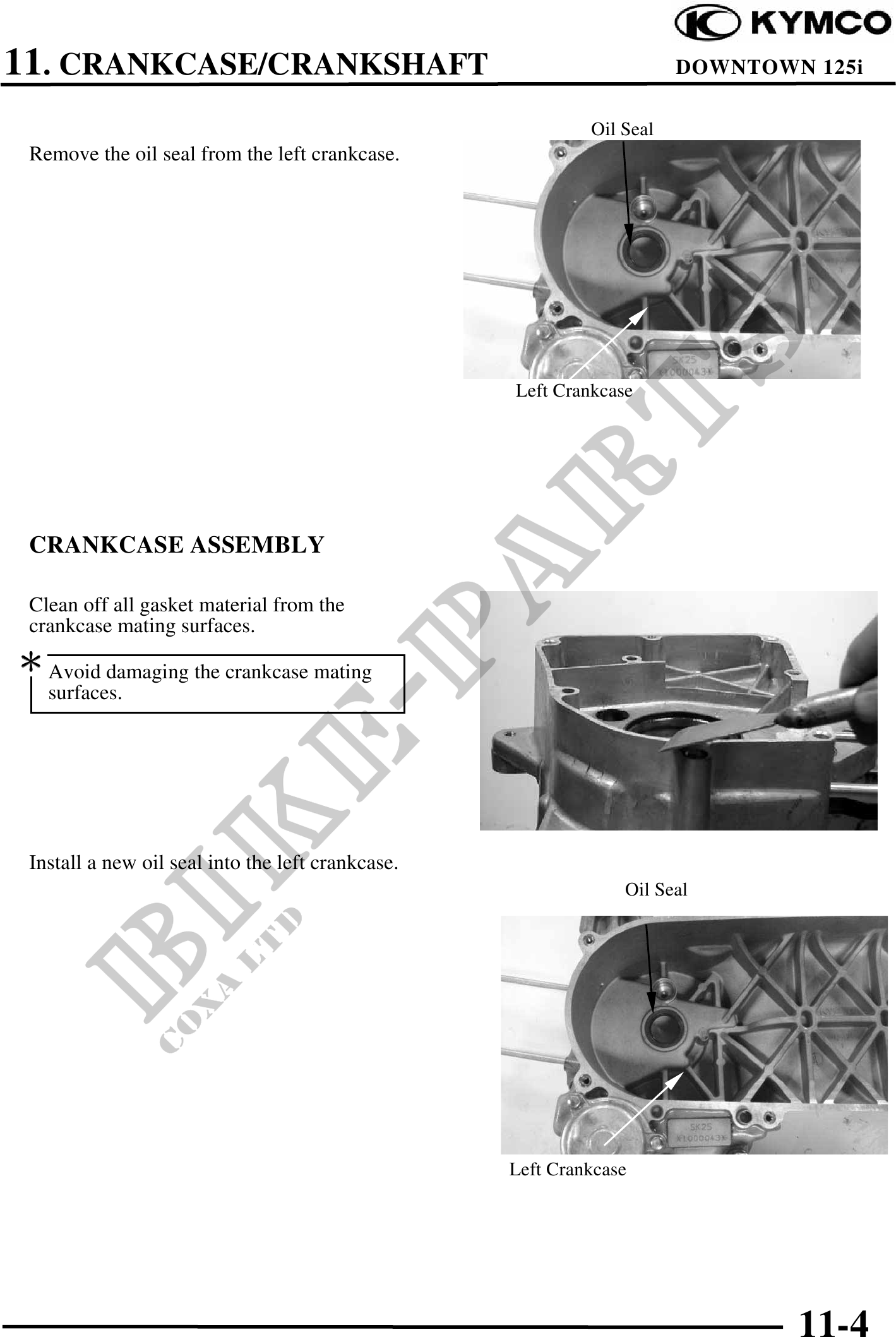

          11. CRANKCASE/CRANKSHAFT                                               DOWNTOWN 125i

                                                            Oil Seal
 Remove the oil seal from the left crankcase.




                                                   Left Crankcase




 CRANKCASE ASSEMBLY

 Clean off all gasket material from the
 crankcase mating surfaces.
 Avoid damaging the crankcase mating
   surfaces.




 Install a new oil seal into the left crankcase.
                                                                Oil Seal




                                                   Left Crankcase
