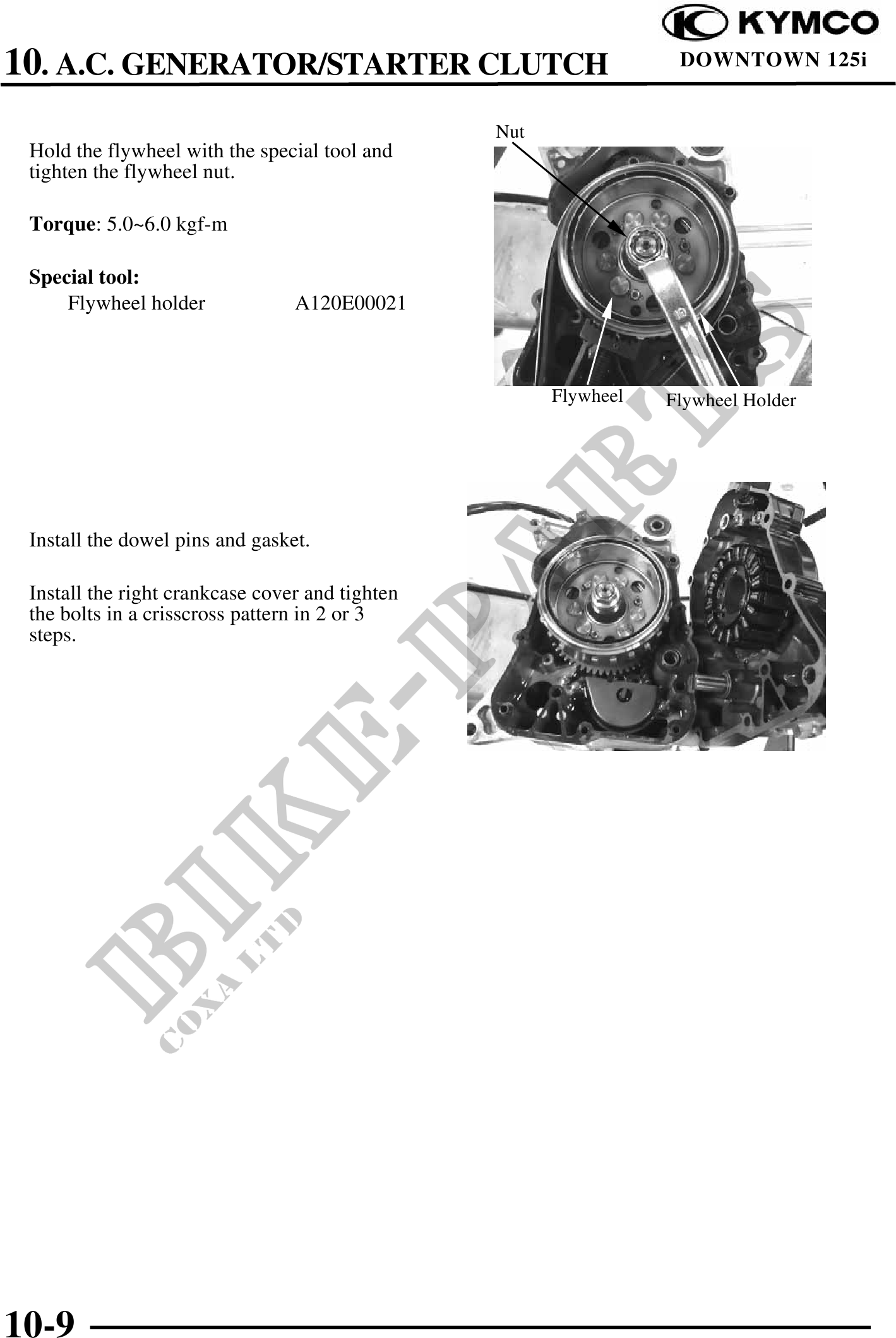

          10. A.C. GENERATOR/STARTER CLUTCH                                  DOWNTOWN 125i


                                                 Nut
 Hold the flywheel with the special tool and
 tighten the flywheel nut.

 Torque: 5.0~6.0 kgf-m

 Special tool:
     Flywheel holder             A120E00021



                                                       Flywheel   Flywheel Holder




 Install the dowel pins and gasket.

 Install the right crankcase cover and tighten
 the bolts in a crisscross pattern in 2 or 3
 steps.
