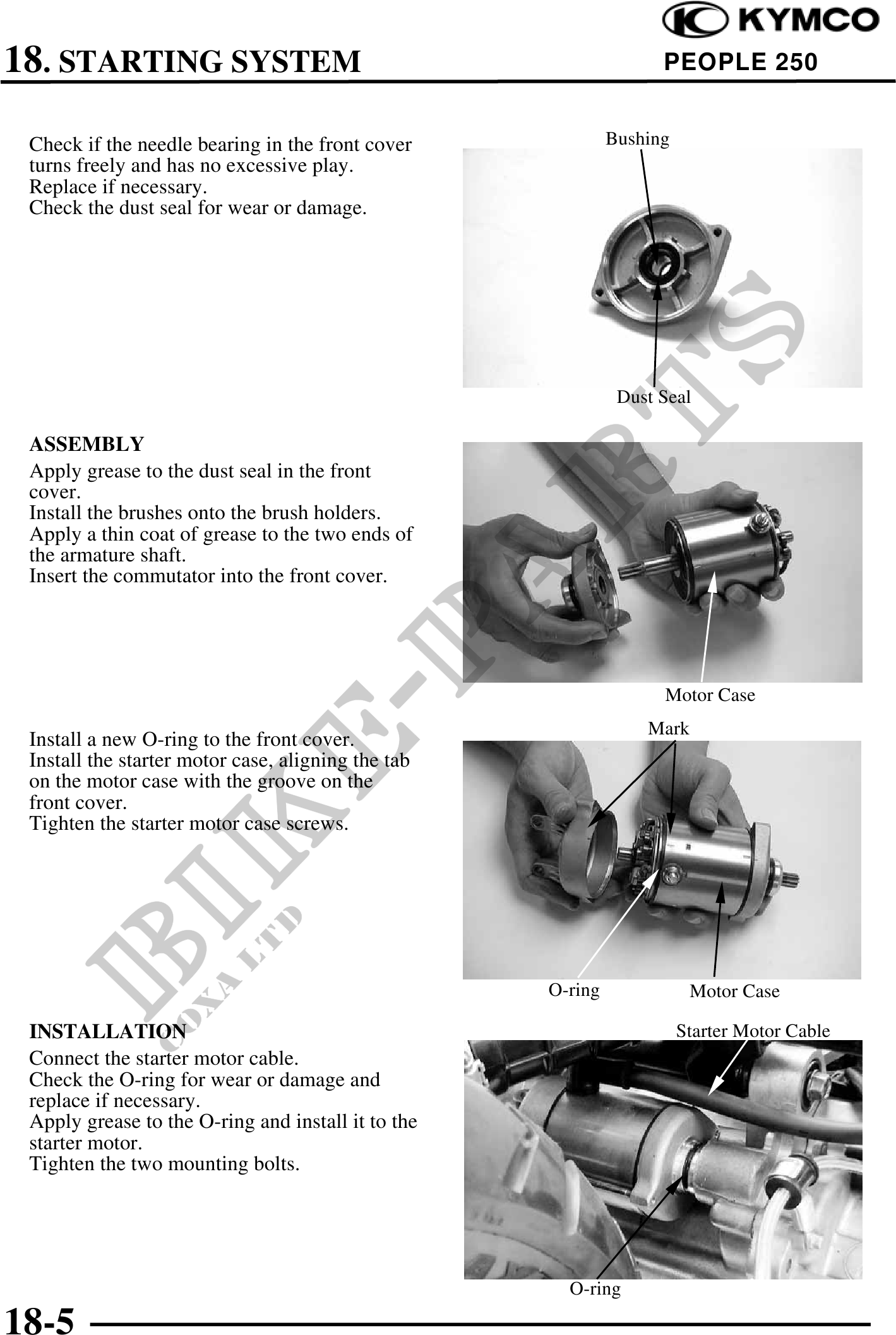

          18. STARTING SYSTEM                                                PEOPLE 250


 Check if the needle bearing in the front cover              Bushing
 turns freely and has no excessive play.
 Replace if necessary.
 Check the dust seal for wear or damage.




                                                              Dust Seal

 ASSEMBLY
 Apply grease to the dust seal in the front
 cover.
 Install the brushes onto the brush holders.
 Apply a thin coat of grease to the two ends of
 the armature shaft.
 Insert the commutator into the front cover.




                                                                   Motor Case
                                                                 Mark
 Install a new O-ring to the front cover.
 Install the starter motor case, aligning the tab
 on the motor case with the groove on the
 front cover.
 Tighten the starter motor case screws.




                                                    O-ring              Motor Case

 INSTALLATION                                                          Starter Motor Cable
 Connect the starter motor cable.
 Check the O-ring for wear or damage and
 replace if necessary.
 Apply grease to the O-ring and install it to the
 starter motor.
 Tighten the two mounting bolts.




                                                      O-ring

18-5
