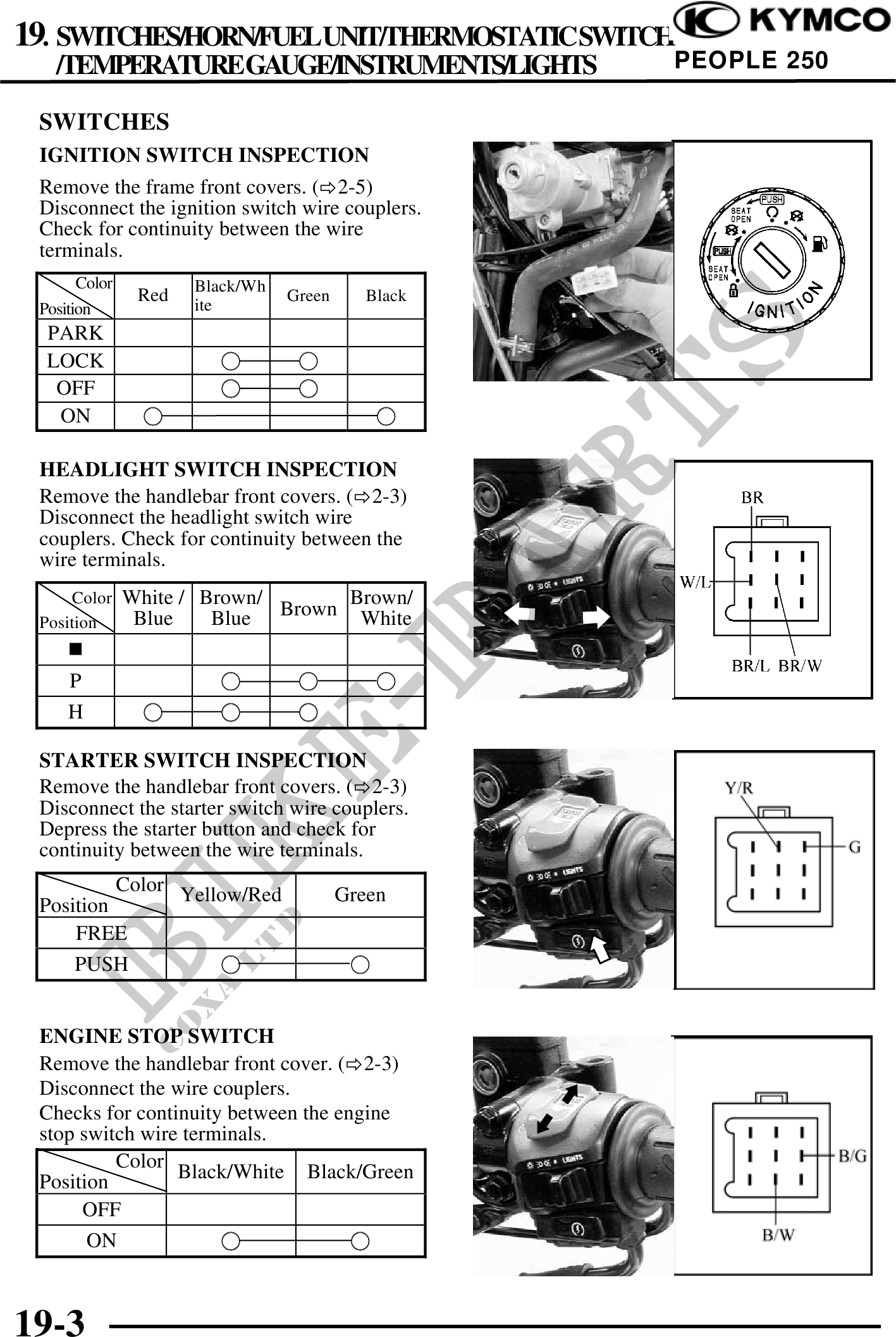

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS            PEOPLE 250

 SWITCHES
 IGNITION SWITCH INSPECTION
 Remove the frame front covers. ( 2-5)
 Disconnect the ignition switch wire couplers.
 Check for continuity between the wire
 terminals.
       Color         Black/Wh
               Red              Green      Black
 Position            ite
  PARK
  LOCK
   OFF
   ON

 HEADLIGHT SWITCH INSPECTION
 Remove the handlebar front covers. ( 2-3)
 Disconnect the headlight switch wire
 couplers. Check for continuity between the
 wire terminals.
     Color White / Brown/      Brown/
 Position   Blue    Blue Brown White

     P
     H

 STARTER SWITCH INSPECTION
 Remove the handlebar front covers. ( 2-3)
 Disconnect the starter switch wire couplers.
 Depress the starter button and check for
 continuity between the wire terminals.
          Color Yellow/Red              Green
 Position
     FREE
     PUSH


 ENGINE STOP SWITCH
 Remove the handlebar front cover. ( 2-3)
 Disconnect the wire couplers.
 Checks for continuity between the engine
 stop switch wire terminals.
          Color Black/White Black/Green
 Position
      OFF
       ON



19-3
