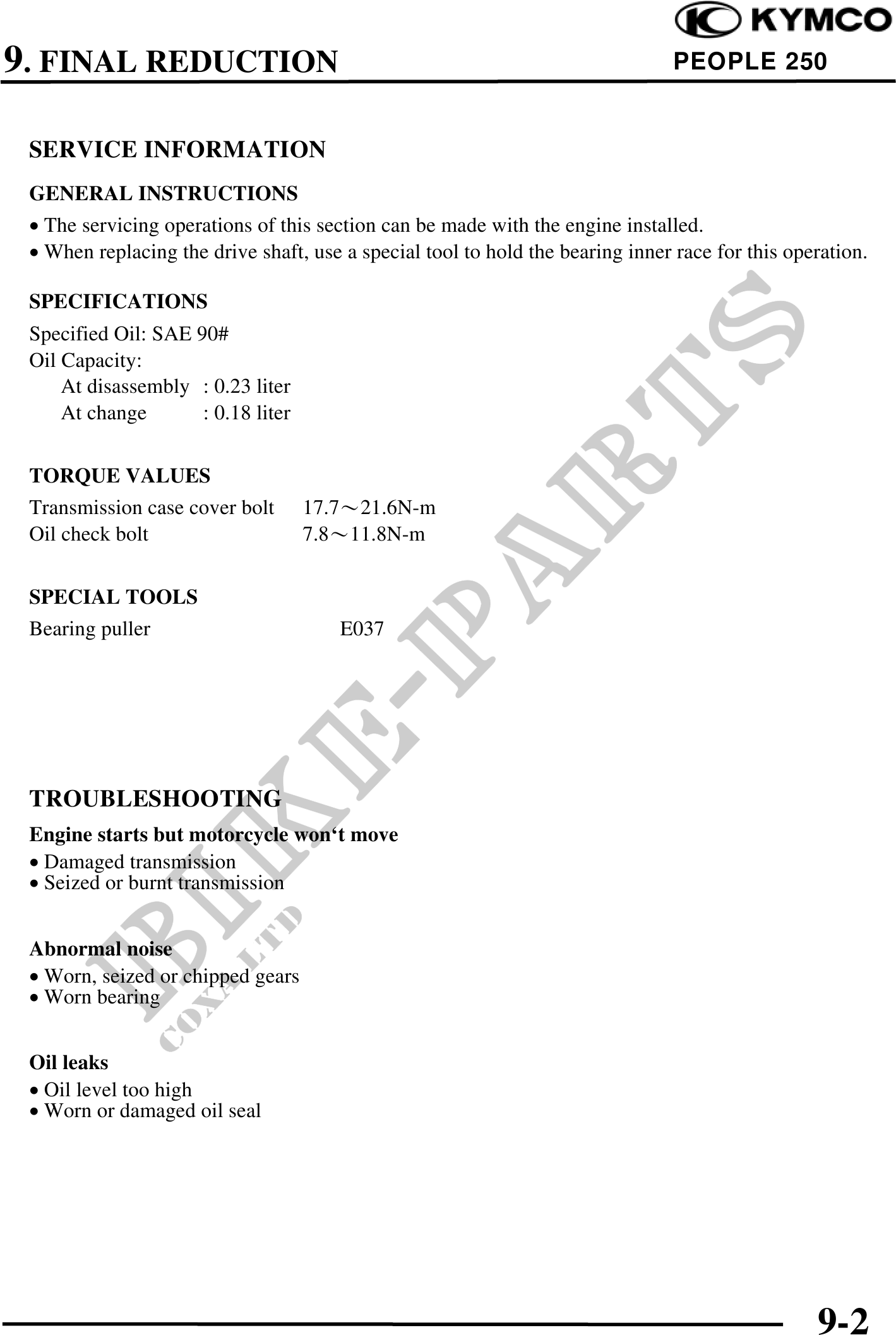

9. FINAL REDUCTION PEOPLE 250
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· The servicing operations of this section can be made with the engine installed.
· When replacing the drive shaft, use a special tool to hold the bearing inner race for this operation.
SPECIFICATIONS
Specified Oil: SAE 90#
Oil Capacity:
At disassembly : 0.23 liter
At change : 0.18 liter
TORQUE VALUES
Transmission case cover bolt 17.721.6N-m
Oil check bolt 7.811.8N-m
SPECIAL TOOLS
Bearing puller E037
TROUBLESHOOTING
Engine starts but motorcycle won`t move
· Damaged transmission
· Seized or burnt transmission
Abnormal noise
· Worn, seized or chipped gears
· Worn bearing
Oil leaks
· Oil level too high
· Worn or damaged oil seal
9-2
