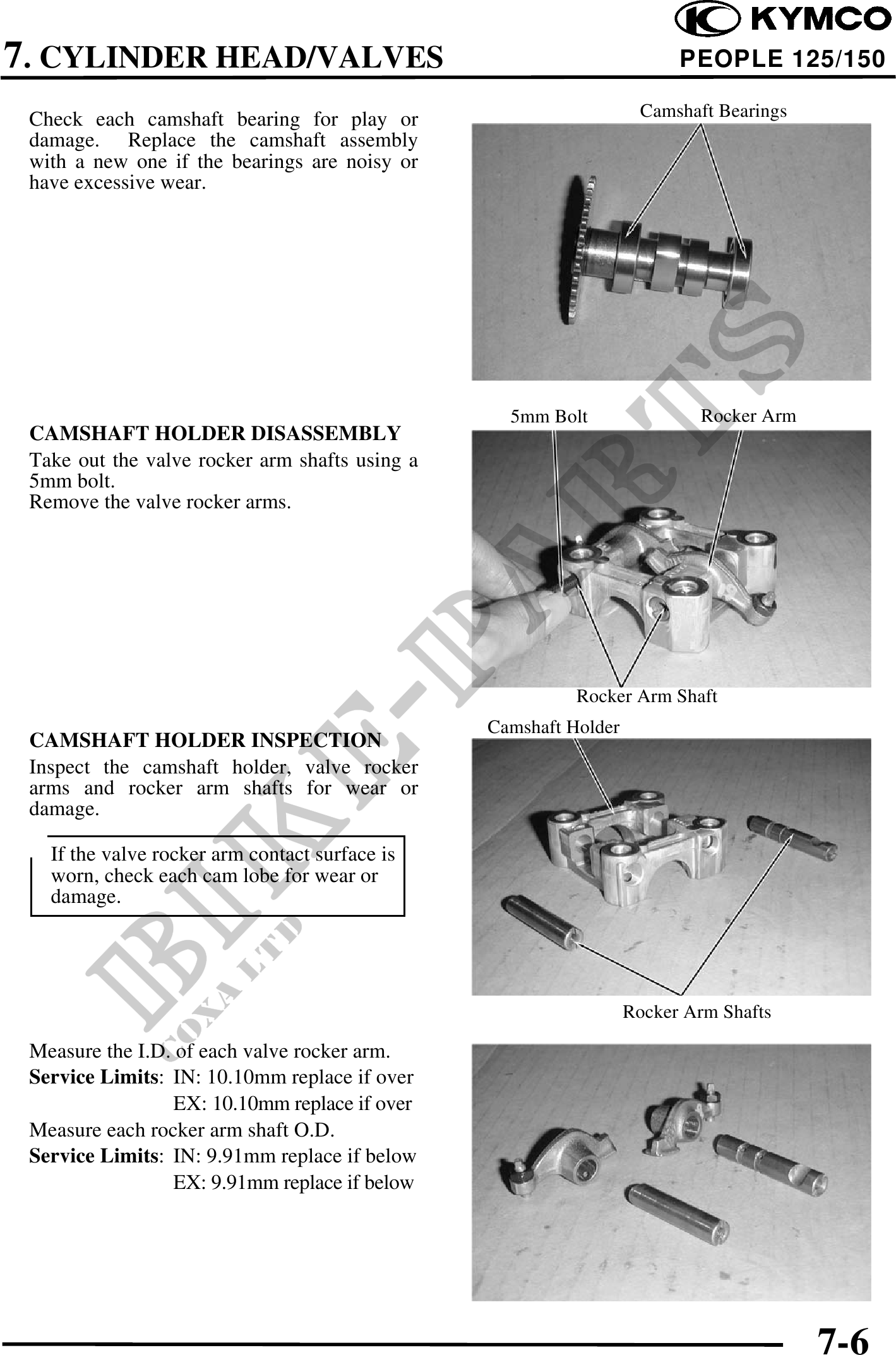

          7. CYLINDER HEAD/VALVES                                                 PEOPLE 125/150

 Check each camshaft bearing for play or                           Camshaft Bearings
 damage. Replace the camshaft assembly
 with a new one if the bearings are noisy or
 have excessive wear.




                                                  5mm Bolt                Rocker Arm
 CAMSHAFT HOLDER DISASSEMBLY
 Take out the valve rocker arm shafts using a
 5mm bolt.
 Remove the valve rocker arms.




                                                          Rocker Arm Shaft
                                                Camshaft Holder
 CAMSHAFT HOLDER INSPECTION
 Inspect the camshaft holder, valve rocker
 arms and rocker arm shafts for wear or
 damage.

   If the valve rocker arm contact surface is
   worn, check each cam lobe for wear or
   damage.




                                                                  Rocker Arm Shafts

 Measure the I.D. of each valve rocker arm.
 Service Limits: IN: 10.10mm replace if over
                 EX: 10.10mm replace if over
 Measure each rocker arm shaft O.D.
 Service Limits: IN: 9.91mm replace if below
                 EX: 9.91mm replace if below




                                                                                       7-6
