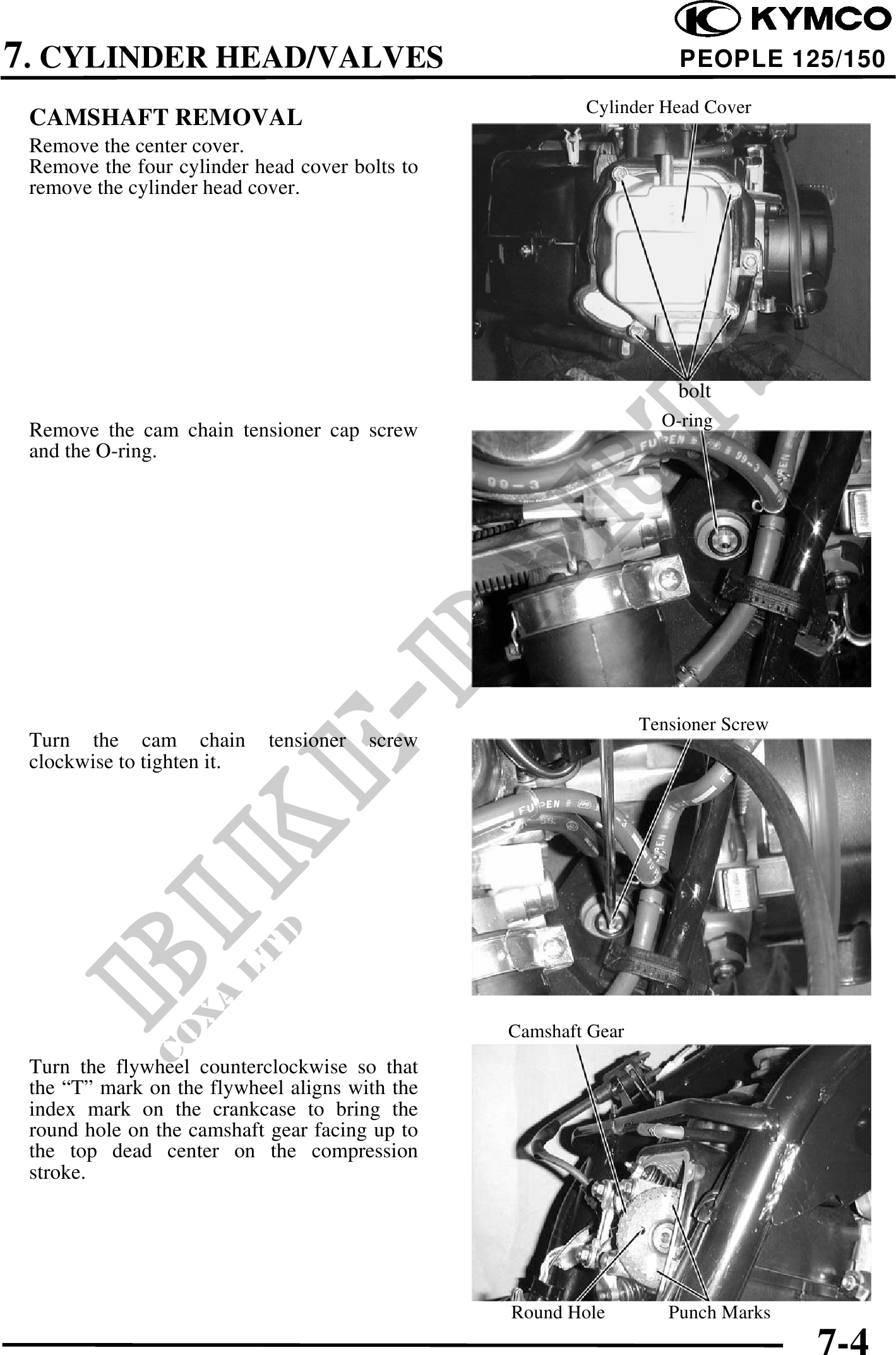

          7. CYLINDER HEAD/VALVES                                             PEOPLE 125/150
                                                        Cylinder Head Cover
 CAMSHAFT REMOVAL
 Remove the center cover.
 Remove the four cylinder head cover bolts to
 remove the cylinder head cover.




                                                                    bolt
                                                                  O-ring
 Remove the cam chain tensioner cap screw
 and the O-ring.




                                                                Tensioner Screw
 Turn the cam chain         tensioner   screw
 clockwise to tighten it.




                                                Camshaft Gear
 Turn the flywheel counterclockwise so that
 the "T" mark on the flywheel aligns with the
 index mark on the crankcase to bring the
 round hole on the camshaft gear facing up to
 the top dead center on the compression
 stroke.




                                                Round Hole         Punch Marks
                                                                                  7-4
