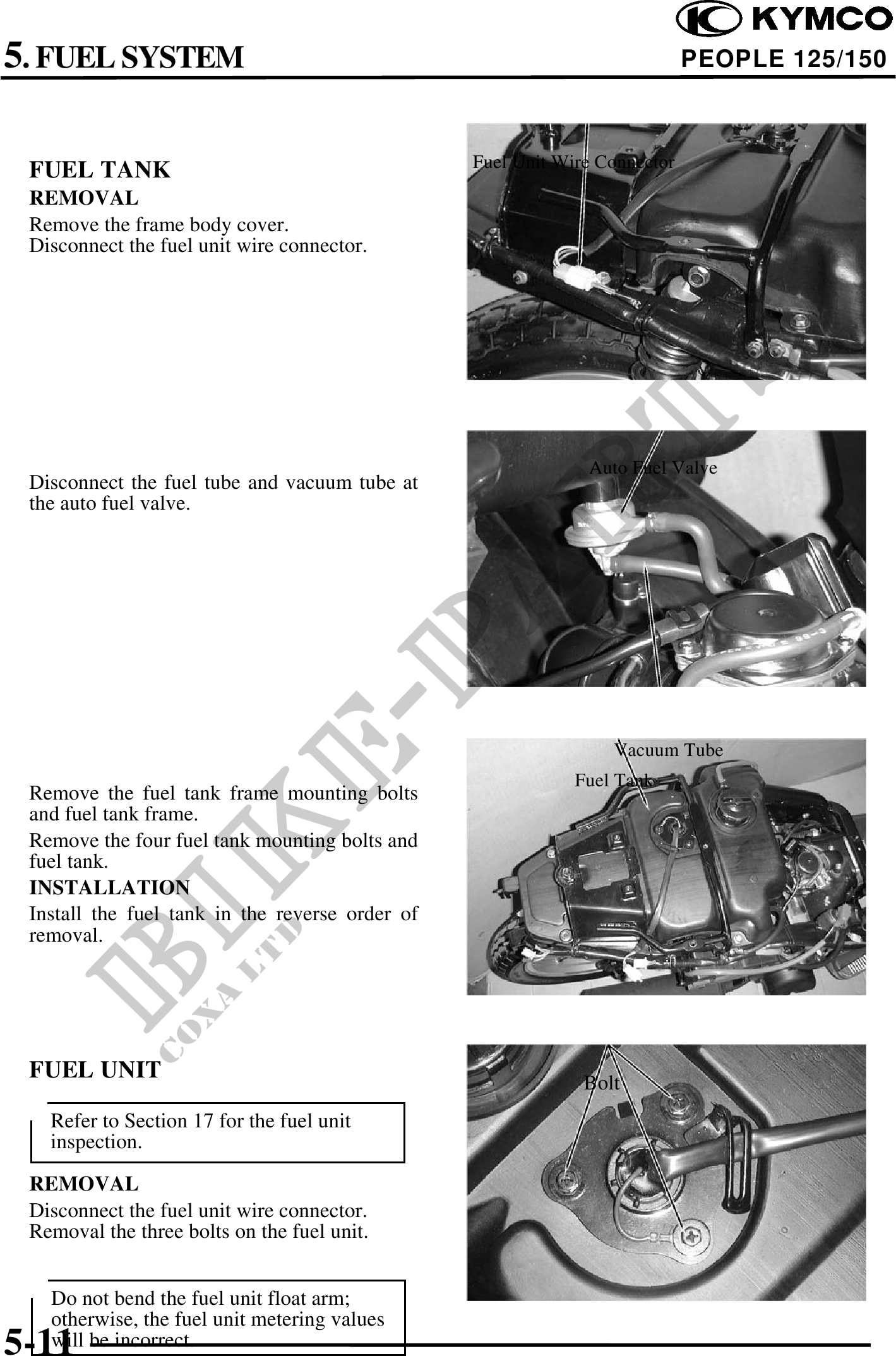

5. FUEL SYSTEM PEOPLE 125/150 Fuel Unit Wire Connector FUEL TANK REMOVAL Remove the frame body cover. Disconnect the fuel unit wire connector. Auto Fuel Valve Disconnect the fuel tube and vacuum tube at the auto fuel valve. Vacuum Tube Fuel Tank Remove the fuel tank frame mounting bolts and fuel tank frame. Remove the four fuel tank mounting bolts and fuel tank. INSTALLATION Install the fuel tank in the reverse order of removal. FUEL UNIT Bolt Refer to Section 17 for the fuel unit inspection. REMOVAL Disconnect the fuel unit wire connector. Removal the three bolts on the fuel unit. Do not bend the fuel unit float arm; otherwise, the fuel unit metering values 5-11 will be incorrect.
