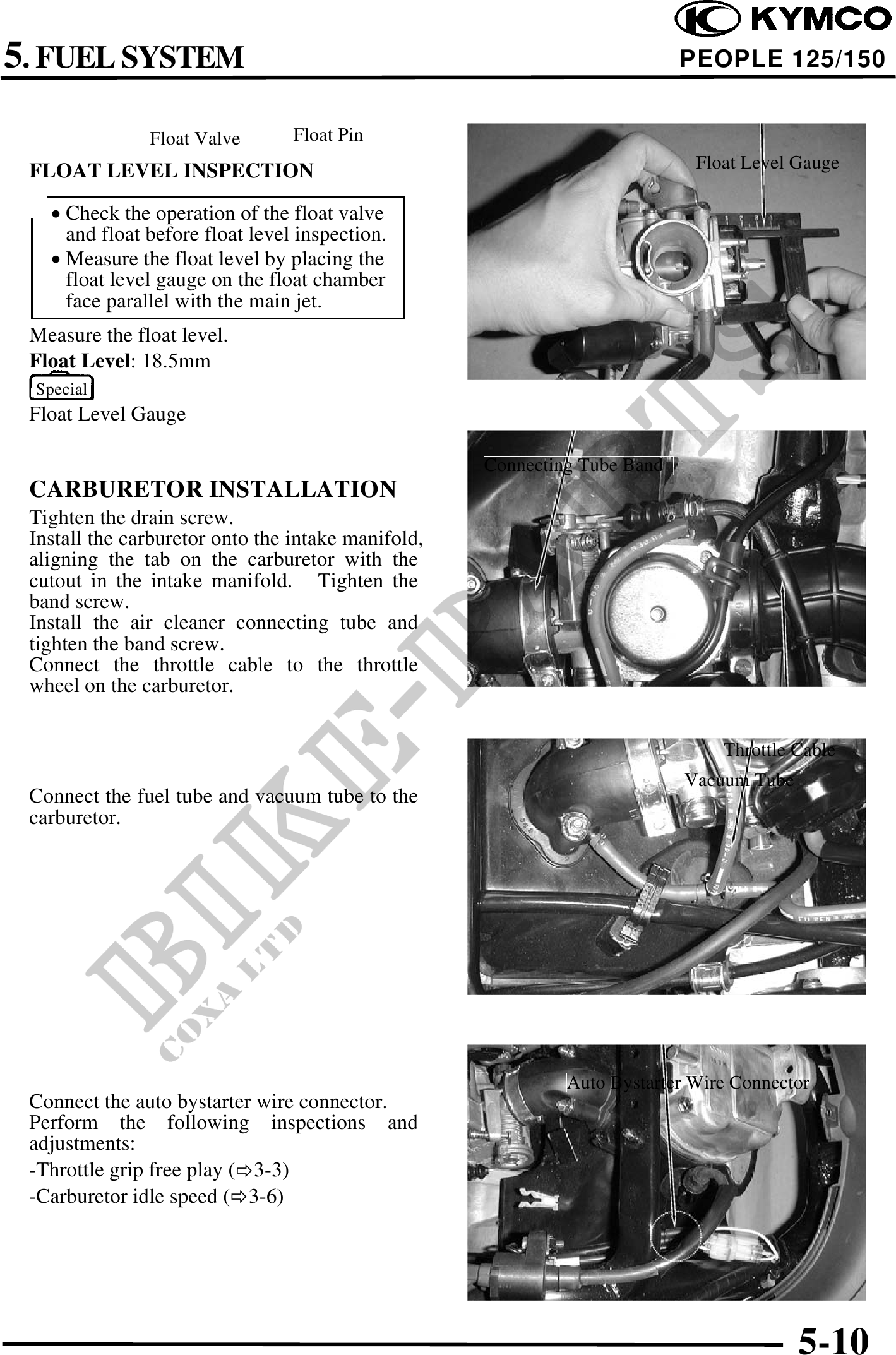

5. FUEL SYSTEM PEOPLE 125/150
Float Valve Float Pin
FLOAT LEVEL INSPECTION Float Level Gauge
· Check the operation of the float valve
and float before float level inspection.
· Measure the float level by placing the
float level gauge on the float chamber
face parallel with the main jet.
Measure the float level.
Float Level: 18.5mm
Special
Float Level Gauge
Connecting Tube Band
CARBURETOR INSTALLATION
Tighten the drain screw.
Install the carburetor onto the intake manifold,
aligning the tab on the carburetor with the
cutout in the intake manifold. Tighten the
band screw.
Install the air cleaner connecting tube and
tighten the band screw.
Connect the throttle cable to the throttle
wheel on the carburetor.
Throttle Cable
Vacuum Tube
Connect the fuel tube and vacuum tube to the
carburetor.
Auto Bystarter Wire Connector
Connect the auto bystarter wire connector.
Perform the following inspections and
adjustments:
-Throttle grip free play ( 3-3)
-Carburetor idle speed ( 3-6)
5-10
