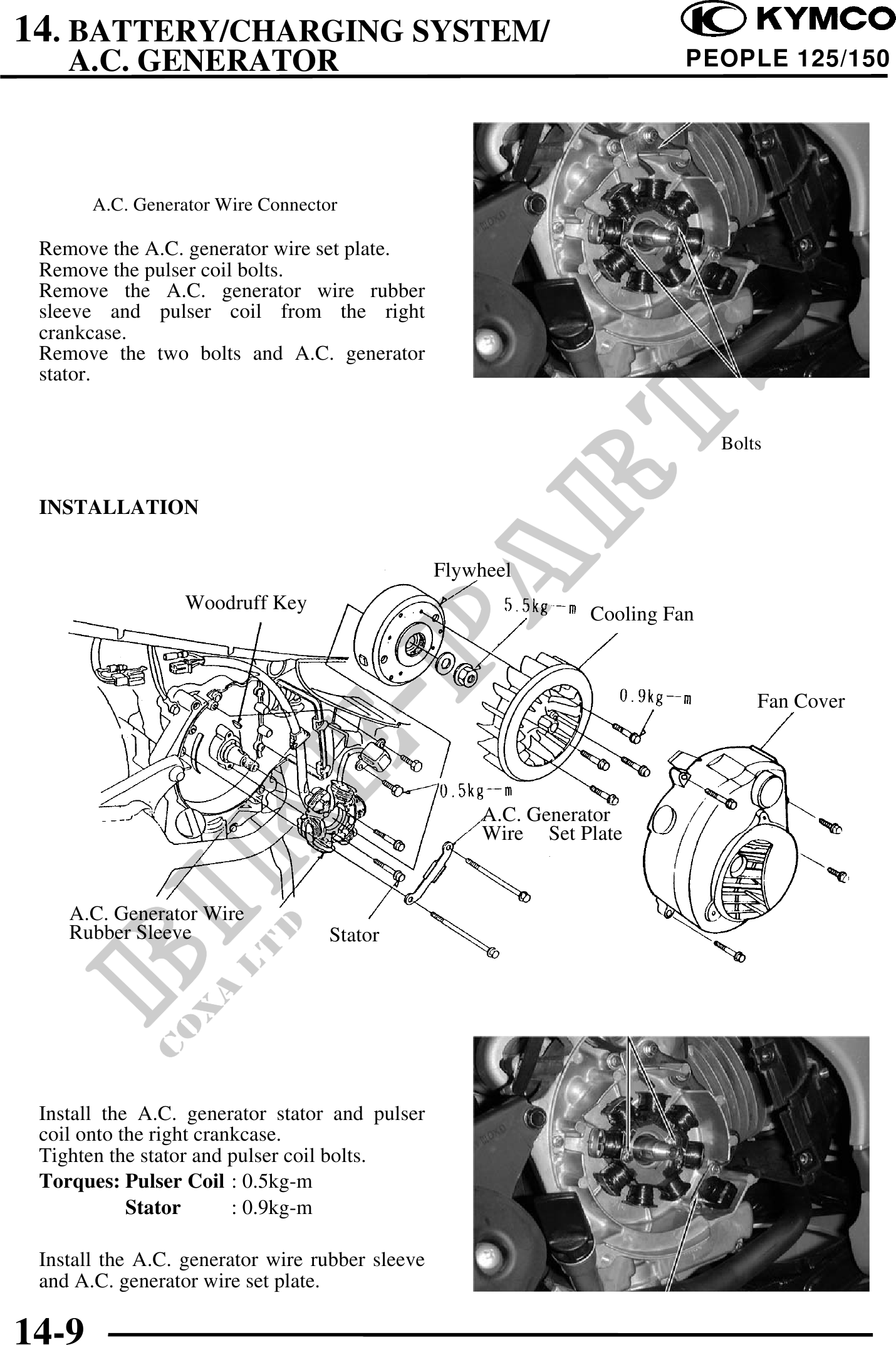

          14. BATTERY/CHARGING SYSTEM/
    A.C. GENERATOR                                                        PEOPLE 125/150


                                                                        Wire Set Plate

       A.C. Generator Wire Connector

 Remove the A.C. generator wire set plate.
 Remove the pulser coil bolts.
 Remove the A.C. generator wire rubber
 sleeve and pulser coil from the right
 crankcase.
 Remove the two bolts and A.C. generator
 stator.


                                                                               Bolts


 INSTALLATION

                                                 Flywheel
                  Woodruff Key
                                                               Cooling Fan



                                                                                   Fan Cover




                                                     A.C. Generator
                                                     Wire Set Plate


    A.C. Generator Wire
    Rubber Sleeve                  Stator




 Install the A.C. generator stator and pulser
 coil onto the right crankcase.
 Tighten the stator and pulser coil bolts.
                                                                Bolts
 Torques: Pulser Coil : 0.5kg-m
            Stator       : 0.9kg-m

 Install the A.C. generator wire rubber sleeve
 and A.C. generator wire set plate.

14-9
