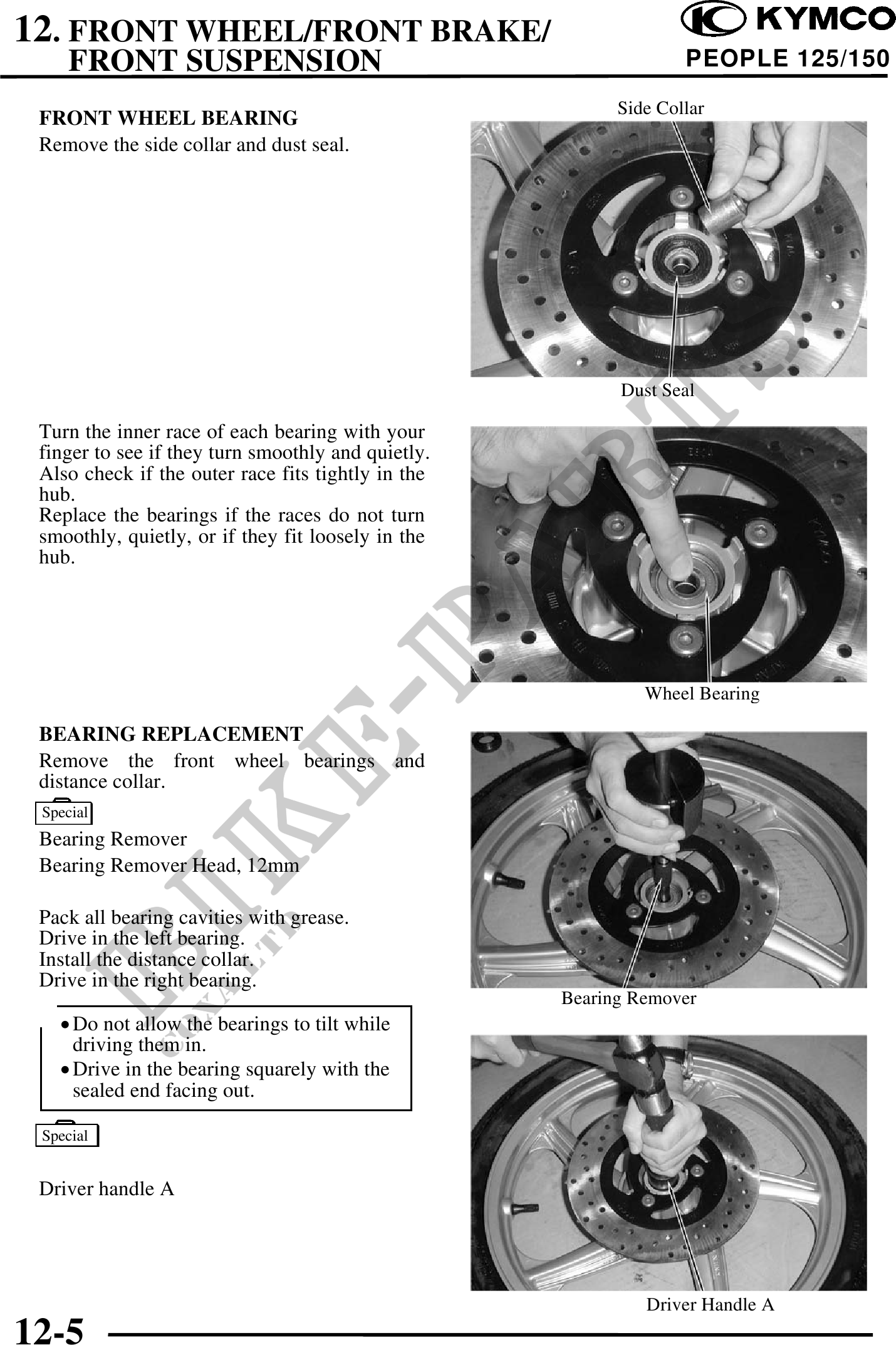

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION PEOPLE 125/150
Side Collar
FRONT WHEEL BEARING
Remove the side collar and dust seal.
Dust Seal
Turn the inner race of each bearing with your
finger to see if they turn smoothly and quietly.
Also check if the outer race fits tightly in the
hub.
Replace the bearings if the races do not turn
smoothly, quietly, or if they fit loosely in the
hub.
Wheel Bearing
BEARING REPLACEMENT
Remove the front wheel bearings and
distance collar.
Special
Bearing Remover
Bearing Remover Head, 12mm
Pack all bearing cavities with grease.
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
Bearing Remover
· Do not allow the bearings to tilt while
driving them in.
· Drive in the bearing squarely with the
sealed end facing out.
Special
Driver handle A
Driver Handle A
12-5
