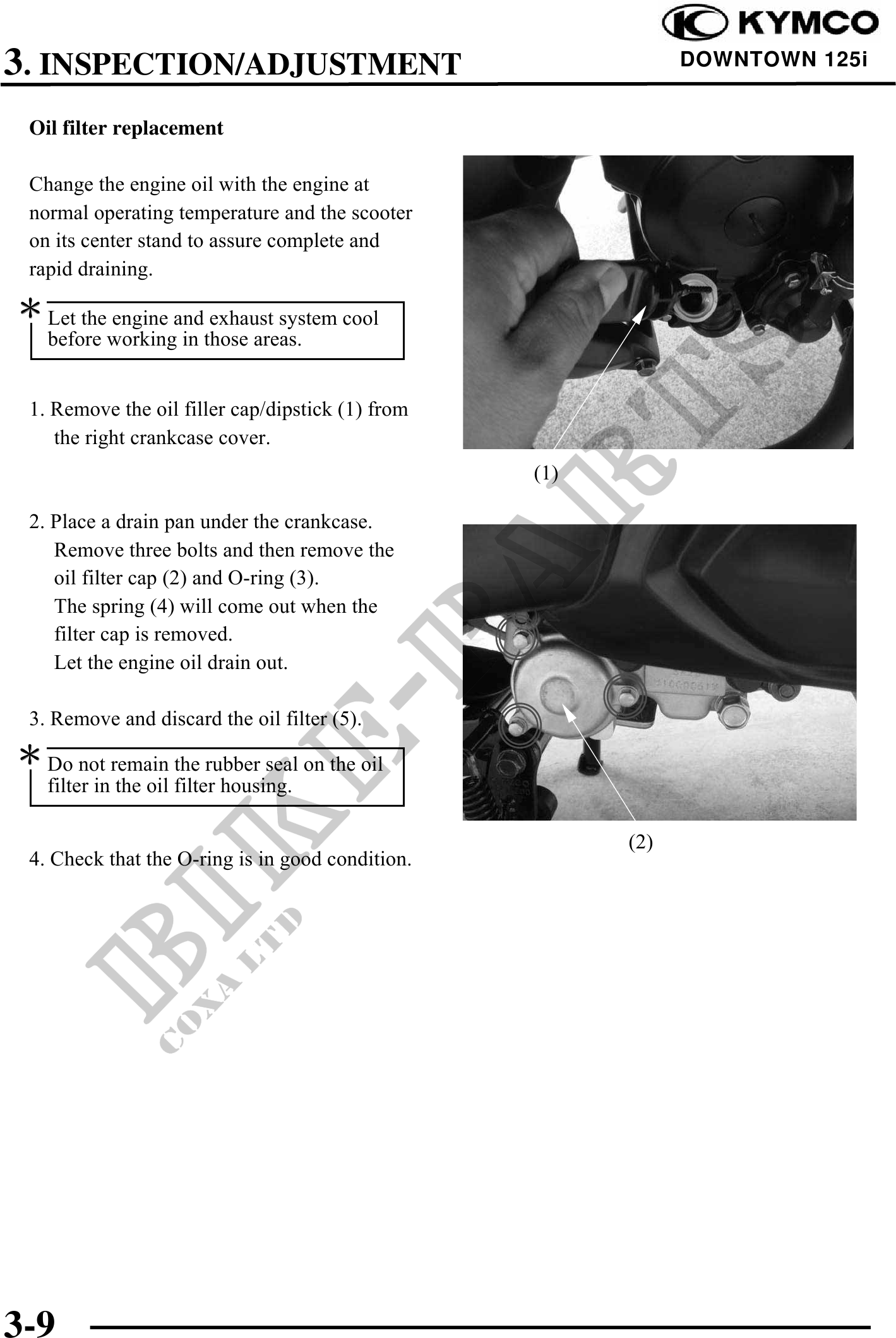

3. INSPECTION/ADJUSTMENT DOWNTOWN 125i
Oil filter replacement
Change the engine oil with the engine at
normal operating temperature and the scooter
on its center stand to assure complete and
rapid draining.
Let the engine and exhaust system cool
before working in those areas.
1. Remove the oil filler cap/dipstick (1) from
the right crankcase cover.
(1)
2. Place a drain pan under the crankcase.
Remove three bolts and then remove the
oil filter cap (2) and O-ring (3).
The spring (4) will come out when the
filter cap is removed.
Let the engine oil drain out.
3. Remove and discard the oil filter (5).
Do not remain the rubber seal on the oil
filter in the oil filter housing.
(2)
4. Check that the O-ring is in good condition.
3-9
