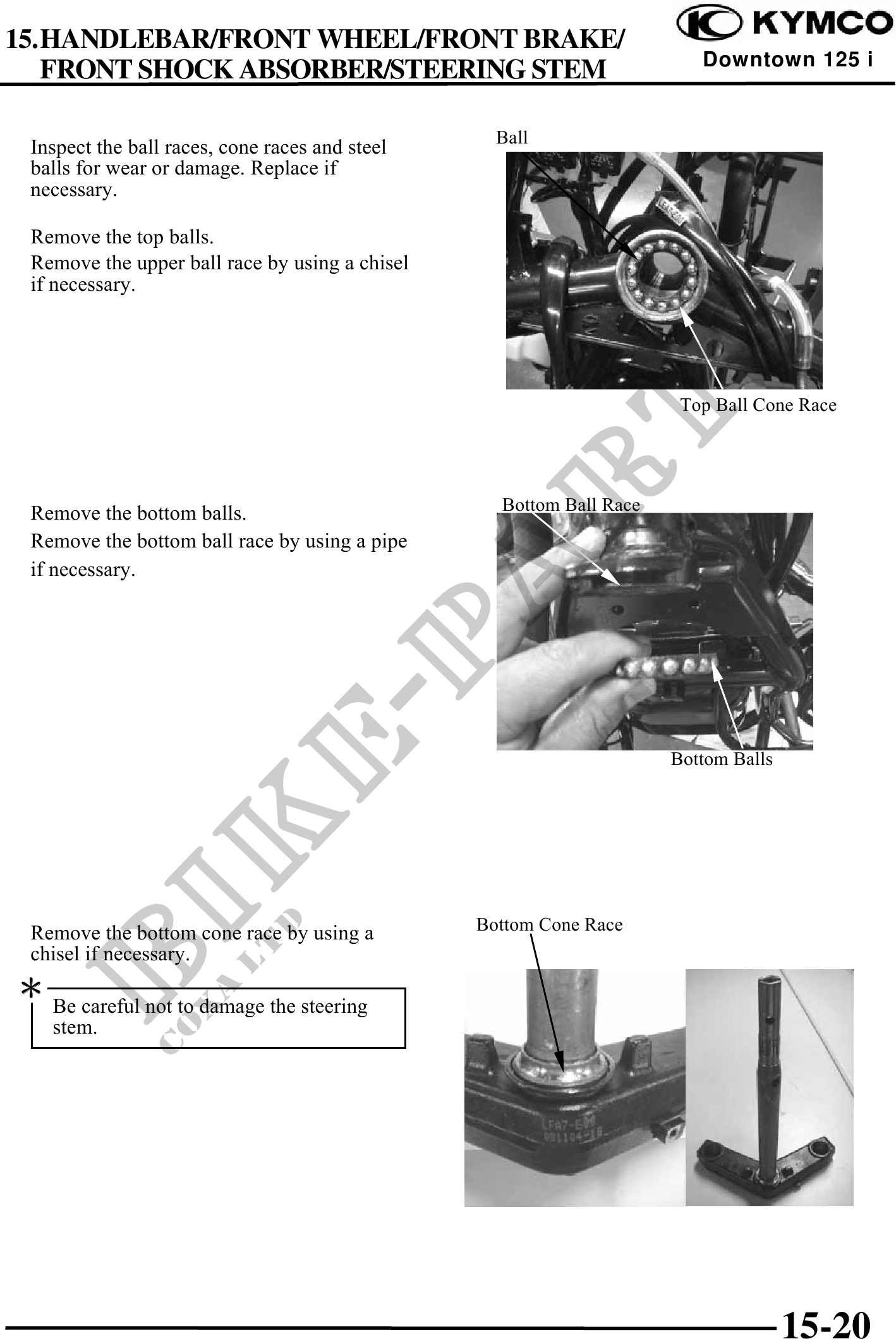

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                                        Downtown 125 i
   FRONT SHOCK ABSORBER/STEERING STEM

                                                  Ball
 Inspect the ball races, cone races and steel
 balls for wear or damage. Replace if
 necessary.

 Remove the top balls.
 Remove the upper ball race by using a chisel
 if necessary.




                                                                      Top Ball Cone Race




 Remove the bottom balls.                         Bottom Ball Race
 Remove the bottom ball race by using a pipe
 if necessary.




                                                                     Bottom Balls




 Remove the bottom cone race by using a         Bottom Cone Race
 chisel if necessary.
 Be careful not to damage the steering
    stem.




                                                                                    15-20
