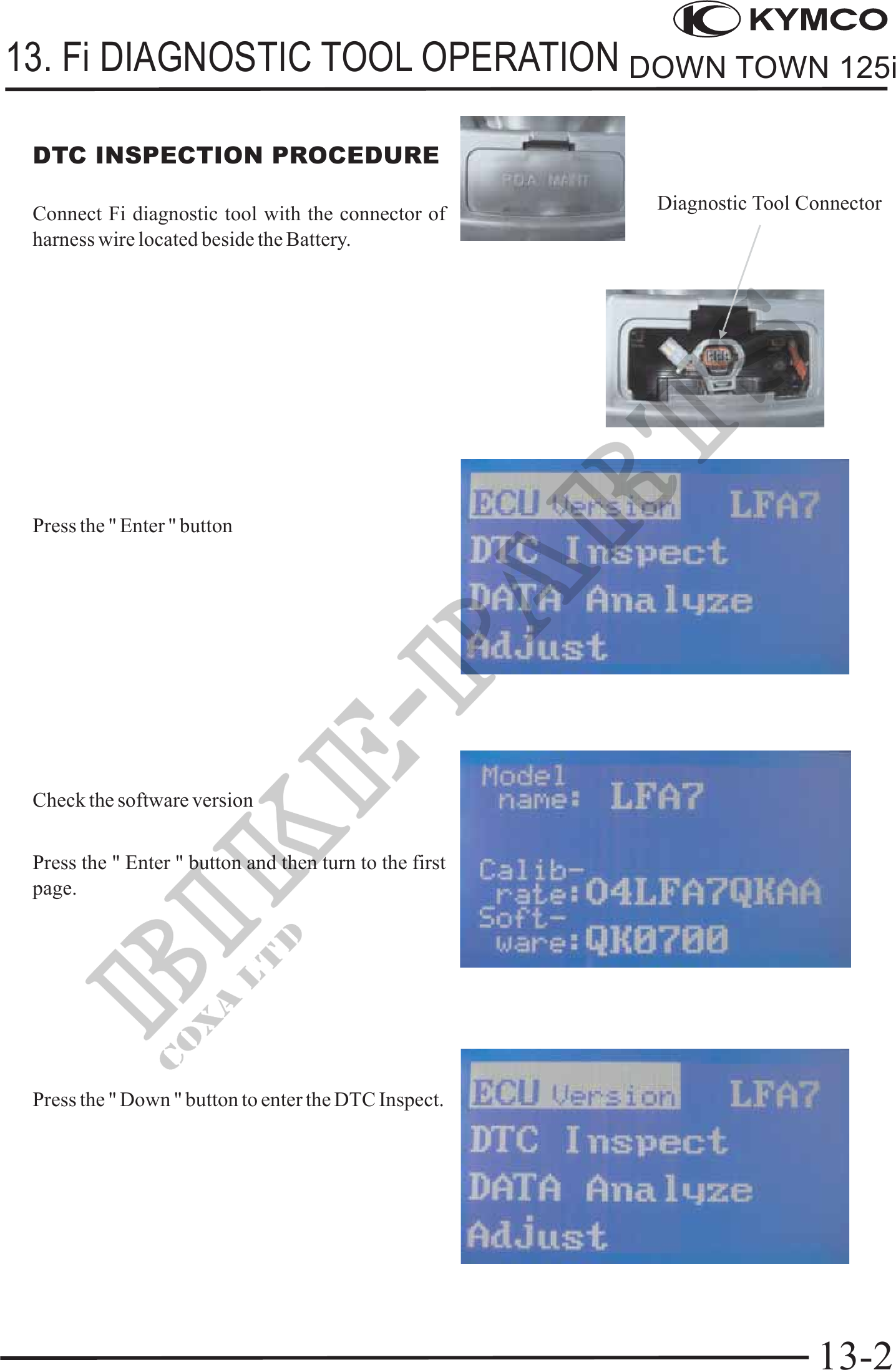

          13. Fi DIAGNOSTIC TOOL OPERATION DOWN TOWN 125i

 DTC INSPECTION PROCEDURE

 Connect Fi diagnostic tool with the connector of        Diagnostic Tool Connector
 harness wire located beside the Battery.




 Press the " Enter " button




 Check the software version


 Press the " Enter " button and then turn to the first
 page.




 Press the " Down " button to enter the DTC Inspect.




                                                                          13-2
