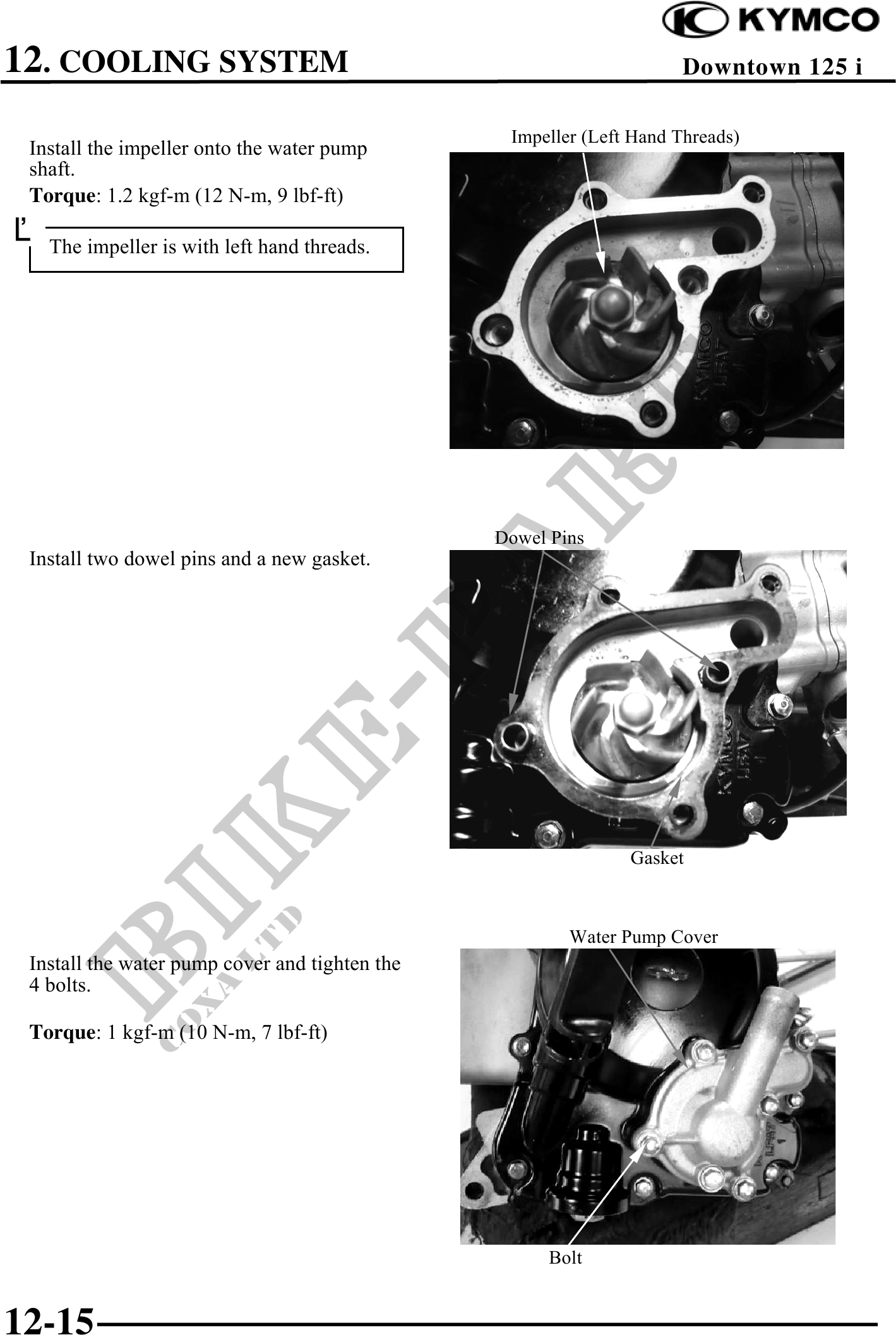

12. COOLING SYSTEM Downtown 125 i
Impeller (Left Hand Threads)
Install the impeller onto the water pump
shaft.
Torque: 1.2 kgf-m (12 N-m, 9 lbf-ft)
The impeller is with left hand threads.
Dowel Pins
Install two dowel pins and a new gasket.
Gasket
Water Pump Cover
Install the water pump cover and tighten the
4 bolts.
Torque: 1 kgf-m (10 N-m, 7 lbf-ft)
Bolt
12-15
