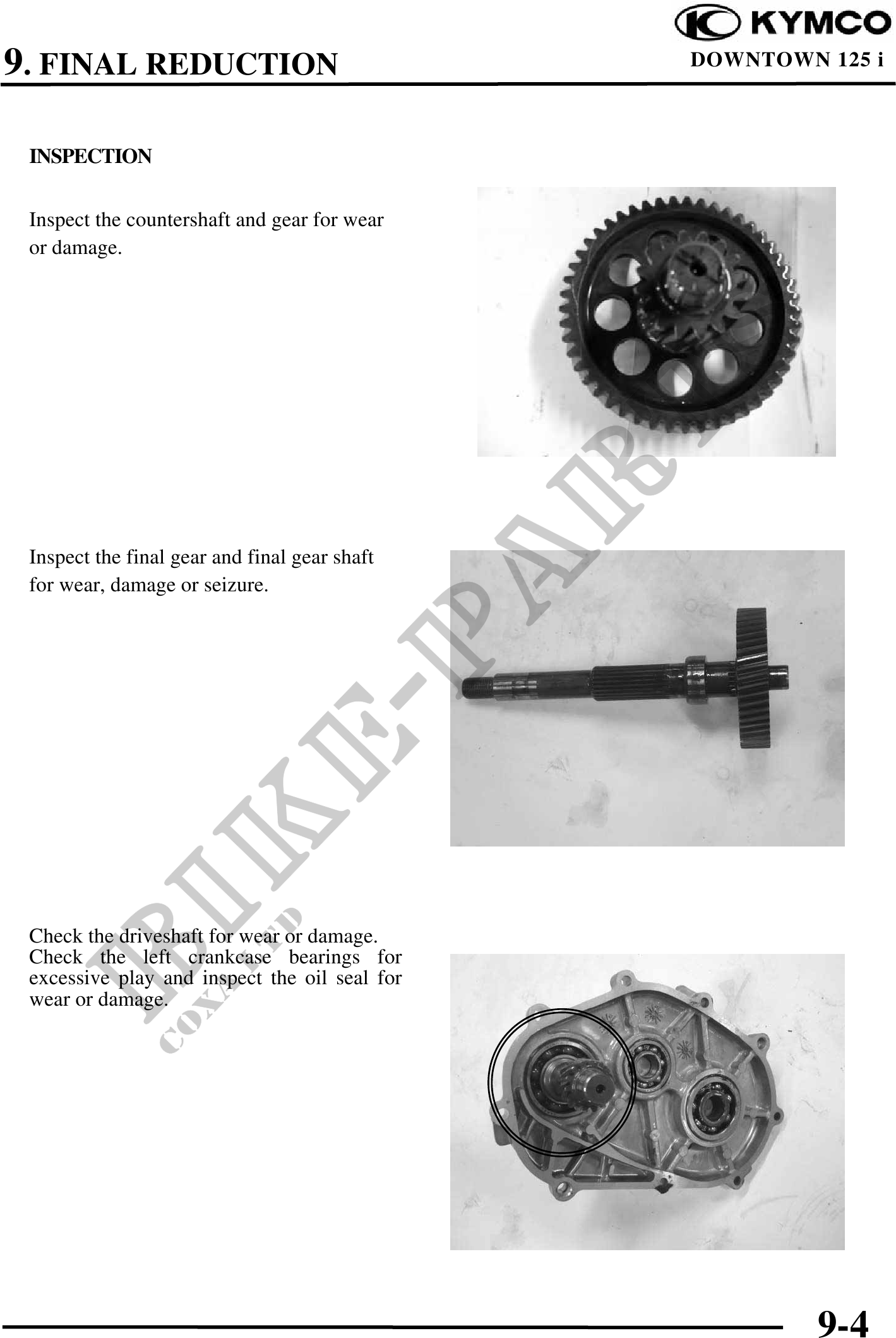

          9. FINAL REDUCTION                             DOWNTOWN 125 i



 INSPECTION


 Inspect the countershaft and gear for wear
 or damage.




 Inspect the final gear and final gear shaft
 for wear, damage or seizure.




 Check the driveshaft for wear or damage.
 Check the left crankcase bearings for
 excessive play and inspect the oil seal for
 wear or damage.




                                                        9-4
