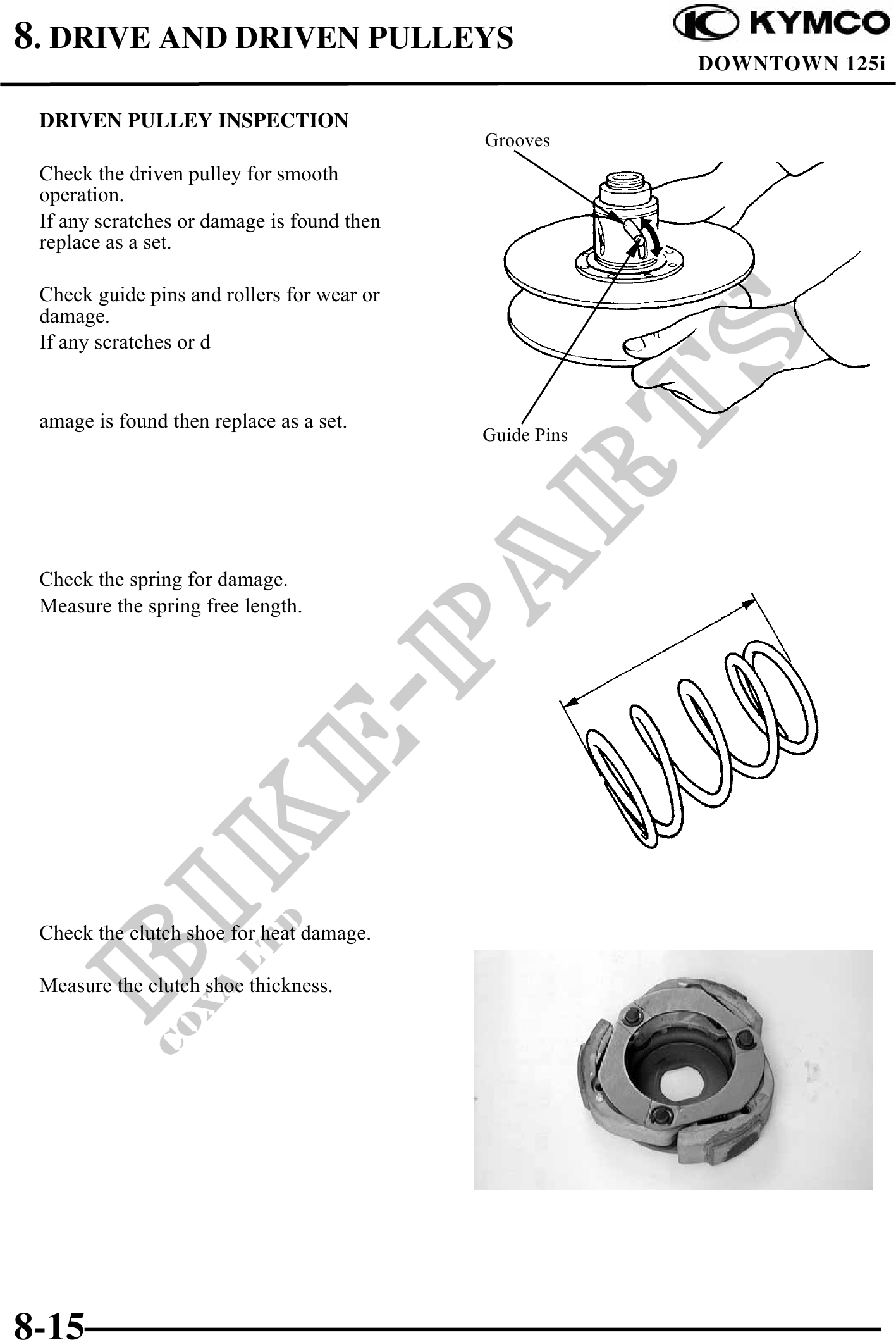

          8. DRIVE AND DRIVEN PULLEYS
                                                         DOWNTOWN 125i

 DRIVEN PULLEY INSPECTION
                                            Grooves
 Check the driven pulley for smooth
 operation.
 If any scratches or damage is found then
 replace as a set.

 Check guide pins and rollers for wear or
 damage.
 If any scratches or d


 amage is found then replace as a set.
                                            Guide Pins




 Check the spring for damage.
 Measure the spring free length.

               Ser




 Check the clutch shoe for heat damage.

 Measure the clutch shoe thickness.

 Service limit (A): 2 mm (0.08 in)




8-15
