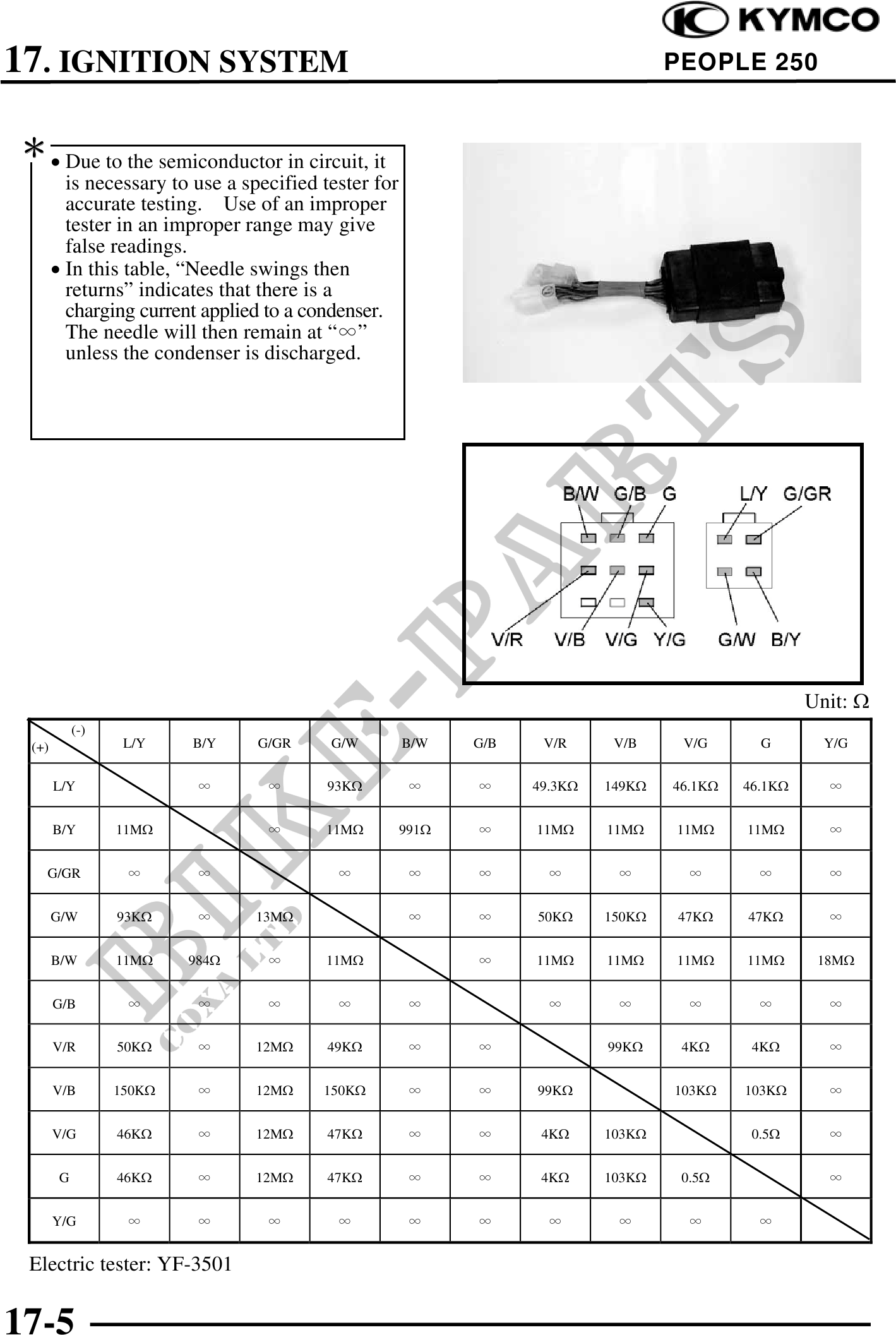

          17. IGNITION SYSTEM                                                              PEOPLE 250


· Due to the semiconductor in circuit, it
         is necessary to use a specified tester for
         accurate testing. Use of an improper
         tester in an improper range may give
         false readings.
       · In this table, "Needle swings then
         returns" indicates that there is a
         charging current applied to a condenser.
         The needle will then remain at ""
         unless the condenser is discharged.




                                                                                                 Unit:
            (-)
 (+)              L/Y    B/Y     G/GR     G/W         B/W   G/B    V/R    V/B     V/G     G       Y/G


       L/Y                               93K                      49.3K   149K   46.1K   46.1K


       B/Y        11M                    11M          991         11M     11M    11M     11M


   G/GR


       G/W        93K           13M                               50K     150K   47K     47K


       B/W        11M    984             11M                      11M     11M    11M     11M      18M


       G/B


       V/R        50K           12M      49K                              99K     4K     4K


       V/B        150K          12M      150K                     99K            103K    103K


       V/G        46K           12M      47K                      4K      103K           0.5


        G         46K           12M      47K                      4K      103K    0.5


       Y/G


 Electric tester: YF-3501


17-5
